REST APIでWowza Streaming EngineのApplicationを操作してみたよ

Last updated at Posted at 2021-02-19

はじめに

こんにちは。ブームにやや乗り遅れましたが呪術廻戦にハマってしまったstreampackのfadoです。華金は楽しみがいっぱいです。

さて、今までWowza Streaming Engineを使って作業している時は、管理画面(Wowza Streaming Engine Manager)にログインし、ポチポチしていました。それだと確かにGUIは楽なのですがAPIでの制御を必要とする業務があり、慌てて色々調べ始めると言ったことがありました。そこで今回の記事では、その経験を踏まえて、自分なりに理解したApplicationの作成やプロパティの追加などの作業について簡単に解説していきたいと思います。ちなみにApplicationとはメデイアストリーミングに関する様々な制御、プロパティを定義する、Wowza Streaming Engineにおいて核となる部分です。作成する画面はこのような感じですね。

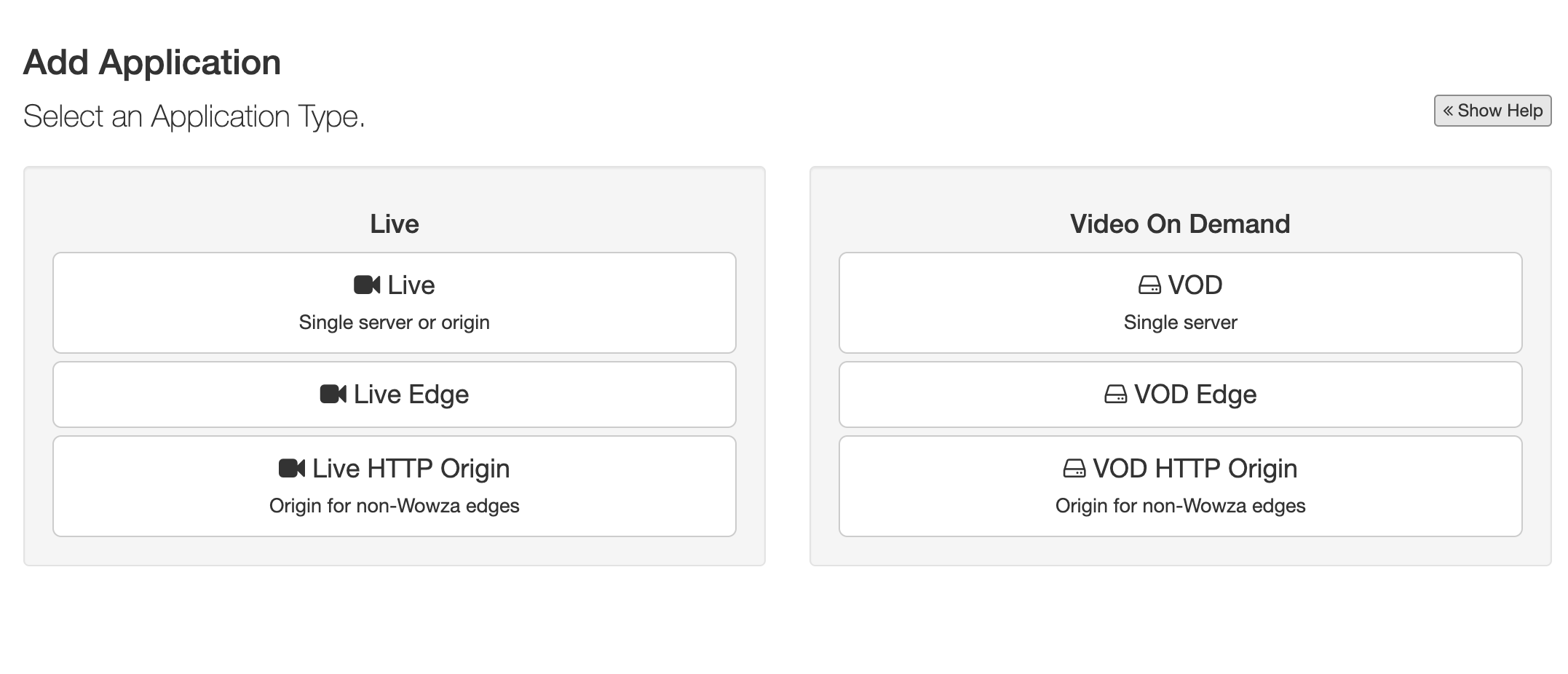

スクリーンショット 2021-02-19 3.52.21.png

注意事項

  • Wowza Streaming Engine(以下Wowza)
  • サーバーはAWS環境で構築したもの
  • バージョン4.8.9 (build 20201221171606)
  • 認証方法はbasicです
  • Wowzaについてある程度知見のある方々が対象です。
  • WowzaのREST APIインターフェースはデフォルトで8087ポート/tcpを利用しているため、SGやFirewallを予め開放して下さい。

手順

Applicationを作成

Application Name(appName): livetest
Application Type: Live HTTP Origin
Server Name(serverName): _defaultServer_
VHost Name(vhostName): _defaultVHost_

  • メソード

  • POST

  • パス

  • /v2/servers/{serverName}/vhosts/{vhostName}/applications/{appName}

  • リクエスト

$ curl -u "xxxx:yyyy" -X POST -H 'Accept:application/json; charset=utf-8' -H 'Content-Type:application/json; charset=utf-8'  http://XXX.XXX.XXX.XXX:8087/v2/servers/_serverName_/vhosts/_defaultVHost_/applications -d @livetest.json
  • レスポンス
{"success":true,"message":"Application (livetest) created successfully.","data":null}
livetest.json
{
  "name": "livetest",
  "version": "",
  "serverName": "_defaultServer_",
  "appType": "LiveHTTPOrigin",
  "applicationTimeout": 0,
  "pingTimeout": 0,
  "clientStreamReadAccess": "*",
  "clientStreamWriteAccess": "*",
  "avSyncMethod": "senderreport",
  "maxRTCPWaitTime": 12000,
  "httpCORSHeadersEnabled": true,
  "httpStreamers": [
    "sanjosestreaming",
    "cupertinostreaming",
    "smoothstreaming",
    "mpegdashstreaming"
  ],
  "mediaReaderRandomAccessReaderClass": "",
  "httpOptimizeFileReads": false,
  "mediaReaderBufferSeekIO": false,
  "captionLiveIngestType": "",
  "vodTimedTextProviders": [
    "vodcaptionprovidermp4_3gpp"
  ],
  "securityConfig": {
    "serverName": "_defaultServer_",
    "secureTokenVersion": 0,
    "clientStreamWriteAccess": "*",
    "publishRequirePassword": true,
    "publishPasswordFile": "",
    "publishRTMPSecureURL": "",
    "publishIPBlackList": "",
    "publishIPWhiteList": "",
    "publishBlockDuplicateStreamNames": false,
    "publishValidEncoders": "",
    "publishAuthenticationMethod": "digest",
    "playMaximumConnections": 0,
    "playRequireSecureConnection": false,
    "secureTokenSharedSecret": "",
    "secureTokenUseTEAForRTMP": false,
    "secureTokenIncludeClientIPInHash": false,
    "secureTokenHashAlgorithm": "",
    "secureTokenQueryParametersPrefix": "",
    "secureTokenOriginSharedSecret": "",
    "playIPBlackList": "",
    "playIPWhiteList": "",
    "playAuthenticationMethod": "none"
  },
  "streamConfig": {
    "serverName": "_defaultServer_",
    "streamType": "live",
    "storageDir": "${com.wowza.wms.context.VHostConfigHome}/content",
    "createStorageDir": false,
    "storageDirExists": true,
    "keyDir": "${com.wowza.wms.context.VHostConfigHome}/keys",
    "liveStreamPacketizer": [
      "cupertinostreamingpacketizer",
      "mpegdashstreamingpacketizer",
      "sanjosestreamingpacketizer",
      "smoothstreamingpacketizer"
    ],
    "httpRandomizeMediaName": true
  },
  "dvrConfig": {
    "serverName": "_defaultServer_",
    "licenseType": "Subscription",
    "inUse": false,
    "dvrEnable": false,
    "windowDuration": 0,
    "storageDir": "${com.wowza.wms.context.VHostConfigHome}/dvr",
    "archiveStrategy": "append",
    "dvrOnlyStreaming": false,
    "startRecordingOnStartup": true,
    "dvrEncryptionSharedSecret": "",
    "dvrMediaCacheEnabled": false,
    "httpRandomizeMediaName": false
  },
  "drmConfig": {
    "serverName": "_defaultServer_",
    "licenseType": "Subscription",
    "inUse": false,
    "ezDRMUsername": "",
    "ezDRMPassword": "",
    "buyDRMUserKey": "",
    "buyDRMProtectSmoothStreaming": false,
    "buyDRMProtectCupertinoStreaming": false,
    "buyDRMProtectMpegDashStreaming": false,
    "verimatrixProtectCupertinoStreaming": false,
    "verimatrixCupertinoKeyServerIpAddress": "",
    "verimatrixCupertinoKeyServerPort": 0,
    "verimatrixCupertinoVODPerSessionKeys": false,
    "verimatrixProtectSmoothStreaming": false,
    "verimatrixSmoothKeyServerIpAddress": "",
    "verimatrixSmoothKeyServerPort": 0,
    "cupertinoEncryptionAPIBased": false
  },
  "transcoderConfig": {
    "serverName": "_defaultServer_",
    "available": true,
    "licensed": true,
    "licenses": -1,
    "licensesInUse": 0,
    "templates": {
      "vhostName": "_defaultVHost_",
      "templates": [
        {
          "id": "audioonly",
          "href": "/v2/servers/_defaultServer_/vhosts/_defaultVHost_/applications/livetest/transcoder/templates/audioonly"
        },
        {
          "id": "transcode-h265",
          "href": "/v2/servers/_defaultServer_/vhosts/_defaultVHost_/applications/livetest/transcoder/templates/transcode-h265"
        },
        {
          "id": "transcode",
          "href": "/v2/servers/_defaultServer_/vhosts/_defaultVHost_/applications/livetest/transcoder/templates/transcode"
        },
        {
          "id": "transrate",
          "href": "/v2/servers/_defaultServer_/vhosts/_defaultVHost_/applications/livetest/transcoder/templates/transrate"
        }
      ]
    },
    "templatesInUse": "${SourceStreamName}.xml,transrate.xml",
    "profileDir": "${com.wowza.wms.context.VHostConfigHome}/transcoder/profiles",
    "templateDir": "${com.wowza.wms.context.VHostConfigHome}/transcoder/templates",
    "createTemplateDir": false
  },
  "webRTCConfig": {
    "serverName": "_defaultServer_",
    "enablePublish": false,
    "enablePlay": false,
    "enableQuery": false,
    "iceCandidateIpAddresses": "127.0.0.1,tcp,1935",
    "preferredCodecsAudio": "opus,pcmu,pcma",
    "preferredCodecsVideo": "vp8,h264",
    "debugLog": false
  },
  "modules": {
    "serverName": "_defaultServer_",
    "moduleList": [
      {
        "description": "Base",
        "name": "base",
        "order": 0,
        "class": "com.wowza.wms.module.ModuleCore"
      },
      {
        "description": "Client Logging",
        "name": "logging",
        "order": 1,
        "class": "com.wowza.wms.module.ModuleClientLogging"
      },
      {
        "description": "FLVPlayback",
        "name": "flvplayback",
        "order": 2,
        "class": "com.wowza.wms.module.ModuleFLVPlayback"
      },
      {
        "description": "Core Security Module for Applications",
        "name": "ModuleCoreSecurity",
        "order": 3,
        "class": "com.wowza.wms.security.ModuleCoreSecurity"
      },
      {
        "description": "Schedules streams and playlists.",
        "name": "streamPublisher",
        "order": 4,
        "class": "com.wowza.wms.plugin.streampublisher.ModuleStreamPublisher"
      }
    ]
  }
}

作成したApplicationの情報を取得

  • メソッド

  • GET

  • パス

  • /v2/servers/{serverName}/vhosts/{vhostName}/applications/{appName}

  • リクエスト

curl -u "xxxx:yyyy" -X GET -H 'Accept:application/json; charset=utf-8' -H 'Content-Type:application/json; charset=utf-8'  http://XXX.XXX.XXX.XXX:8087/v2/servers/_defaultServer_/vhosts/_defaultVHost_/applications/livetest
  • レスポンス
{"name":"livetest","version":"1613666179000","serverName":"_defaultServer_","appType":"LiveHTTPOrigin","applicationTimeout":0,"pingTimeout":0,"clientStreamReadAccess":"*","clientStreamWriteAccess":"*","avSyncMethod":"senderreport","maxRTCPWaitTime":12000,"httpCORSHeadersEnabled":true,"httpStreamers":["sanjosestreaming","cupertinostreaming","smoothstreaming","mpegdashstreaming"],"mediaReaderRandomAccessReaderClass":"","httpOptimizeFileReads":false,"mediaReaderBufferSeekIO":false,"captionLiveIngestType":"","vodTimedTextProviders":["vodcaptionprovidermp4_3gpp"],"securityConfig":{"serverName":"_defaultServer_","secureTokenVersion":0,"clientStreamWriteAccess":"*","publishRequirePassword":true,"publishPasswordFile":"","publishRTMPSecureURL":"","publishIPBlackList":"","publishIPWhiteList":"","publishBlockDuplicateStreamNames":false,"publishValidEncoders":"","publishAuthenticationMethod":"digest","playMaximumConnections":0,"playRequireSecureConnection":false,"secureTokenSharedSecret":"","secureTokenUseTEAForRTMP":false,"secureTokenIncludeClientIPInHash":false,"secureTokenHashAlgorithm":"","secureTokenQueryParametersPrefix":"","secureTokenOriginSharedSecret":"","playIPBlackList":"","playIPWhiteList":"","playAuthenticationMethod":"none"},"streamConfig":{"serverName":"_defaultServer_","streamType":"live","storageDir":"${com.wowza.wms.context.VHostConfigHome}/content","createStorageDir":false,"storageDirExists":true,"keyDir":"${com.wowza.wms.context.VHostConfigHome}/keys","liveStreamPacketizer":["cupertinostreamingpacketizer","mpegdashstreamingpacketizer","sanjosestreamingpacketizer","smoothstreamingpacketizer"],"httpRandomizeMediaName":true},"dvrConfig":{"serverName":"_defaultServer_","licenseType":"Subscription","inUse":false,"dvrEnable":false,"windowDuration":0,"storageDir":"${com.wowza.wms.context.VHostConfigHome}/dvr","archiveStrategy":"append","dvrOnlyStreaming":false,"startRecordingOnStartup":true,"dvrEncryptionSharedSecret":"","dvrMediaCacheEnabled":false,"httpRandomizeMediaName":false},"drmConfig":{"serverName":"_defaultServer_","licenseType":"Subscription","inUse":false,"ezDRMUsername":"","ezDRMPassword":"","buyDRMUserKey":"","buyDRMProtectSmoothStreaming":false,"buyDRMProtectCupertinoStreaming":false,"buyDRMProtectMpegDashStreaming":false,"verimatrixProtectCupertinoStreaming":false,"verimatrixCupertinoKeyServerIpAddress":"","verimatrixCupertinoKeyServerPort":0,"verimatrixCupertinoVODPerSessionKeys":false,"verimatrixProtectSmoothStreaming":false,"verimatrixSmoothKeyServerIpAddress":"","verimatrixSmoothKeyServerPort":0,"cupertinoEncryptionAPIBased":false},"transcoderConfig":{"serverName":"_defaultServer_","available":true,"licensed":true,"licenses":-1,"licensesInUse":0,"templates":{"vhostName":"_defaultVHost_","templates":[{"id":"audioonly","href":"/v2/servers/_defaultServer_/vhosts/_defaultVHost_/applications/livetest/transcoder/templates/audioonly"},{"id":"transcode-h265","href":"/v2/servers/_defaultServer_/vhosts/_defaultVHost_/applications/livetest/transcoder/templates/transcode-h265"},{"id":"transcode","href":"/v2/servers/_defaultServer_/vhosts/_defaultVHost_/applications/livetest/transcoder/templates/transcode"},{"id":"transrate","href":"/v2/servers/_defaultServer_/vhosts/_defaultVHost_/applications/livetest/transcoder/templates/transrate"},{"id":"mnetmulti-4k","href":"/v2/servers/_defaultServer_/vhosts/_defaultVHost_/applications/livetest/transcoder/templates/mnetmulti-4k"}]},"templatesInUse":"${SourceStreamName}.xml,transrate.xml","profileDir":"${com.wowza.wms.context.VHostConfigHome}/transcoder/profiles","templateDir":"${com.wowza.wms.context.VHostConfigHome}/transcoder/templates","createTemplateDir":false},"webRTCConfig":{"serverName":"_defaultServer_","enablePublish":false,"enablePlay":false,"enableQuery":false,"iceCandidateIpAddresses":"127.0.0.1,tcp,1935","preferredCodecsAudio":"opus,pcmu,pcma","preferredCodecsVideo":"vp8,h264","debugLog":false},"modules":{"serverName":"_defaultServer_","moduleList":[{"description":"Base","name":"base","order":0,"class":"com.wowza.wms.module.ModuleCore"},{"description":"Client Logging","name":"logging","order":1,"class":"com.wowza.wms.module.ModuleClientLogging"},{"description":"FLVPlayback","name":"flvplayback","order":2,"class":"com.wowza.wms.module.ModuleFLVPlayback"},{"description":"Core Security Module for Applications","name":"ModuleCoreSecurity","order":3,"class":"com.wowza.wms.security.ModuleCoreSecurity"},{"description":"Schedules streams and playlists.","name":"streamPublisher","order":4,"class":"com.wowza.wms.plugin.streampublisher.ModuleStreamPublisher"}]}}

このままだとレスポンスが1行に表示され、情報が多すぎて何が何だかわかりづらいのでいつもはjsonlintで見やすい形に整形させています。jsonlintはJSON構文のチェックにも役立ちます。

$ curl -s -u "xxxx:yyyy" -X GET -H 'Accept:application/json; charset=utf-8' -H 'Content-Type:application/json; charset=utf-8'  http://XXX.XXX.XXX.XXX:8087/v2/servers/_defaultServer_/vhosts/_defaultVHost_/applications/livetest | jsonlint

■ Mac環境ではbrew install jsonlint
■ npmが使える環境では npm install jsonlint -g
でインストール可能です。

Applicationの情報を更新

  • 例ではsmoothstreamingのパケタイザを削除します。

  • メソッド

  • PUT

  • パス

  • /v2/servers/{serverName}/vhosts/{vhostName}/applications/{appName}

  • リクエスト

$ curl -u "xxxx:yyyy" -X PUT -H 'Accept:application/json; charset=utf-8' -H 'Content-Type:application/json; charset=utf-8'  http://XXX.XXX.XXX.XXX:8087/v2/servers/_serverName_/vhosts/_defaultVHost_/applications/livetest -d @livetest-update.json
  • レスポンス
{"success":true,"message":"Saved","data":null}
livetest-update.json
{
  "name": "livetest",
  "version": "",
  "serverName": "_defaultServer_",
  "appType": "LiveHTTPOrigin",
  "maxRTCPWaitTime": 12000,
  "httpCORSHeadersEnabled": true,
  "streamConfig": {
    "serverName": "_defaultServer_",
    "streamType": "live",
    "storageDir": "${com.wowza.wms.context.VHostConfigHome}/content",
    "createStorageDir": false,
    "storageDirExists": true,
    "keyDir": "${com.wowza.wms.context.VHostConfigHome}/keys",
    "liveStreamPacketizer": [
      "cupertinostreamingpacketizer",
      "mpegdashstreamingpacketizer",
      "sanjosestreamingpacketizer"
    ],
    "httpRandomizeMediaName": true
  }
}

Applicationに詳細設定を追加

  • 例ではHLSのchunkプロパティの設定を有効にし、値を変更します。

    • cupertinoChunkDurationTarget
    • 6000

  • cupertinoMaxChunkCount

    • 20

  • cupertinoPlaylistChunkCount

    • 6

  • メソッド

  • PUT

  • パス

  • /v2/servers/{serverName}/vhosts/{vhostName}/applications/{appName}/adv

  • リクエスト:

$ curl -u "xxxx:yyyy" -X PUT -H 'Accept:application/json; charset=utf-8' -H 'Content-Type:application/json; charset=utf-8'  http://XXX.XXX.XXX.XXX:8087/v2/servers/_serverName_/vhosts/_defaultVHost_/applications/livetest/adv -d @livetest-adv.json
  • レスポンス:
{"success":true,"message":"Saved","data":null}
livetest-adv.json
{
  "version": "",
  "serverName": "_defaultServer_",
  "advancedSettings": [
    {
      "enabled": true,
      "canRemove": true,
      "name": "cupertinoChunkDurationTarget",
      "value": "6000",
      "defaultValue": "10000",
      "type": "Integer",
      "sectionName": "cupertinostreamingpacketizer",
      "section": "/Root/Application/LiveStreamPacketizer",
      "documented": true
    },
    {
      "enabled": true,
      "canRemove": true,
      "name": "cupertinoMaxChunkCount",
      "value": "20",
      "defaultValue": "10",
      "type": "Integer",
      "sectionName": "cupertinostreamingpacketizer",
      "section": "/Root/Application/LiveStreamPacketizer",
      "documented": true
    },
    {
      "enabled": true,
      "canRemove": true,
      "name": "cupertinoPlaylistChunkCount",
      "value": "6",
      "defaultValue": "9",
      "type": "Integer",
      "sectionName": "cupertinostreamingpacketizer",
      "section": "/Root/Application/LiveStreamPacketizer",
      "documented": true
    }
  ]
}

Applicationの詳細情報を取得

  • メソッド

  • GET

  • パス

  • /v2/servers/{serverName}/vhosts/{vhostName}/applications/{appName}/adv

  • リクエスト

$ curl -s -u "xxxx:yyyy" -X GET -H 'Accept:application/json; charset=utf-8' -H 'Content-Type:application/json; charset=utf-8'  http://XXX.XXX.XXX.XXX:8087/v2/servers/_defaultServer_/vhosts/_defaultVHost_/applications/livetest/adv |jsonlint
  • レスポンス

＊設定していない他のプロパティも取得しますのでかなり長い表示になります。

{
  "version": "1613667662000",
  "serverName": "_defaultServer_",
  "advancedSettings": [
    {
      "enabled": false,
      "canRemove": true,
      "name": "debugAACTimecodes",
      "value": "false",
      "defaultValue": "false",
      "type": "Boolean",
      "sectionName": "cupertinostreamingpacketizer",
      "section": "/Root/Application/LiveStreamPacketizer",
      "documented": true
    },
    {
      "enabled": false,
      "canRemove": true,
      "name": "debugMP3Timecodes",
      "value": "false",
      "defaultValue": "false",
      "type": "Boolean",
      "sectionName": "cupertinostreamingpacketizer",
      "section": "/Root/Application/LiveStreamPacketizer",
      "documented": true
    },

〜省略〜

Applicationを再起動

Applicationのプロパティ等を追加・更新した場合、Applicationの再起動が必要になります。

  • メソッド

  • PUT

  • パス

  • /v2/servers/{serverName}/vhosts/{vhostName}/applications/{appName}/actions/{action}

  • リクエスト

$ curl -u "xxxx:yyyy" -X PUT -H 'Accept:application/json; charset=utf-8' -H 'Content-Type:application/json; charset=utf-8'  http://XXX.XXX.XXX.XXX:8087/v2/servers/_defaultServer_/vhosts/_defaultVHost_/applications/livetest/actions/restart
  • レスポンス
{"success":true,"message":"Application (livetest) shutdown","data":null}

該当VHost配下に作成されたApplicationをリスト

  • メソッド
  • GET
  • パス
  • /v2/servers/{serverName}/vhosts/{vhostName}/applications
  • リクエスト
$ curl -s -u "xxxx:yyyy" -X GET -H 'Accept:application/json; charset=utf-8' -H 'Content-Type:application/json; charset=utf-8'  http://XXX.XXX.XXX.XXX:8087/v2/servers/_defaultServer_/vhosts/_defaultVHost_/applications | jsonlint
  • レスポンス
{
  "serverName": "_defaultServer_",
  "applications": [
    {
      "id": "live",
      "href": "/v2/servers/_defaultServer_/vhosts/_defaultVHost_/applications/live",
      "appType": "Live",
      "dvrEnabled": false,
      "drmEnabled": false,
      "transcoderEnabled": false,
      "streamTargetsEnabled": false
    },
    {
      "id": "livetest",
      "href": "/v2/servers/_defaultServer_/vhosts/_defaultVHost_/applications/livetest",
      "appType": "LiveHTTPOrigin",
      "dvrEnabled": false,
      "drmEnabled": false,
      "transcoderEnabled": false,
      "streamTargetsEnabled": false
    },
    {
      "id": "vod",
      "href": "/v2/servers/_defaultServer_/vhosts/_defaultVHost_/applications/vod",
      "appType": "VOD",
      "dvrEnabled": false,
      "drmEnabled": false,
      "transcoderEnabled": false,
      "streamTargetsEnabled": false
    }
  ]
}

Applicationを削除

  • メソッド
  • DELETE
  • パス
  • /v2/servers/{serverName}/vhosts/{vhostName}/applications/{appName}
  • リクエスト
$ curl -u "xxxx:yyyy" -X DELETE -H 'Accept:application/json; charset=utf-8' -H 'Content-Type:application/json; charset=utf-8'  http://XXX.XXX.XXX.XXX:8087/v2/servers/_defaultServer_/vhosts/_defaultVHost_/applications/livetest
  • レスポンス
{"success":true,"message":"Application (livetest) deleted successfully","data":null}

まとめ

如何でしょうか。Applicationの作成だけではなく、Stream FilesやSMIL Filesの作成・削除、Server Statusの取得、Serverチューニングまで簡単に制御できます。APIを活用すればAmazon API GatewayやAWS Lambdaとの連携も可能になり、あらゆる場面で細かいオペレーションまで行うことができます。機会があれば他の設定も紹介していけたらと思います。最後までお読みいただきありがとうございました！

参考文献

2
0
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
2
0

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
