東京大学大学院情報理工学系研究科 創造情報学専攻 2007年度冬 プログラミング試験

2007年度冬の院試の解答例です
※記載の内容は筆者が個人的に解いたものであり、正答を保証するものではなく、また東京大学及び本試験内容の提供に関わる組織とは無関係です。

出題テーマ

• 経路問題

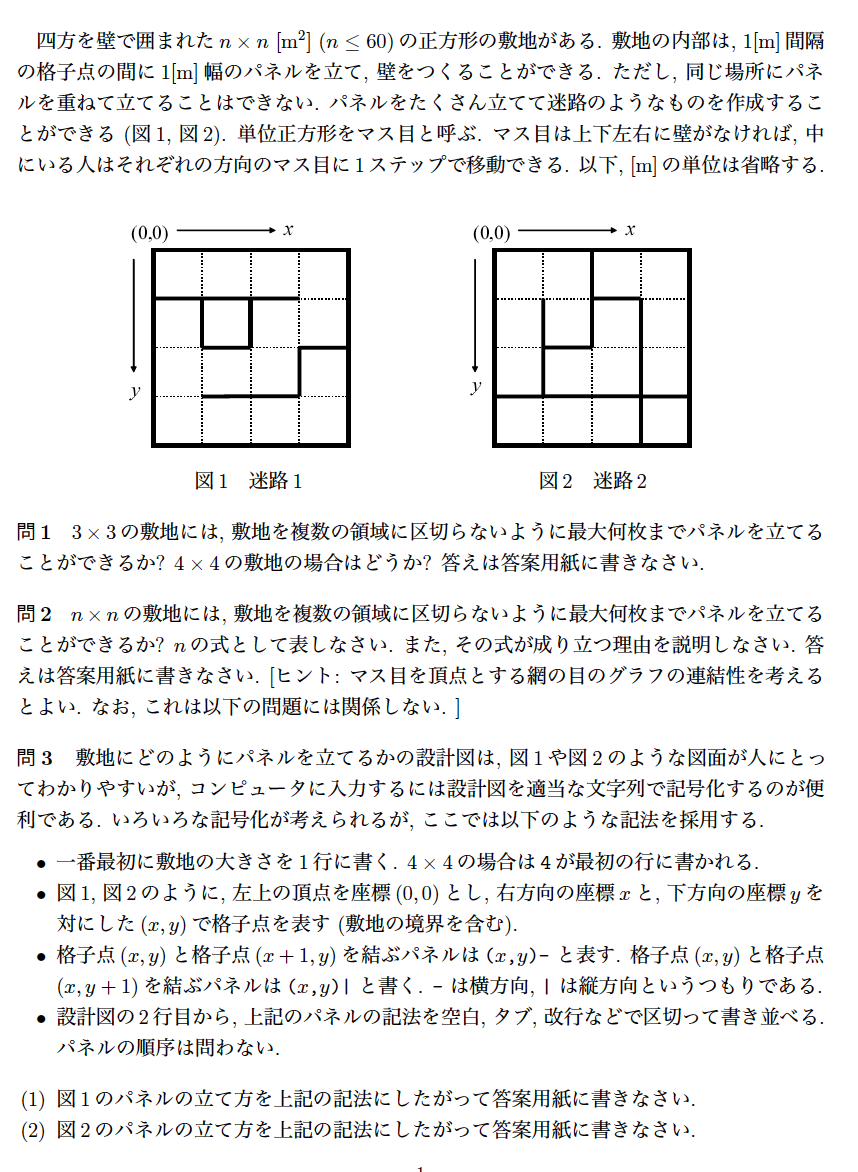

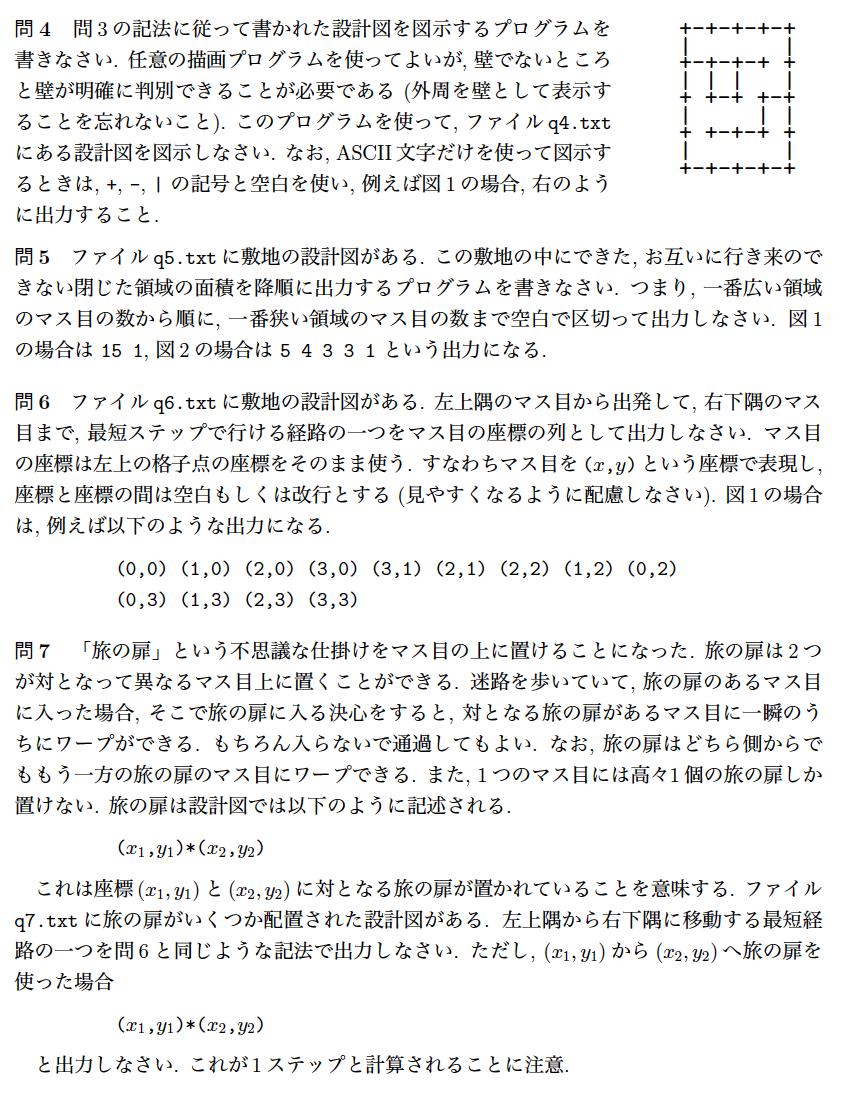

問題文

※ 東京大学側から指摘があった場合は問題文を削除いたします。

配布ファイル

※ 公開されていないので以下は筆者が適当に作ったものです

test001.txt（図１を想定）

4
(0,1)- (1,1)- (2,1)-
(1,1)| (2,1)|
(1,2)- (3,2)-
(3,2)|
(1,3)- (2,3)-

test002.txt（図２を想定）

4
(2,0)| (2,1)- (1,1)| (2,1)| (3,1)| (1,2)- (1,2)| (3,2)| (0,3)- (1,3)- (2,3)- (3,3)- (3,3)|

test003.txt（図２に扉を一個追加）

4
(2,0)| (2,1)- (1,1)| (2,1)| (3,1)| (1,2)- (1,2)| (3,2)| (0,3)- (1,3)- (2,3)- (3,3)- (3,3)| (0,2)*(3,3)

(1), (2)

• ヒントより区切りがない場合全マスを使った一本道となることがわかる
• このときパネルはこの一本道に沿うので一本道と同じ数立てる
  (n-1)**2


(3)

3-1

4
(0,1)- (1,1)- (2,1)-
(1,1)| (2,1)|
(1,2)- (3,2)-
(3,2)|
(1,3)- (2,3)-

3-2

4
(2,0)|
(2,1)-
(1,1)| (2,1)| (3,1)|
(1,2)-
(1,2)| (3,2)|
(0,3)- (1,3)- (2,3)- (3,3)-
(3,3)|

(4)

class Panel(object):
    def __init__(self, x, y, s):
        self.x = x
        self.y = y
        self.s = s
    def __repr__(self):
        return '({0},{1}): {2}'.format(self.x, self.y, self.s)

def format_txt(text):
    text = text.strip()
    txt_split_by_space = text.split()
    ret = []
    for txt_panel in txt_split_by_space:
        x = int(txt_panel[1])
        y = int(txt_panel[3])
        s = txt_panel[5]
        ret.append(Panel(x, y, s))
    return ret

def solve4(file_path):
    with open(file_path, 'r') as f:
        n = int(f.readline())
        row = 2 * n + 1
        maze =[[' ' for _ in range(row)] for _ in range(row)]
        # init maze
        # 格子点
        for i in range(len(maze)):
            for j in range(len(maze)):
                if ((i % 2 == 0) and (j % 2 == 0)):
                    maze[i][j] = '+'

        # 外枠
        for i in range(len(maze)):
            if (i % 2 == 1 and i > 0):
                maze[0][i] = '-'
                maze[len(maze)-1][i] = '-'
                maze[i][0] = '|'
                maze[i][len(maze)-1] = '|'

        data = f.readlines()
        panels = []
        for text in data:
            tmp = format_txt(text)
            panels.extend(tmp)
        for panel in panels:
            x = panel.x
            y = panel.y
            s = panel.s
            if s == '-':
                maze[y * 2][x * 2 + 1] = s
            if s == '|':
                maze[y * 2 + 1][x * 2] = s
        for maze_row in maze:
            row_txt = ''
            for mark in maze_row:
                row_txt += mark
        return maze

def printmaze(maze):
    for maze_row in maze:
      txt = ''
      for maze_mark in maze_row:
        txt += maze_mark
      print(txt)

(5)

from collections import deque

def init_maze2graph(maze):
    n = int((len(maze) - 1)/2)
    node_num = n**2
    graph = [[] for _ in range(node_num)]
    for i in range(n):
        for j in range(n):
            node_id = i * n + j
            y = i * 2 + 1
            x = j * 2 + 1
            if maze[y][x-1] == ' ': # left
                graph[node_id].append(node_id-1)
            if maze[y-1][x] == ' ': # up
                graph[node_id].append(node_id-n)
            if maze[y][x+1] == ' ': # right
                graph[node_id].append(node_id+1)
            if maze[y+1][x] == ' ': # down
                graph[node_id].append(node_id+n)
    return graph

def bfs(graph):
    node_num = len(graph)
    # 0: 未発見, 1: 発見, 2: 到達
    color = [0 for _ in range(node_num)]
    ret = []
    for start in range(node_num):
        if (color[start] == 2):
            continue
        q = deque([start])
        color[start] = 1
        area = 0
        while (len(q) > 0):
            u = q.popleft()
            color[u] = 2
            area += 1
            for v in graph[u]:
                if color[v] == 0:
                    q.append(v)
                    color[v] = 1
        ret.append(area)
    return ret

def solve5(file_path):
    maze = solve4(file_path)
    graph = init_maze2graph(maze)
    areas = bfs(graph)
    return sorted(areas)[::-1]

(6)

from collections import deque
from math import sqrt
def init_maze2graph(maze):
    n = int((len(maze) - 1) / 2)
    node_num = n**2
    graph = [[] for _ in range(node_num)]
    for i in range(n):
        for j in range(n):
            node_id = i * n + j
            y = i * 2 + 1
            x = j * 2 + 1
            if maze[y][x - 1] == ' ':  # left
                graph[node_id].append(node_id - 1)
            if maze[y - 1][x] == ' ':  # up
                graph[node_id].append(node_id - n)
            if maze[y][x + 1] == ' ':  # right
                graph[node_id].append(node_id + 1)
            if maze[y + 1][x] == ' ':  # down
                graph[node_id].append(node_id + n)
    return graph


def dijkstra(graph):
    node_num = len(graph)
    # 0: 未発見, 1: 発見, 2: 到達
    color = [0 for _ in range(node_num)]
    inf = int(1e9 + 7)
    dist = [inf for _ in range(node_num)]
    parent = [-1 for _ in range(node_num)]
    s = 0
    q = deque([s])
    color[s] = 1
    dist[s] = 0
    while (len(q) > 0):
        u = q.popleft()
        color[u] = 2
        for v in graph[u]:
            if color[v] == 2:
                continue
            if dist[v] > dist[u] + 1:
                dist[v] = dist[u] + 1
                parent[v] = u
                q.append(v)
                color[v] = 1

    return dist, parent

def node_id2cord(node_id, n):
    x = node_id % n
    y = int(node_id / n)
    return x, y

def solve6(file_path):
    maze = solve4(file_path)
    graph = init_maze2graph(maze)
    dist, parent = dijkstra(graph)
    node_num = len(graph)
    n = int((len(maze) - 1) / 2)
    if (dist[node_num - 1] > node_num):
        return "cant achieve"
    e = node_num - 1
    root = [e]
    while (e != 0):
        p = parent[e]
        root.append(p)
        e = p
    root = root[::-1]
    ret = '(0, 0)'
    for i in range(1, len(root)):
        node_id = root[i]
        x, y = node_id2cord(node_id, n)
        ret += ' ({0}, {1})'.format(x, y)
    return ret

(7)

class Node(object):
    def __init__(self, Id, x, y, isDoor):
        self.Id = Id
        self.x = x
        self.y = y
        self.isDoor = isDoor

    def __repr__(self):
        return 'id: {0}, ({1}, {2}), isDoor: {3}'.format(self.Id, self.x, self.y, self.isDoor)

class Door(object):
    def __init__(self, node1, node2):
        self.node1 = node1
        self.node2 = node2
    def __repr__(self):
        return '({0}, {1})'.format(self.node1, self.node2)

def cord2node_id(x, y, n):
    return x + y * n

def format_txt2(text, n):
    text = text.strip()
    txt_split_by_space = text.split()
    panels = []
    doors = []
    for txt_panel in txt_split_by_space:
        if ('*' in txt_panel):
            x1 = int(txt_panel[1])
            y1 = int(txt_panel[3])
            x2 = int(txt_panel[7])
            y2 = int(txt_panel[9])
            id1 = cord2node_id(x1, y1, n)
            id2 = cord2node_id(x2, y2, n)
            node1 = Node(id1, x1, y1, True)
            node2 = Node(id2, x2, y2, True)
            door = Door(node1, node2)
            doors.append(door)
        else:
            x = int(txt_panel[1])
            y = int(txt_panel[3])
            s = txt_panel[5]
            panels.append(Panel(x, y, s))
    return panels, doors

def inputdata(file_path):
    with open(file_path, 'r') as f:
        n = int(f.readline())
        row = 2 * n + 1
        maze =[[' ' for _ in range(row)] for _ in range(row)]
        # init maze
        # 格子点
        for i in range(len(maze)):
            for j in range(len(maze)):
                if ((i % 2 == 0) and (j % 2 == 0)):
                    maze[i][j] = '+'

        # 外枠
        for i in range(len(maze)):
            if (i % 2 == 1 and i > 0):
                maze[0][i] = '-'
                maze[len(maze)-1][i] = '-'
                maze[i][0] = '|'
                maze[i][len(maze)-1] = '|'

        data = f.readlines()
        panels = []
        doors = []
        for text in data:
            tmp_panels, tmp_doors = format_txt2(text, n)
            panels.extend(tmp_panels)
            doors.extend(tmp_doors)

        for panel in panels:
            x = panel.x
            y = panel.y
            s = panel.s
            if s == '-':
                maze[y * 2][x * 2 + 1] = s
            if s == '|':
                maze[y * 2 + 1][x * 2] = s
        for maze_row in maze:
            row_txt = ''
            for mark in maze_row:
                row_txt += mark
        return n, maze, doors

def init_graph(n, maze, doors):
    node_num = n**2
    graph = [[] for _ in range(node_num)]
    for i in range(n):
        for j in range(n):
            node_id = i * n + j
            y = i * 2 + 1
            x = j * 2 + 1
            if maze[y][x - 1] == ' ':  # left
                node = Node(node_id - 1, j - 1, i, False)
                graph[node_id].append(node)
            if maze[y - 1][x] == ' ':  # up
                node = Node(node_id - n, j, i - 1, False)
                graph[node_id].append(node)
            if maze[y][x + 1] == ' ':  # right
                node = Node(node_id + 1, j + 1, i, False)
                graph[node_id].append(node)
            if maze[y + 1][x] == ' ':  # down
                node = Node(node_id + n, j, i + 1, False)
                graph[node_id].append(node)
    for door in doors:
        graph[door.node1.Id].append(door.node2)
        graph[door.node2.Id].append(door.node1)
    return graph

def dijkstra2(graph):
    node_num = len(graph)
    # 0: 未発見, 1: 発見, 2: 到達
    color = [0 for _ in range(node_num)]
    inf = int(1e9 + 7)
    dist = [inf for _ in range(node_num)]
    dfnode = Node(-1, -1, -1, False)
    parent = [dfnode for _ in range(node_num)]
    s = 0
    node_s = Node(0, 0, 0, False)
    q = deque([node_s])
    color[s] = 1
    dist[s] = 0
    while (len(q) > 0):
        node_u = q.popleft()
        color[node_u.Id] = 2
        for node_v in graph[node_u.Id]:
            if color[node_v.Id] == 2:
                continue
            if dist[node_v.Id] > dist[node_u.Id] + 1:
                dist[node_v.Id] = dist[node_u.Id] + 1
                parent[node_v.Id] = node_u
                q.append(node_v)
                color[node_v.Id] = 1

    return dist, parent

def solve7(file_path):
    n, maze, doors = inputdata(file_path)
    graph = init_graph(n, maze, doors)
    dist, parent = dijkstra2(graph)
    node_num = len(graph)
    if (dist[node_num - 1] > node_num):
        return "cant achieve"
    node_e = Node(node_num-1, n - 1, n - 1, False)
    root = [node_e]
    while (node_e.Id != 0):
        node_p = parent[node_e.Id]
        root.append(node_p)
        node_e = node_p
    root = root[::-1]
    doors_set = set()
    for door in doors:
        doors_set.add('({0},{1})*({2},{3})'.format(door.node1.x, door.node1.y, door.node2.x, door.node2.y))
        doors_set.add('({0},{1})*({2},{3})'.format(door.node2.x, door.node2.y, door.node1.x, door.node1.y))
    i = 0
    ret = ''
    while (i < len(root)):
        if i < len(root) - 1:
            node1 = root[i]
            node2 = root[i+1]
            txt_id1 = '({0},{1})*({2},{3})'.format(node1.x, node1.y, node2.x, node2.y)
            txt_id2 = '({0},{1})*({2},{3})'.format(node2.x, node2.y, node1.x, node1.y)
            isDoor = ((txt_id1 in doors_set) or (txt_id2 in doors_set))
            if (isDoor):
                i += 2
                ret += '({0},{1})*({2},{3}) '.format(node1.x, node1.y, node2.x, node2.y)
            else:
                i += 1
                ret += '({0},{1}) '.format(node1.x, node1.y)
        else:
            node = root[i]
            ret += '({0},{1}) '.format(node.x, node.y)
            i += 1

    return ret[:-1]

感想

• うーん、面白みはないけど試験としてはきちんとしているなぁという印象
• 本質は幅（深さ）優先探索とダイクストラ（コストが全て1だからダイクストラもどき）という基本的なことを聞いているだけだけど、それだと簡単すぎるからグラフをいかにしてinput fileから作るかが相当面倒になっている
• 実装力、実装スピードに重きをおいた年だと個人的に思う
• NodeクラスのisDoorは完全に無駄実装しちゃいました笑
