concrete5 (version 8)を CentOS8の環境に構築する　番外編（トラブル対応）

Last updated at Posted at 2020-03-07

概要

ここでは、concrete5の実際のインストール作業を行なっていきます。
事前準備として、CentOSやNginx,PHP,MySQLなどの環境が構築済みであることが必要です。

ここでの手順は、以下の手順の通り環境構築が完了していることを前提とします。
concrete5 （version 8）を CentOS8の環境に構築する①

また、インストールはComposerを利用しようと思います。

環境情報

  • Vagrant 2.2.7
  • VirtualBox 6.1
  • CentOS 8.1
  • Nginx 1.17.8
  • PHP 7.4.3
  • MySQL 8.0.17
  • Composer 1.9.3

Composerをインストール

# dnf -y install wget
# cd /usr/local/src
# wget https://getcomposer.org/installer -O composer-installer.php

# php composer-installer.php --filename=composer --install-dir=/usr/local/bin

# composer -V
Composer version 1.9.3 2020-02-04 12:58:49

いよいよconcrete5をインストール

インストールの手順の参考としては以下のREADME.mdです。
https://github.com/concrete5/composer

/var/www/concrete5はいったん不要なので削除して、インストール作業を進めていきます。

# cd /var/www
# rm -rf ./concrete5

# composer create-project -n concrete5/composer concrete5

なんか怒られた。。。

the requested PHP extension gd is missing from your system.のエラー

Installing concrete5/composer (v1.1.9)
  - Installing concrete5/composer (v1.1.9): Downloading (100%)
Created project in concrete5
Loading composer repositories with package information
Updating dependencies (including require-dev)
Your requirements could not be resolved to an installable set of packages.

  Problem 1
    - concrete5/core 8.2.0 requires dapphp/securimage 3.* -> satisfiable by dapphp/securimage[3.5.4, 3.6, 3.6.1, 3.6.2, 3.6.3, 3.6.4, 3.6.5, 3.6.6, 3.6.7].
    - concrete5/core 8.2.1 requires dapphp/securimage 3.* -> satisfiable by dapphp/securimage[3.5.4, 3.6, 3.6.1, 3.6.2, 3.6.3, 3.6.4, 3.6.5, 3.6.6, 3.6.7].
    - concrete5/core 8.3.0 requires dapphp/securimage 3.* -> satisfiable by dapphp/securimage[3.5.4, 3.6, 3.6.1, 3.6.2, 3.6.3, 3.6.4, 3.6.5, 3.6.6, 3.6.7].
    - concrete5/core 8.3.1 requires dapphp/securimage 3.* -> satisfiable by dapphp/securimage[3.5.4, 3.6, 3.6.1, 3.6.2, 3.6.3, 3.6.4, 3.6.5, 3.6.6, 3.6.7].
    - concrete5/core 8.3.2 requires dapphp/securimage 3.* -> satisfiable by dapphp/securimage[3.5.4, 3.6, 3.6.1, 3.6.2, 3.6.3, 3.6.4, 3.6.5, 3.6.6, 3.6.7].
    - concrete5/core 8.4.0 requires dapphp/securimage 3.* -> satisfiable by dapphp/securimage[3.5.4, 3.6, 3.6.1, 3.6.2, 3.6.3, 3.6.4, 3.6.5, 3.6.6, 3.6.7].
    - concrete5/core 8.4.1 requires dapphp/securimage 3.* -> satisfiable by dapphp/securimage[3.5.4, 3.6, 3.6.1, 3.6.2, 3.6.3, 3.6.4, 3.6.5, 3.6.6, 3.6.7].
    - concrete5/core 8.4.2 requires dapphp/securimage 3.* -> satisfiable by dapphp/securimage[3.5.4, 3.6, 3.6.1, 3.6.2, 3.6.3, 3.6.4, 3.6.5, 3.6.6, 3.6.7].
    - concrete5/core 8.4.3 requires dapphp/securimage 3.* -> satisfiable by dapphp/securimage[3.5.4, 3.6, 3.6.1, 3.6.2, 3.6.3, 3.6.4, 3.6.5, 3.6.6, 3.6.7].
    - concrete5/core 8.4.4 requires dapphp/securimage 3.* -> satisfiable by dapphp/securimage[3.5.4, 3.6, 3.6.1, 3.6.2, 3.6.3, 3.6.4, 3.6.5, 3.6.6, 3.6.7].
    - concrete5/core 8.4.5 requires dapphp/securimage 3.* -> satisfiable by dapphp/securimage[3.5.4, 3.6, 3.6.1, 3.6.2, 3.6.3, 3.6.4, 3.6.5, 3.6.6, 3.6.7].
    - concrete5/core 8.5.0 requires dapphp/securimage 3.* -> satisfiable by dapphp/securimage[3.5.4, 3.6, 3.6.1, 3.6.2, 3.6.3, 3.6.4, 3.6.5, 3.6.6, 3.6.7].
    - concrete5/core 8.5.1 requires dapphp/securimage 3.* -> satisfiable by dapphp/securimage[3.5.4, 3.6, 3.6.1, 3.6.2, 3.6.3, 3.6.4, 3.6.5, 3.6.6, 3.6.7].
    - concrete5/core 8.5.2 requires dapphp/securimage 3.* -> satisfiable by dapphp/securimage[3.5.4, 3.6, 3.6.1, 3.6.2, 3.6.3, 3.6.4, 3.6.5, 3.6.6, 3.6.7].
    - dapphp/securimage 3.6.7 requires ext-gd * -> the requested PHP extension gd is missing from your system.
    - dapphp/securimage 3.6.6 requires ext-gd * -> the requested PHP extension gd is missing from your system.
    - dapphp/securimage 3.6.5 requires ext-gd * -> the requested PHP extension gd is missing from your system.
    - dapphp/securimage 3.6.4 requires ext-gd * -> the requested PHP extension gd is missing from your system.
    - dapphp/securimage 3.6.3 requires ext-gd * -> the requested PHP extension gd is missing from your system.
    - dapphp/securimage 3.6.2 requires ext-gd * -> the requested PHP extension gd is missing from your system.
    - dapphp/securimage 3.6.1 requires ext-gd * -> the requested PHP extension gd is missing from your system.
    - dapphp/securimage 3.6 requires ext-gd * -> the requested PHP extension gd is missing from your system.
    - dapphp/securimage 3.5.4 requires ext-gd * -> the requested PHP extension gd is missing from your system.
    - Installation request for concrete5/core ^8.2 -> satisfiable by concrete5/core[8.2.0, 8.2.1, 8.3.0, 8.3.1, 8.3.2, 8.4.0, 8.4.1, 8.4.2, 8.4.3, 8.4.4, 8.4.5, 8.5.0, 8.5.1, 8.5.2].

  To enable extensions, verify that they are enabled in your .ini files:
    - /etc/php.ini
    - /etc/php.d/20-bz2.ini
    - /etc/php.d/20-calendar.ini
    - /etc/php.d/20-ctype.ini
    - /etc/php.d/20-curl.ini
    - /etc/php.d/20-dom.ini
    - /etc/php.d/20-exif.ini
    - /etc/php.d/20-fileinfo.ini
    - /etc/php.d/20-ftp.ini
    - /etc/php.d/20-gettext.ini
    - /etc/php.d/20-iconv.ini
    - /etc/php.d/20-json.ini
    - /etc/php.d/20-mbstring.ini
    - /etc/php.d/20-mysqlnd.ini
    - /etc/php.d/20-pdo.ini
    - /etc/php.d/20-phar.ini
    - /etc/php.d/20-simplexml.ini
    - /etc/php.d/20-sockets.ini
    - /etc/php.d/20-sqlite3.ini
    - /etc/php.d/20-tokenizer.ini
    - /etc/php.d/20-xml.ini
    - /etc/php.d/20-xmlwriter.ini
    - /etc/php.d/20-xsl.ini
    - /etc/php.d/30-mysqli.ini
    - /etc/php.d/30-pdo_mysql.ini
    - /etc/php.d/30-pdo_sqlite.ini
    - /etc/php.d/30-xmlreader.ini
  You can also run `php --ini` inside terminal to see which files are used by PHP in CLI mode.

とりあえず、気になる部分として

the requested PHP extension gd is missing from your system.

こんな指摘があるので、php-gdというものを入れてみる。

# dnf install -y php-gd

気を取り直して再度Composerを実行

# cd /var/www
# rm -rf ./concrete5

# composer create-project -n concrete5/composer concrete5

...
Package zendframework/zend-eventmanager is abandoned, you should avoid using it. Use laminas/laminas-eventmanager instead.
Package zendframework/zend-stdlib is abandoned, you should avoid using it. Use laminas/laminas-stdlib instead.
Package zendframework/zend-hydrator is abandoned, you should avoid using it. Use laminas/laminas-hydrator instead.
Package zendframework/zend-code is abandoned, you should avoid using it. Use laminas/laminas-code instead.
Package league/url is abandoned, you should avoid using it. Use league/uri instead.
Package zendframework/zend-i18n is abandoned, you should avoid using it. Use laminas/laminas-i18n instead.
Package zendframework/zend-escaper is abandoned, you should avoid using it. Use laminas/laminas-escaper instead.
Package zendframework/zend-feed is abandoned, you should avoid using it. Use laminas/laminas-feed instead.
Package container-interop/container-interop is abandoned, you should avoid using it. Use psr/container instead.
Package zendframework/zend-validator is abandoned, you should avoid using it. Use laminas/laminas-validator instead.
Package zendframework/zend-uri is abandoned, you should avoid using it. Use laminas/laminas-uri instead.
Package zendframework/zend-loader is abandoned, you should avoid using it. Use laminas/laminas-loader instead.
Package zendframework/zend-http is abandoned, you should avoid using it. Use laminas/laminas-http instead.
Package zendframework/zend-servicemanager is abandoned, you should avoid using it. Use laminas/laminas-servicemanager instead.
Package zendframework/zend-cache is abandoned, you should avoid using it. Use laminas/laminas-cache instead.
Package zendframework/zend-mime is abandoned, you should avoid using it. Use laminas/laminas-mime instead.
Package zendframework/zend-mail is abandoned, you should avoid using it. Use laminas/laminas-mail instead.
Writing lock file
Generating autoload files
Warning: Ambiguous class resolution, "Normalizer" was found in both "/var/www/concrete5/vendor/patchwork/utf8/src/Normalizer.php" and "/var/www/concrete5/vendor/voku/portable-utf8/src/Normalizer.php", the first will be used.
Carbon 1 is deprecated, see how to migrate to Carbon 2.
https://carbon.nesbot.com/docs/#api-carbon-2
    You can run './vendor/bin/upgrade-carbon' to get help in updating carbon and other frameworks and libraries that depend on it.
ocramius/package-versions: Generating version class...
ocramius/package-versions: ...done generating version class
Gathering patches from concrete5/dependency-patches (extra.patches).
Applying patch concrete5/dependency-patches/Fix minus in regular expressions to sunra/php-simple-html-dom-parser... sh: patch: command not found

Applying patch concrete5/dependency-patches/Fix continue switch in FileGenerator and MethodReflection to zendframework/zend-code... sh: patch: command not found

Applying patch concrete5/dependency-patches/Remove support for the X-Original-Url and X-Rewrite-Url headers to zendframework/zend-http... sh: patch: command not found

Applying patch concrete5/dependency-patches/Fix idn_to_ascii deprecation warning to zendframework/zend-mail... sh: patch: command not found

Applying patch concrete5/dependency-patches/Fix ArrayObject::unserialize() to zendframework/zend-stdlib... sh: patch: command not found

patchコマンドがないよ

# dnf install -y patch

エラーではなさそうなので、無視してconcrete5のインストールを進めていきます。
concrete5のインストールを進めようとすると、Zipが必要だよと怒られます。

# cd /var/www/concrete5
# ./vendor/bin/concrete5 c5:install -i

...
...
- Zip Support... Downloading zipped files from the file manager, remote updating and marketplace integration requires the Zip extension.

php-zipをインストールして再チャレンジします。

# dnf install -y php-zip

# cd /var/www/concrete5
# ./vendor/bin/concrete5 c5:install -i

Zipのエラーは解消したのですが、
インストールする前に、MySQLにconcrete5用のデータベースを事前に作成する必要があるようです。
データベースの中身は空である必要があります。

データベースに１つでもテーブルがあると、以下のようなメッセージが出て怒られます。

- Database should be empty... There is already 1 table in this database. concrete5 must be installed in an empty database.

また、空のデータベースを事前に作成せず、適当な名前のデータベース名を指定してインストールをしようとすると、怒られます。

SQLSTATE[HY000] [1049] Unknown database 'concrete5db'

なので、concrete5が利用する空のデータベースを作成しておきます。

# mysql -u root -p

mysql> create database concrete5db;
mysql> quit

concrete5のインストールを実行します。

# cd /var/www/concrete5
# ./vendor/bin/concrete5 c5:install -i


Checking required preconditions:
- PHP 5.5.9... passed (you are running PHP version 7.4.3).
- MySQL PDO Extension Enabled... passed.
- JSON Extension Enabled... passed.
- DOM Extension Enabled... passed.
- ASP Style Tags Disabled... passed.
- Fileinfo Extension Enabled... passed.
- Image Manipulation Available... passed.
- XML Support... passed.
- Writable Files and Configuration Directories... passed.
- Internationalization Support... passed.
- PHP Comments Preserved... passed.
- Tokenizer Extension Enabled... passed.
- Memory limit 64.00 MB.... passed (current memory limit: 256.00 MB).
Checking optional preconditions:
- Remote File Importing... passed.
- Zip Support... passed.
Location of database server? [127.0.0.1]:
Database name?: concrete5db
Database username?: mysqluser
Database password?:
The system time zone, compatible with the database one? [Asia/Tokyo]:
Name of the site? [concrete5 Site]:
Canonical URL?:
Alternative canonical URL?:
Starting point to use? [elemental_blank]:
  [0] elemental_blank
  [1] elemental_full
 > 1
Email of the admin user of the install? [admin@example.com]: {メールアドレス}
Password of the admin user of the install?:
Additional user username?: {ユーザー名}
Additional user email? [demo@example.com]: {メールアドレス}
Additional user password?:
The default concrete5 interface language (eg en_US)? [en_US]: ja_JP
The default site locale (eg en_US)? [ja_JP]:
Use configuration file for installation? [none]:
Checking required configuration preconditions:
- Canonical URLs... passed.
- Database should be empty... passed.
- MySQL InnoDB engine... passed.
- Starting Point... passed.
Checking optional configuration preconditions:
- Database time zone... passed.
- Table case... passed (Table names are stored in the specified lettercase (lookups are performed in a case-sensitive way).).
- Database should support the configured character set and collation... passed (The database supports the "utf8mb4" character set and the "utf8mb4_unicode_ci" collation.).
+---------------------------+------------------------------------+
| Question                  | Value                              |
+---------------------------+------------------------------------+
| env                       |                                    |
| db-server                 | 127.0.0.1                          |
| db-username               | mysqluser                          |
| db-password               | HIDDEN                             |
| db-database               | concrete5db                        |
| timezone                  | Asia/Tokyo                         |
| site                      | concrete5 Site                     |
| canonical-url             |                                    |
| canonical-url-alternative |                                    |
| starting-point            | elemental_full                     |
| admin-email               | {mailaddress}                      |
| admin-password            | HIDDEN                             |
| demo-username             | {username}                         |
| demo-password             | HIDDEN                             |
| demo-email                | {mailaddress}                      |
| language                  | ja_JP                              |
| site-locale               | ja_JP                              |
| config                    | none                               |
+---------------------------+------------------------------------+
Would you like to install with these settings? [Y]es / [N]o / [E]dit: y

5%: Starting installation and creating directories.
19%: Creating database tables.
20%: Creating site.
21%: Adding admin user.
22%: Installing permissions & workflow.
23%: Installing Custom Data Objects.
24%: Creating home page.
25%: Installing attributes.
38%: Adding Basic block types.
42%: Adding Navigation block types.
45%: Adding Form block types.
48%: Adding Express block types.
51%: Adding Social block types.
54%: Adding Calendar block types.
57%: Adding Multimedia block types.
61%: Adding Desktop block types.
64%: Adding other block types.
66%: Adding gathering data sources.
67%: Page type basic setup.
68%: Adding themes.
69%: Installing automated jobs.
78%: Installing dashboard.
79%: Installing login and registration pages.
80%: Adding image editor functionality.
81%: Configuring site.
82%: Importing files.
83%: Adding pages and content.
92%: Adding desktops.
93%: Installing API.
94%: Setting site permissions.
95%: Finishing.
Adding demo user... done.
Installation Complete!

これでインストールできたと思います。
以下のURLにアクセスして動作確認してみます。

403 Forbidden

ん？
面倒なのでrootでずっと作業していたため、nginxユーザーで/var/www/concrete5にアクセスできないことが原因か？？

# chown -R nginx:nginx /var/www/concrete5

もう一度アクセス

それでも

403 Forbidden

そういえば、nginxの設定でルートディレクトリを/var/www/concrete5に設定していたが、
実際に当該ディレクトリ配下を確認するとindex.phpなどのファイルが無いので、４０３が出ているのか？

# cd /var/www/concrete5/public

# ls -la
total 12
drwxr-xr-x.  5 nginx nginx   74  3月  6 07:31 .
drwxr-xr-x.  7 nginx nginx 4096  3月  6 07:32 ..
drwxr-xr-x. 17 nginx nginx  263 10月  3 04:58 application
drwxr-xr-x. 22 nginx nginx 4096  3月  6 07:31 concrete
-rw-r--r--.  1 nginx nginx   42 10月  3 04:58 index.php
drwxr-xr-x.  2 nginx nginx   24 10月  3 04:58 packages

今度は以下のURLにアクセス
http://192.168.33.10/public

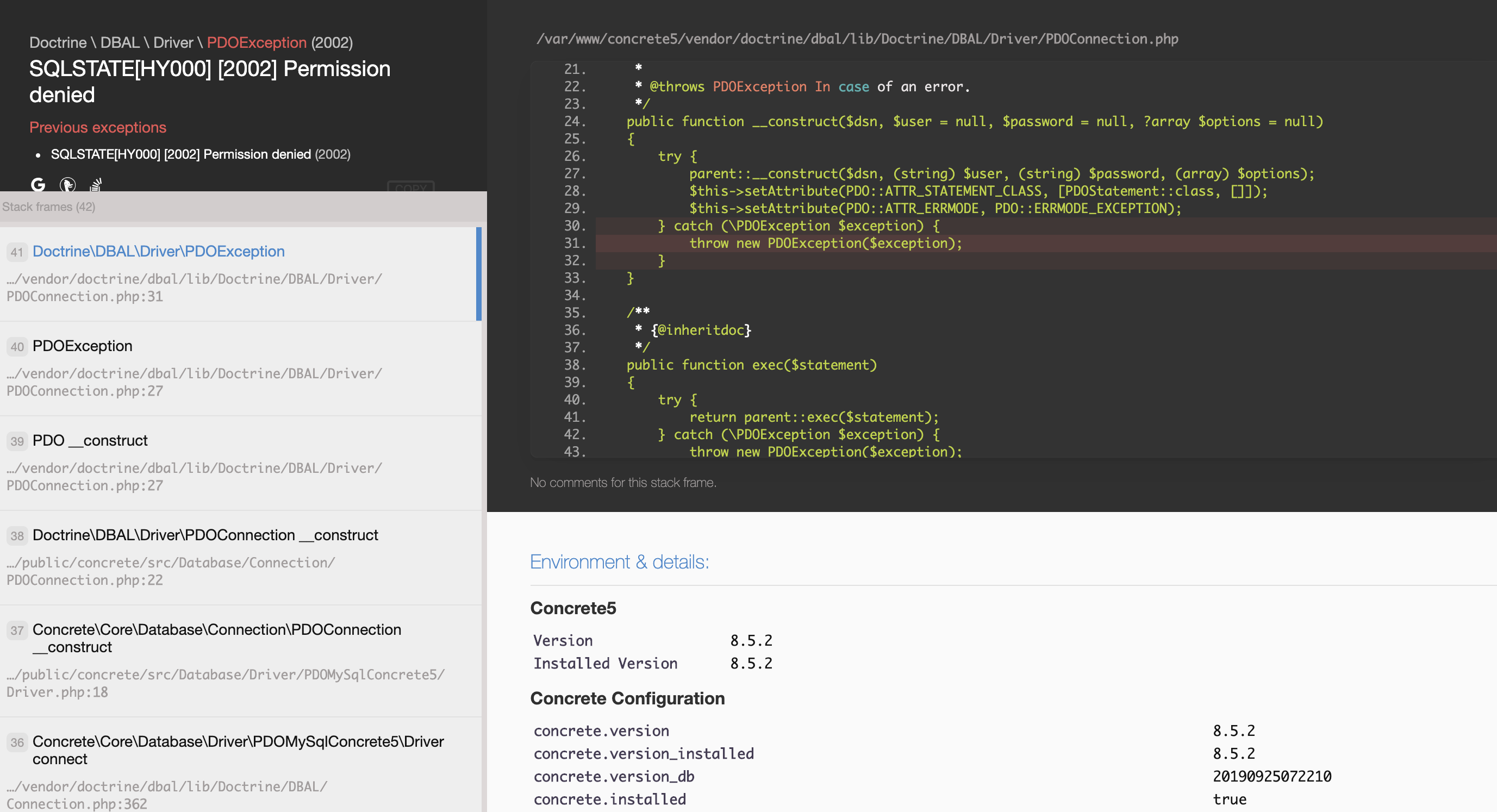

スクリーンショット 2020-03-06 19.50.39.png

データベース接続に問題があるようなので、設定を確認してみる。

# cd /var/www/concrete5/public/application/config
# less database.php
database.php
<?php

return [
    'default-connection' => 'concrete',
    'connections' => [
        'concrete' => [
            'driver' => 'c5_pdo_mysql',
            'server' => '127.0.0.1',
            'database' => 'concrete5db',
            'username' => 'mysqluser',
            'password' => 'MySQL00#$%',
            'character_set' => 'utf8mb4',
            'collation' => 'utf8mb4_unicode_ci',
        ],
    ],
];

ここに設定されている内容の通りにアクセスできるのか確認。

# mysql -h 127.0.0.1 -u mysqluser -pMySQL00#$% concrete5db

mysql> show tables;
+-----------------------------------------------------+
| Tables_in_concrete5db                               |
+-----------------------------------------------------+
| AreaLayoutColumns                                   |
| AreaLayoutCustomColumns                             |
......
| btYouTube                                           |
| gaPage                                              |
+-----------------------------------------------------+
329 rows in set (0.01 sec)


mysql> select count(*) cnt from Config;
+-----+
| cnt |
+-----+
|   4 |
+-----+
1 row in set (0.08 sec)

接続できることを確認。。。
ん〜、、、、

さらに探してみると
https://github.com/concrete5/concrete5/issues/7311
MySQLのonly_full_group_byの設定が問題だよ。という記事を発見。


mysql> SELECT @@global.sql_mode;

+-----------------------------------------------------------------------------------------------------------------------+
| @@global.sql_mode                                                                                                     |
+-----------------------------------------------------------------------------------------------------------------------+
| ONLY_FULL_GROUP_BY,STRICT_TRANS_TABLES,NO_ZERO_IN_DATE,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO,NO_ENGINE_SUBSTITUTION |
+-----------------------------------------------------------------------------------------------------------------------+
1 row in set (0.01 sec)

ONLY_FULL_GROUP_BYというのが設定されていることを確認。
この設定を取り除くと良いみたいなので、設定から除去。

# cd /etc/my.cnf.d/
# ls
charset.cnf  mysql-default-authentication-plugin.cnf
client.cnf   mysql-server.cnf

# vim sqlmode.cnf
sqlmode.cnf
[mysqld]
sql-mode = STRICT_TRANS_TABLES,NO_ZERO_IN_DATE,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO,NO_ENGINE_SUBSTITUTION

# systemctl stop mysqld
# systemctl start mysqld

再度アクセス
http://192.168.33.10/public

ダメだ。。。

# vim /var/www/concrete5/vendor/doctrine/dbal/lib/Doctrine/DBAL/Driver/PDOConnection.php

色々試していると、、、
SELinuxを無効にしたら少し進んだ。

# setenforce 0

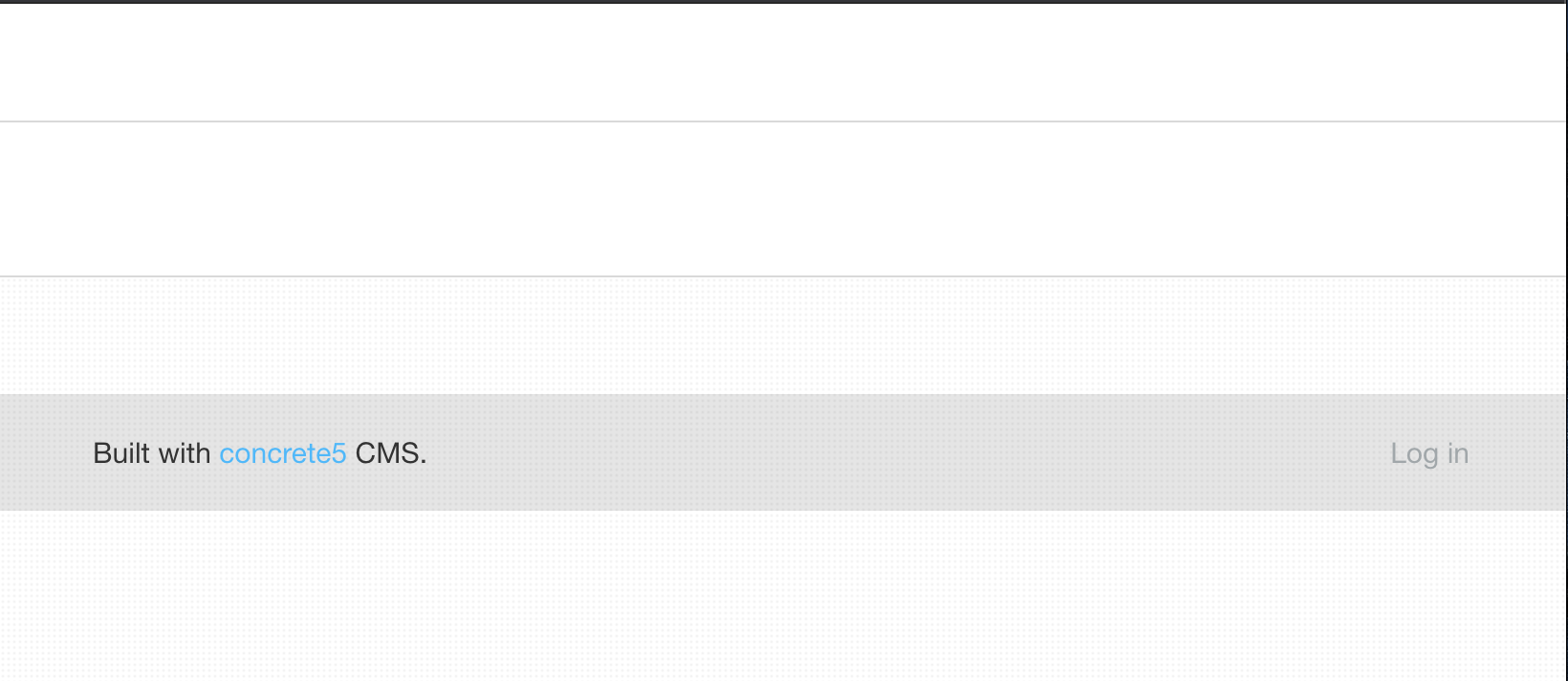

スクリーンショット 2020-03-06 20.53.50.png

やっとうまくいった。

...
In simple_html_dom.php line 1378:

  preg_match(): Compilation failed: invalid range in character class at offset 4

# vim /var/www/concrete5/vendor/sunra/php-simple-html-dom-parser/Src/Sunra/PhpSimple/simplehtmldom_1_5/simple_html_dom.php

こんな問題
https://cafe-system.com/system2237.html

以下からダウンロードしたsimple_html_dom.phpを上書き保存してみればうまくいくのか？
https://sourceforge.net/projects/simplehtmldom/files/simplehtmldom/1.9.1/simplehtmldom_1_9_1.zip/download

これでもうまくいかない。

とりあえず、全ての環境が最新だと現状はうまく環境構築できないのかな。

0
0
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
0
0

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
