【自分用メモ】Wine ビットマップフォントのにじみを除去 WindowsXPからコピーしたフォント用のレジストリ

More than 1 year has passed since last update.


フォントのにじみの原因

Wineが使用しているXFTというフォント描画ライブラリの設定にアンチエイリアスが設定してあるので外す

xrdb -query | grep -vE 'Xft\.(anti|hint|rgba)' | xrdb

ただし、ログイン後に毎回実行しないといけないのが難点

/etc/fonts/local.confに設定してしまうとXの設定が変更されてしまうので使えない

Wineにだけ適用してほしいので適当にバッチを作る

#!/bin/bash

xrdb -query | grep -vE 'Xft\.(anti|hint|rgba)' | xrdb

私の環境(Mint19)だと/etc/rc.localを作って記述しても実行されなかったので

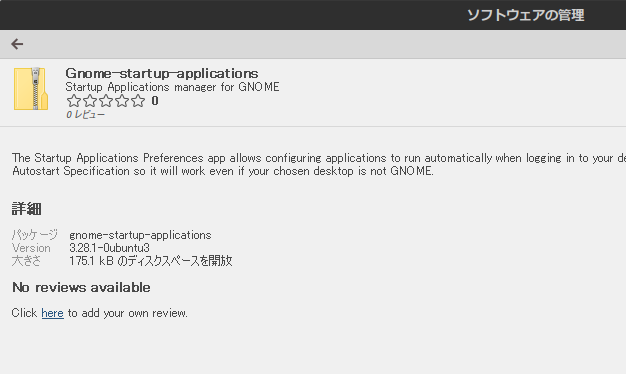

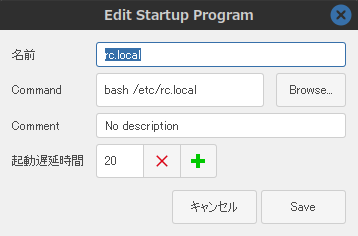

gnome-startup-applicationsというソフトを使ってrc.localを遅延実行させてみたところうまく行った




XPから追加したフォントのレジストリ

Fontsに入れたフォントをWineが自動で設定してくれるが、一部が欠けているので追加する

以下の内容ファイルをregeditでインポートさせる


winfontssetup.reg

Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Fonts]
"Impact (TrueType)"="impact.ttf"
"Meiryo & Meiryo Italic & Meiryo UI & Meiryo UI Italic (TrueType)"="meiryo.ttc"
"Meiryo Bold & Meiryo Bold Italic & Meiryo UI Bold & Meiryo UI Bold Italic (TrueType)"="meiryob.ttc"
"MS Gothic & MS PGothic & MS UI Gothic (TrueType)"="msgothic.ttc"
"MS Mincho & MS PMincho (TrueType)"="msmincho.ttc"
"Tahoma (TrueType)"="tahoma.ttf"
"Tahoma Bold (TrueType)"="tahomabd.ttf"
"Arial (TrueType)"="arial_0.ttf"
"Arial Bold (TrueType)"="arialbd_0.ttf"
"Arial Bold Italic (TrueType)"="arialbi_0.ttf"
"Arial Italic (TrueType)"="ariali_0.ttf"
"Arial Narrow (TrueType)"="ARIALN_0.TTF"
"Arial Narrow Bold (TrueType)"="ARIALNB_0.TTF"
"Arial Narrow Bold Italic (TrueType)"="ARIALNBI_0.TTF"
"Arial Narrow Italic (TrueType)"="ARIALNI_0.TTF"
"Arial Unicode MS (TrueType)"="ARIALUNI_0.TTF"
"Arial Black (TrueType)"="ariblk_0.ttf"

[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\FontMapper]
"ARIAL"=dword:00000000
"Batang"=dword:00004081
"BatangChe"=dword:0000c081
"@Batang"=dword:00006081
"@BatangChe"=dword:0000e081
"Gungsuh"=dword:00005081
"GungsuhChe"=dword:0000d081
"@Gungsuh"=dword:00007081
"@GungsuhChe"=dword:0000f081
"COURIER NEW"=dword:00008000
"Gulim"=dword:00000081
"GulimChe"=dword:00008081
"@Gulim"=dword:00002081
"@GulimChe"=dword:0000a081
"Dotum"=dword:00001081
"DotumChe"=dword:00009081
"@Dotum"=dword:00003081
"@DotumChe"=dword:0000b081
"MingLiU"=dword:00008088
"PMingLiU"=dword:00000088
"@MingLiU"=dword:0000a088
"@PMingLiU"=dword:00002088
"MS Gothic"=dword:00008080
"MS PGothic"=dword:00000080
"@MS Gothic"=dword:0000a080
"@MS PGothic"=dword:00002080
"MS Mincho"=dword:0000c080
"MS PMincho"=dword:00004080
"@MS Mincho"=dword:0000e080
"@MS PMincho"=dword:00006080
"SimSun"=dword:00000086
"NSimSun"=dword:00008086
"@SimSun"=dword:00002086
"@NSimSun"=dword:0000a086
"TIMES NEW ROMAN"=dword:00004000
"SYMBOL"=dword:00004002
"SYMBOL1"=dword:0000a002
"WINGDINGS"=dword:00000002
"COURIER"=dword:00008800
"FIXEDSYS"=dword:00009000
"MS SANS SERIF"=dword:00001000
"MS SERIF"=dword:00005000
"SMALL FONTS"=dword:00000800
"DEFAULT"=dword:00000080

[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\FontMapper\FamilyDefaults]
@="Arial"
"Swiss"="Arial"
"Modern"="Courier New"
"Decorative"="Impact"
"Script"="Segoe Script"
"Roman"="Times New Roman"

[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\FontSubstitutes]
"Arabic Transparent"="Arial"
"Arabic Transparent Bold"="Arial Bold"
"Arabic Transparent,0"="Arial,178"
"Arabic Transparent Bold,0"="Arial Bold,178"
"Helvetica"="Arial"
"Arial Baltic,186"="Arial,186"
"Arial CE,238"="Arial,238"
"Arial CYR,204"="Arial,204"
"Arial Greek,161"="Arial,161"
"Arial TUR,162"="Arial,162"
"Courier New Baltic,186"="Courier New,186"
"Courier New CE,238"="Courier New,238"
"Courier New CYR,204"="Courier New,204"
"Courier New Greek,161"="Courier New,161"
"Courier New TUR,162"="Courier New,162"
"Times"="Times New Roman"
"Times New Roman Baltic,186"="Times New Roman,186"
"Times New Roman CE,238"="Times New Roman,238"
"Times New Roman CYR,204"="Times New Roman,204"
"Times New Roman Greek,161"="Times New Roman,161"
"Times New Roman TUR,162"="Times New Roman,162"
"MS Shell Dlg 2"="Tahoma"
"Tahoma Armenian"="Tahoma"
"Helv"="MS Sans Serif"
"Tms Rmn"="MS Serif"
"David Transparent"="David"
"Miriam Transparent"="Miriam"
"Fixed Miriam Transparent"="Miriam Fixed"
"Rod Transparent"="Rod"
"FangSong_GB2312"="FangSong"
"KaiTi_GB2312"="KaiTi"
"MS Shell Dlg"="MS UI Gothic"
"標準明朝"="MS 明朝"
"@標準明朝"="@MS 明朝"
"標準ゴシック"="MS ゴシック"
"@標準ゴシック"="@MS ゴシック"
"ゴシック"="MS ゴシック"
"ゴシック"="MS ゴシック"
"クーリエ"="Courier"
"タイムズロマン"="Times New Roman"
"ヘルベチカ"="Arial"

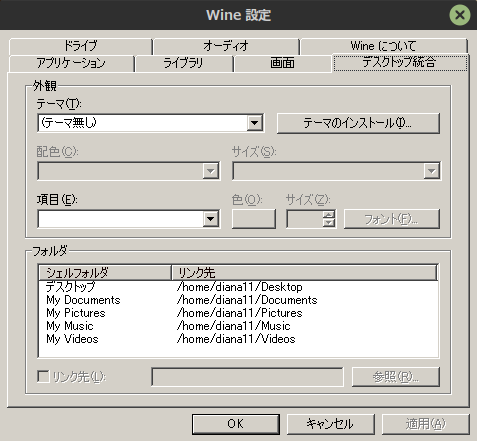

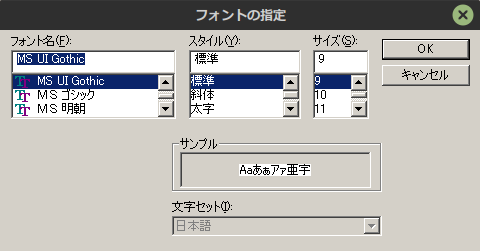

結果スクリーンショット




参考
