UI ElementsでReorderableList

Last updated at Posted at 2022-12-09

概要

UIElements(UI Toolkit)でListViewを使ってReorderableListを作った際に子要素のバインドでつまづいたのでメモ。

バージョン : Unity 2022.1.24f1

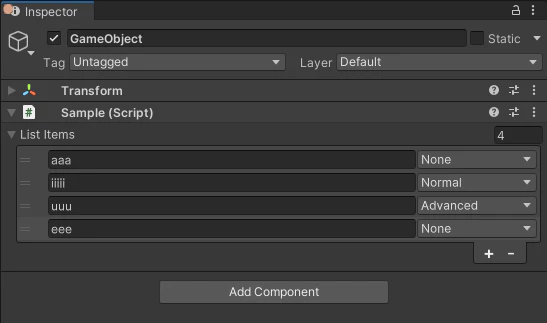

完成イメージ :

コード

Runtime

using System;
using UnityEngine;

public sealed class Sample : MonoBehaviour
{
    [SerializeField] private ListItem[] items;
}

[Serializable]
internal sealed class ListItem
{
    public string name;
    public Type type;
}

internal enum Type
{
    None,
    Normal,
    Advanced
}

Editor


using UnityEditor;
using UnityEngine.UIElements;

[CustomEditor(typeof(Sample))]
public sealed class SampleEditor : UnityEditor.Editor
{
    public override VisualElement CreateInspectorGUI()
    {
        var bodyElement = new VisualElement();

        var listView = new ListView
        {
            bindingPath = "items",
            reorderMode = ListViewReorderMode.Animated,
            showAddRemoveFooter = true,
            showBorder = true,
            showFoldoutHeader = true,
            headerTitle = "List Items",
            virtualizationMethod = CollectionVirtualizationMethod.DynamicHeight,
            makeItem = () =>
            {
                // 返すルートをBindableElementにしないと、子要素がバインドできないので注意
                var root = new BindableElement { style = { flexDirection = FlexDirection.Row }};

                var textField = new TextField { bindingPath = "name", style = { flexGrow = 1 } };
                root.Add(textField);

                var popupField = new EnumField {bindingPath = "type",  style = {width = 120}};
                root.Add(popupField);

                return root;
            }
        };

        bodyElement.Add(listView);

        return bodyElement;
    }
}
