【SwiftUI】かっこいいゲージを自作する

Posted at

はじめに

iOSの標準のゲージでもいいですが、もっとカッコイイデザインのゲージを使いたいので自作してみます。

実装

import SwiftUI

struct CustomGaugeView: View {
    @Binding var value: CGFloat

    private let maxValue: CGFloat

    init(_ value: Binding<CGFloat>, maxValue: CGFloat) {
        self._value = value
        self.maxValue = maxValue
    }

    var body: some View {
        GeometryReader { proxy in
            levelGauge(proxy: proxy)
        }
    }

    private func levelGauge(proxy: GeometryProxy) -> some View {
        ZStack(alignment: .center) {
            Capsule()
                .foregroundColor(.secondary)

            Capsule()
                .fill(LinearGradient(gradient: .init(colors: [.yellow, .orange]), startPoint: .leading, endPoint: .trailing))
                .frame(width: proxy.size.width * (CGFloat(value) / CGFloat(maxValue)))
                .contentShape(Capsule())
                .frame(maxWidth: .infinity, alignment: .leading)
        }
    }
}

使い方

import SwiftUI

struct ContentView: View {
    @State private var value: CGFloat = 0

    private var maxValue: CGFloat = 100

    var body: some View {
        VStack(spacing: 50) {
            CustomGaugeView($value, maxValue: maxValue)
                .frame(height: 23)

            Slider(value: $value, in: 0...maxValue)
        }
        .padding(.horizontal, 20)
    }
}

注意
frameheightを指定してください

動画

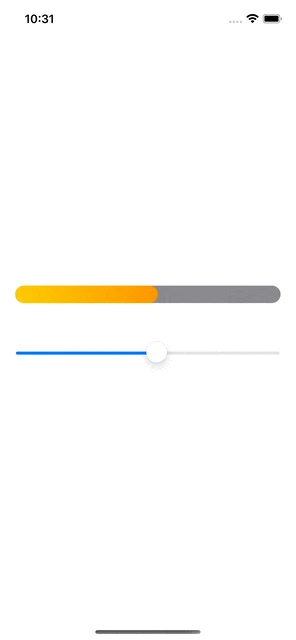

Simulator Screen Recording - iPhone 14 - 2023-06-05 at 22.31.24.gif

おわり

いい感じに作ることができました
