【Rails】Bootstrap 4 でラジオボタンの見た目をトグルボタンにする

Last updated at Posted at 2017-11-03

やりたかったこと

  • ラジオボタンの見た目をかっこよくしたい(ザックリ)
  • inputのtype属性はradioのままで実現したい
  • CSSの編集は最低限にとどめたい


やったこと

  • Bootstrap 4のButton pluginを適用


詳細

Bootstrap 4の導入

RailsにBootstrap 4を導入する手順については下記の投稿で解説してます。

Railsアプリで Bootstrap 4 を利用する - Qiita

Button pluginの適用

Bootstrap 4の公式ドキュメントにチェックボックスやラジオボタンの見た目をボタンにするサンプルが掲載されていたので、こちらを参考に実装しました。

Button plugin / Checkbox and radio buttons

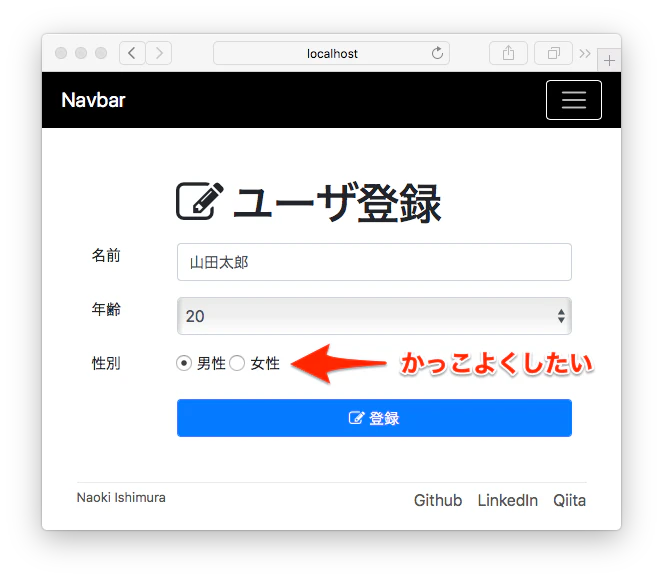

Before


formのラジオボタン部分を抜粋
<div class="form-group row">
  <div class="col-sm-2">
    <%= f.label :sex, '性別', {class: 'form-label'} %>
  </div>
  <div class="col-sm-10">
    <%= f.radio_button :sex, 0, {checked: true} %> 男性
    <%= f.radio_button :sex, 1, {} %> 女性
  </div>
</div>

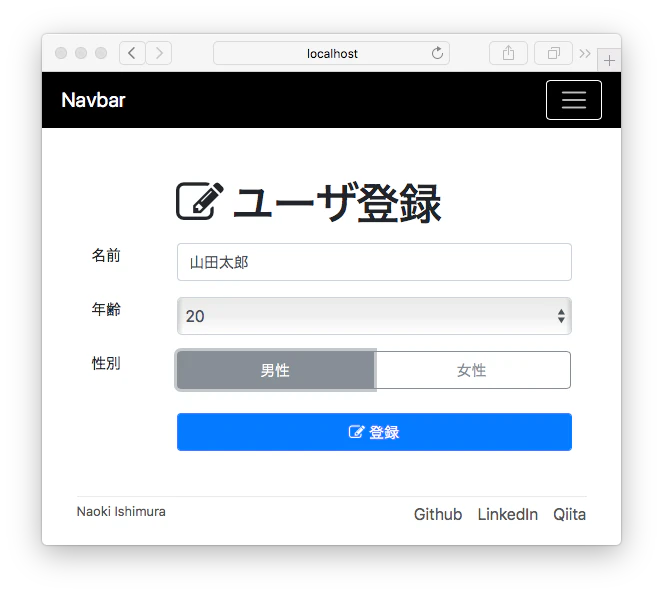

After


formのラジオボタン部分を抜粋
<div class="form-group row">
  <div class="col-sm-2">
    <%= f.label :sex, '性別', {class: 'form-label'} %>
  </div>
  <div class="col-sm-10 btn-group" data-toggle="buttons">
    <label class="btn btn-outline-secondary active" style="width:50%">
      <%= f.radio_button :sex, 0, {checked: true} %> 男性
    </label>
    <label class="btn btn-outline-secondary" style="width:50%">
      <%= f.radio_button :sex, 1, {} %> 女性
    </label>
  </div>
</div>
