THETA&unityで360画像/動画球体を作ってみた

Last updated at Posted at 2019-05-08

まずはTHETAのアプリをダウンロード。

https://support.theta360.com/ja/download/
DRLはここ、適宜なバージョンを選択してダウンロードします。

THETAから画像をPC側にコピー

THETAはReadOnlyなので、コピーしないと作業できない。

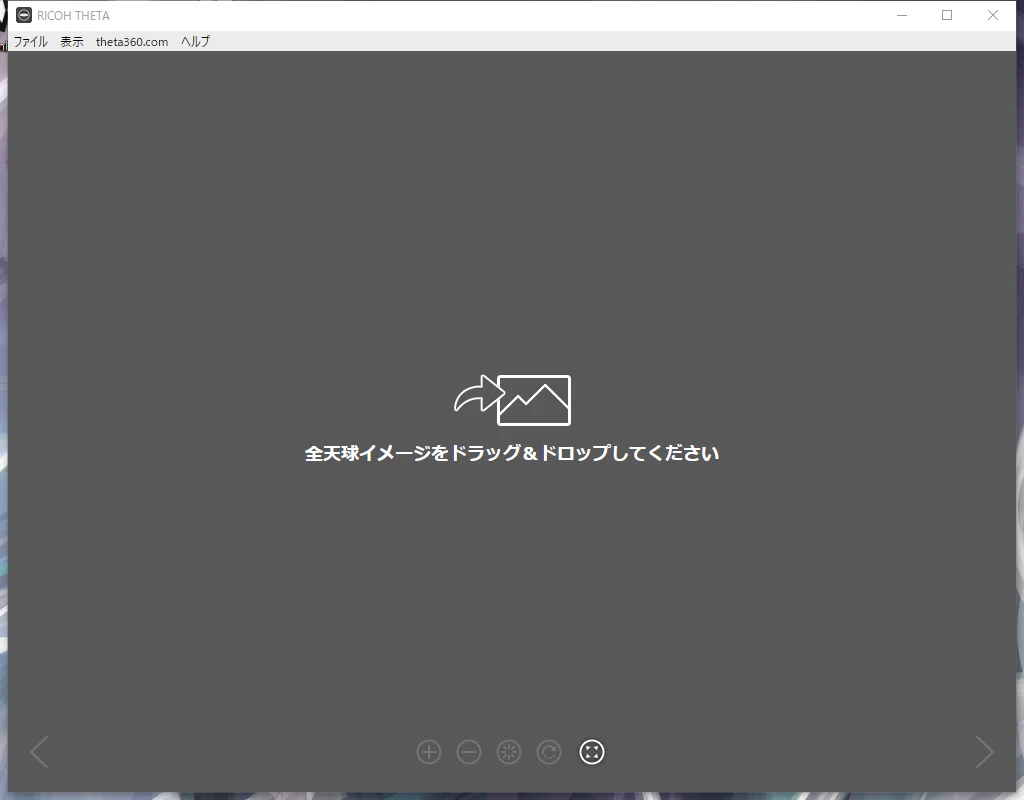

THETAで撮った動画をアプリにドラッグ(画像ならこのステップは不要)

変換完了まで待つ
完了あと変換できた画像をUnityにインポート

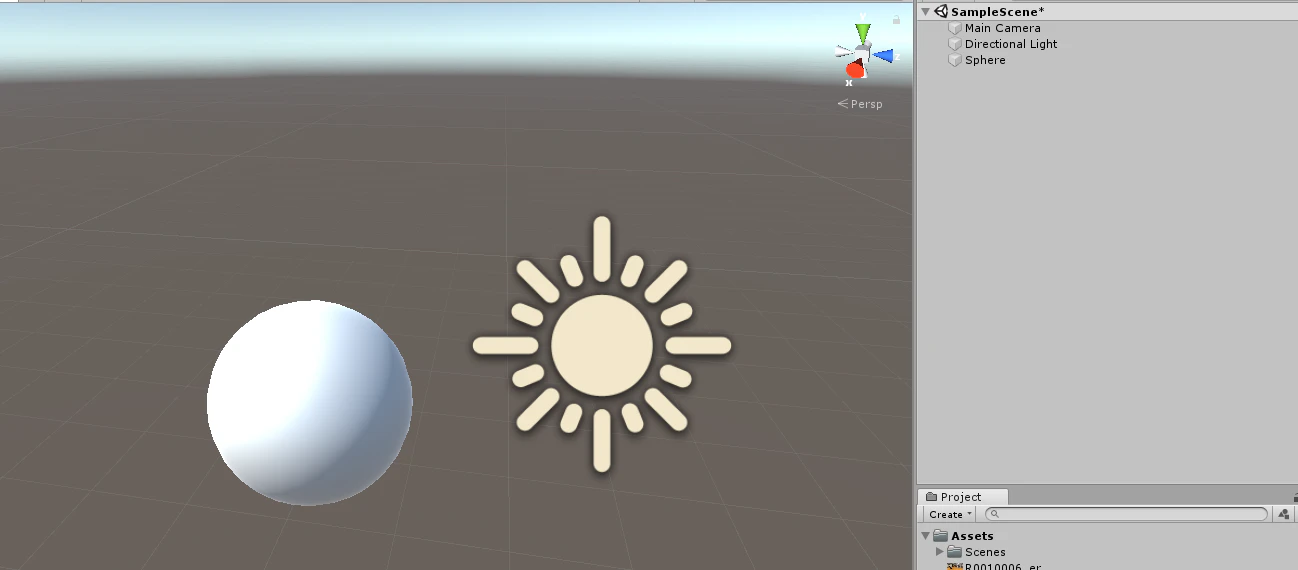

シーンの中でスフィアを作る


球体の材質を変える

ディフォルトの材質は物理に基づくレンダリングなので、テクスチャーは光に影響される。これを避けるために、まずは新しいマテリアルを作って、それから【UnlitShader】を作る。
次にUnlitShaderをマテリアルに与える。
最後にマテリアルを球体に与える
↑こういう感じです。

画像をドラッグしてマテリアルに与える

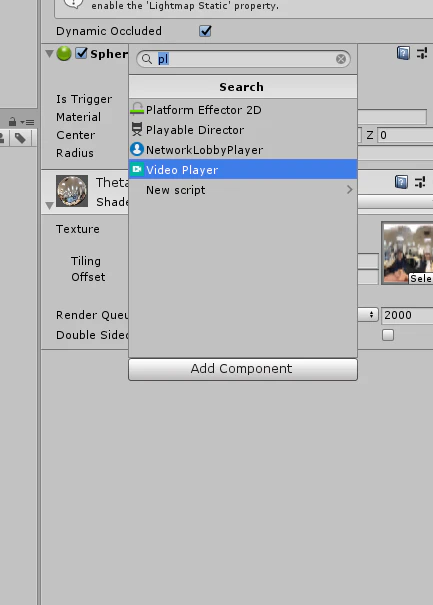

動画の場合

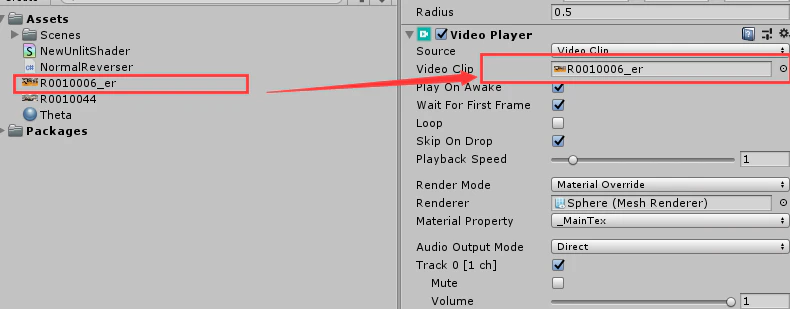

↑ここにドラッグ

こうすると、もう画像が見えましたが、テクスチャーがスフィアの外についてるので、法線を反転しないといけない。

最後のステップ

下のスクリプトを球体に追加

C#:NormalReverser.cs
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class NormalReverser : MonoBehaviour
{
    // Start is called before the first frame update
    void Start()
    {
        int[] triangles = GetComponent<MeshFilter>().mesh.triangles;
        for (int i = 0; i < triangles.Length; i += 3)
        {
            int t = triangles[i];
            triangles[i] = triangles[i + 2];
            triangles[i + 2] = t;
        }
        GetComponent<MeshFilter>().mesh.triangles = triangles;

    }
    // Update is called once per frame
    void Update()
    {

    }

}

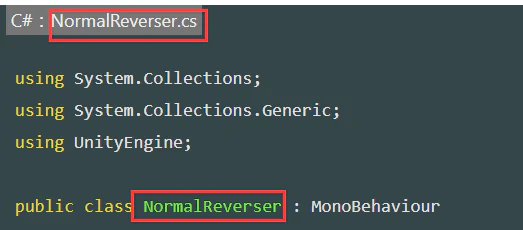

スクリプトファイルの名前とクラスの名前は一緒じゃないとだめ。

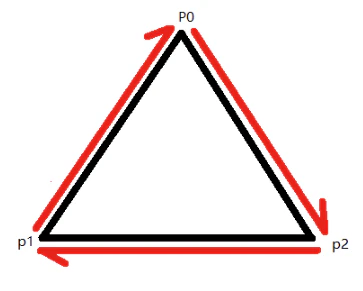

何をやったかというと、マッシュの三角形の第二の点と第三の点を入れ替わった。
こうして、法線ベクトルが反転された。

テスト

カメラの位置を球体の中心に合わせて、Play!

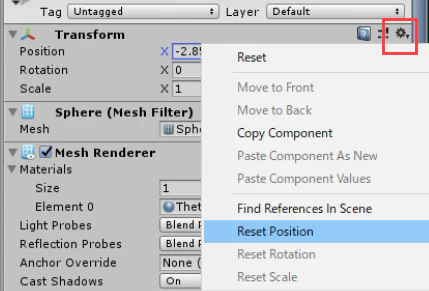

ResetPositionをタッチすると自動に(0,0,0)に戻る。

最後はこういう感じです。
