How to Work with Git Branches

In the current era, most software development companies work in a collaborative environment where several developers contribute to the same source code. While some will be fixing bugs the others would be implementing new and different features. The problem raises, how to maintain different versions of the same code base?

This is where the branch function shines! Branch allows each developer to isolate his/her work from others by creating a new branch from the original code base.

What Is a Branch?

Branch is an independent line of development. It works as a pointer to your next commits. Whenever a new branch is created, Git creates a new pointer while keeping the original code base untouched.

When you make your first commit in a repository, Git will automatically create a master branch by default. Every next commit you make will go to the master branch until you decide to create and switch over to another branch.

Creating Branches

Let's start with creating a new branch: git branch hello-world.

git-branch

This only creates the new branch. To start working on it, you will need to switch to the branch with git checkout. Now, you are ready to use standard git add and git commit commands.

You can see two different branches pointing to the same commit. ==How does Git know which branch is currently checked out?== This is where the HEAD pointer comes into play!

git-branch-head-master

HEAD always points to the currently checked out branch or commit. In our case, it is the master. Let's git checkout hello-world and see what happens.

Git-branch-head-hello

As you can see, the HEAD is now pointing to the hello-world branch instead of master. The next step is to modify some files and create a new commit with git commit -m "commit message"

git-branch-new-commit

A new commit C5 was created in the branch hello-world. Pointers always move to the latest commit in that branch that we checked out. Changes in the hello-world branch did not affect any other branch. Branching enables you to isolate your work from others.

It is a common practice to create a new branch for **each task* (e.g. bug fixing, new features etc), which is a good practice because it allows others to easily identify what changes to expect, and also for backtracking purposes to understand why a particular code change is implemented.* You can read more at Git Beginner's Guide for Dummies.

Create your own Ruby on Rails project and try it out! Make Rspec tests on a different branch and commit the changes.

Detached HEAD

As we have said before, HEAD always points to the currently checked out branch or commit. Checkout to a commit and see what happens with git checkout C0.

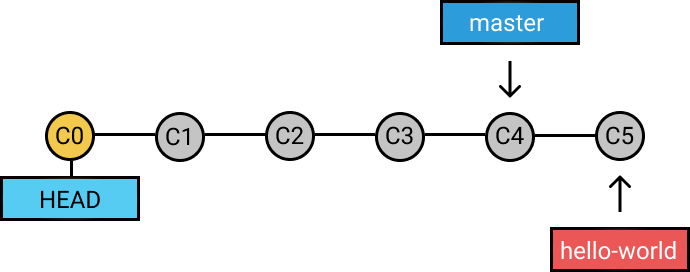

git-branch-checkout-commit

Now, the HEAD is pointing to C0. We are currently checkedout to a remote branch. Is it possible to create a new commit while checkout to one? Time to find it out! git commit -m "commit message"

git-branch-head-detached

The HEAD is detached and moves together with each new commit created. The newly created commit C6 is pointing to C0, that is now acting like a branch, but it is not.

Commits that are not reachable by any branch or tag will be garbage collected and removed from the repository after 30 days.

To avoid this, we simply need to create a new branch for the newly created commit and checkout to it. git checkout -b hotfix C6.

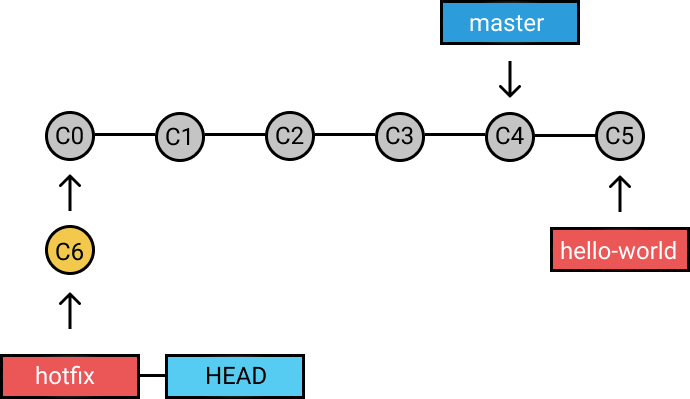

git-branch-hotfix

Always use branches when you are solving new problems to avoid disturbing your co-worker's features!
