Android Support Library 23.2のBottomSheetDialogの高さについて

Last updated at Posted at 2016-02-29

最初に

ModalなBottomSheetsを実装するのに、サード・パーティのライブラリを使っていた。
先日のDroidKaigi2016で、Support LibraryにBottomSheetsが実装されると聞き、待っていたらすぐリリリースされた!
なので、さっそくライブラリを置き換えてみた。

問題発生

通常のDialogFragmentをBottomSheetDialogFragmentに変えて実装してみた。

        @Override
        public void setupDialog(Dialog dialog, int style) {
            super.setupDialog(dialog, style);
            mContentView = View.inflate(getContext(), R.layout.dialog_content, null);
            dialog.setContentView(mContentView);
        }

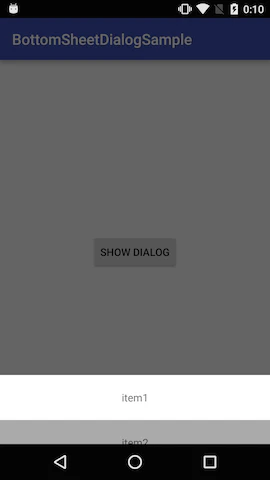

そうすると、このようにDialogの中身が全部表示されない。。。

問題解決

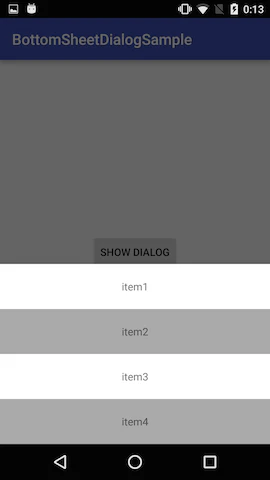

色々と試してみた結果、以下のように書くと中身が全部表示された。(∩´∀`)∩ワーイ

        @Override
        public void setupDialog(Dialog dialog, int style) {
            super.setupDialog(dialog, style);
            mContentView = View.inflate(getContext(), R.layout.dialog_content, null);
            dialog.setContentView(mContentView);

            mListener = new ViewTreeObserver.OnGlobalLayoutListener() {
                @Override
                public void onGlobalLayout() {
                    // BottomSheetの高さなどを設定
                    View parent = (View) mContentView.getParent();
                    BottomSheetBehavior behavior = BottomSheetBehavior.from(parent);
                    behavior.setPeekHeight(mContentView.getMeasuredHeight());
                    CoordinatorLayout.LayoutParams layoutParams =
                        (CoordinatorLayout.LayoutParams) ((View) mContentView.getParent()).getLayoutParams();
                    layoutParams.gravity = Gravity.TOP | Gravity.CENTER_HORIZONTAL;

                    // OnGlobalLayoutListenerを外す
                    if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.JELLY_BEAN) {
                        removeGlobalLayoutListener();
                    } else {
                        removeGlobalLayoutListenerCompat();
                    }
                }
            };
            mContentView.getViewTreeObserver().addOnGlobalLayoutListener(mListener);
        }



サンプルのコードは、GitHubで公開しています。
