Animation関連メモ(Animation Controllerの自動生成 + α)

やりたいこと

ここを参考 -> https://docs.unity3d.com/ScriptReference/Animations.AnimatorController.html

1. 32パターンの同じ構造をもつstateを用意
2. それぞれにBlendTreeをもつ
3. Transitionに関しては双方向
4. 自分自身に関してもTransitionをもつ

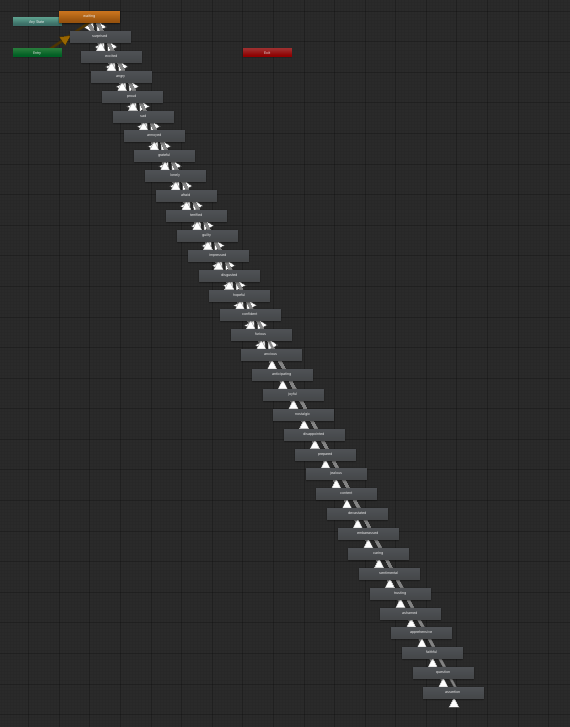

できたもの

スクリプト

CreateAnimationController.cs

using UnityEngine;
using UnityEditor;
using UnityEditor.Animations;
using System.Collections;
using System.Collections.Generic;

public class CreateAnimationController : MonoBehaviour
{
    [MenuItem("Window/Create Controller")]
    // Start is called before the first frame update

     //Referenced from empathetic dialogue
    static void CreateController()
    {
        List<string> _emotion_list = new List<string>{
        "surprised",
        "excited",
        "angry",
        "proud",
        "sad",
        "annoyed",
        "grateful",
        "lonely",
        "afraid",
        "terrified",
        "guilty",
        "impressed",
        "disgusted",
        "hopeful",
        "confident",
        "furious",
        "anxious",
        "anticipating",
        "joyful",
        "nostalgic",
        "disappointed",
        "prepared",
        "jealous",
        "content",
        "devastated",
        "embarrassed",
        "caring",
        "sentimental",
        "trusting",
        "ashamed",
        "apprehensive",
        "faithful",
        };

        var controller = UnityEditor.Animations.AnimatorController.CreateAnimatorControllerAtPath("Assets/Resources/AnimationCreationController.controller");

        foreach(var emotion in _emotion_list){
            controller.AddParameter(emotion, AnimatorControllerParameterType.Float);
        }
        var rootStatemachine = controller.layers[0].stateMachine;
        var waitingState = rootStatemachine.AddState("waiting");
        rootStatemachine.defaultState = waitingState;
        waitingState.motion = Resources.Load( "wait") as AnimationClip;

        List<UnityEditor.Animations.AnimatorState> _states = new List<UnityEditor.Animations.AnimatorState>();

        for(int i = 0; i < _emotion_list.Count; i++ ){
            var _blendTree = new UnityEditor.Animations.BlendTree();
            _blendTree.blendType = BlendTreeType.Simple1D;
            _blendTree.blendParameter = _emotion_list[i];
            _blendTree.name = _emotion_list[i];
            var _watingClip = Resources.Load("wait") as AnimationClip;
            var _emotionClip = Resources.Load(_emotion_list[i]) as AnimationClip;
            _blendTree.AddChild(_watingClip);
            _blendTree.AddChild(_emotionClip);
            var _state = rootStatemachine.AddState(_emotion_list[i]);
            _state.motion = _blendTree;
           _states.Add(_state);
        }
        for(int i = 0; i < _emotion_list.Count; i++ ){
            var wait2emotion = new UnityEditor.Animations.AnimatorStateTransition();
            wait2emotion.destinationState = _states[i];
            wait2emotion.hasExitTime = false;
            wait2emotion.AddCondition(AnimatorConditionMode.Greater, 0.2f, _emotion_list[i]);

            var emotion2wait = new UnityEditor.Animations.AnimatorStateTransition();
            emotion2wait.destinationState = waitingState;
            emotion2wait.hasExitTime = false;
            emotion2wait.AddCondition(AnimatorConditionMode.Less, 0.2f, _emotion_list[i]);
            _states[i].AddTransition(emotion2wait);

            var emotion2emotion = new UnityEditor.Animations.AnimatorStateTransition();
            emotion2emotion.hasExitTime = false;
            emotion2emotion.destinationState = _states[i];
            emotion2emotion.duration = 0.5f;
            emotion2emotion.AddCondition(AnimatorConditionMode.Greater, 0.1f, _emotion_list[i]);

            waitingState.AddTransition(wait2emotion);
        }
    }
}

コメント

ステイトはいつもクリップを落とすとできるやつ.

ステイトマシンは階層をもつレイヤー付きのステイトみたいなもの.

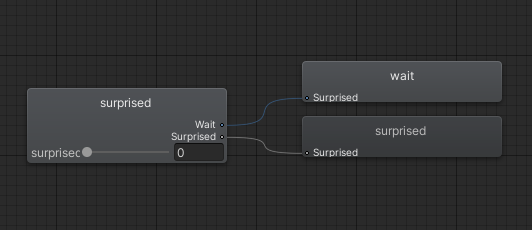

BlendTreeはモーション. つまり、アニメーションクリップと同じ扱い.

その他

デモ

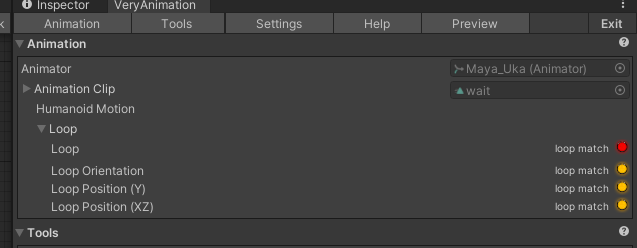

ループアニメーションの作成

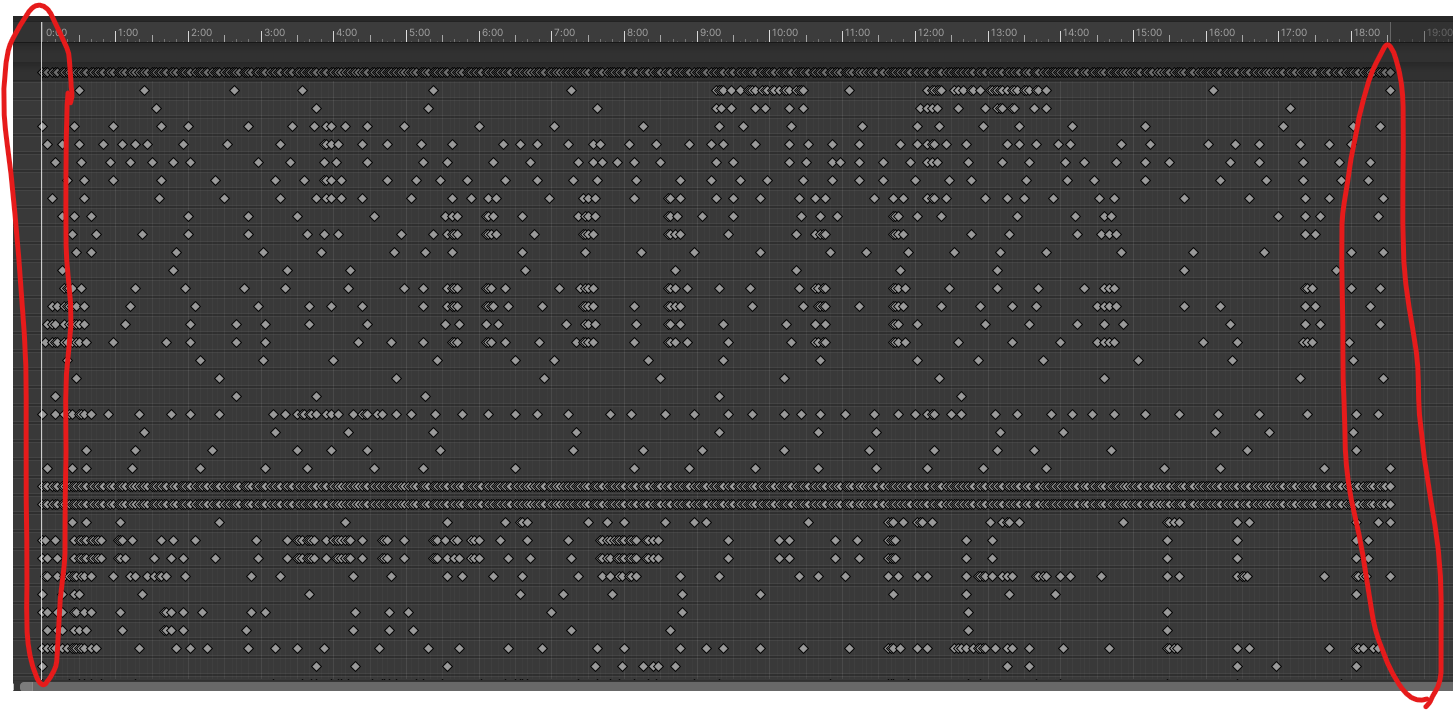

1 . 大体、端と端のキーをそろえる

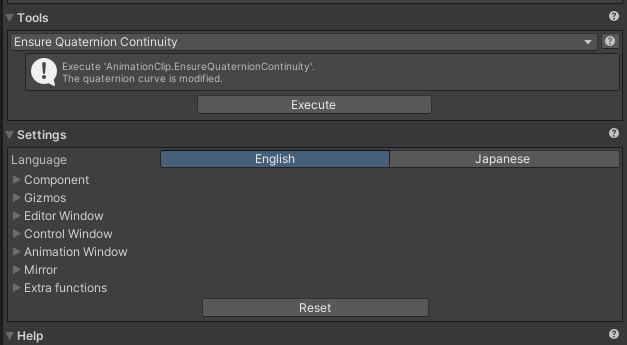

2 . Very AnimationのEnsure Quaternion Continuityをかける

3 . 自分のループに対して、 Transition Duraionをかける.

#追記

BlendTreeを使わない版

CreateAnimaitonController.cs

using UnityEngine;
using UnityEditor;
using UnityEditor.Animations;
using System.Collections;
using System.Collections.Generic;

public class CreateAnimationController : MonoBehaviour
{
    [MenuItem("Window/Create Controller")]
    // Start is called before the first frame update


    static void CreateController()
    {
        List<string> _emotion_list = new List<string>{
        "surprised",
        "excited",
        "angry",
        };

        var controller = UnityEditor.Animations.AnimatorController.CreateAnimatorControllerAtPath("Assets/Resources/AnimationCreationController.controller");

        foreach(var emotion in _emotion_list){
            controller.AddParameter(emotion, AnimatorControllerParameterType.Float);
        }
        var rootStatemachine = controller.layers[0].stateMachine;
        var waitingState = rootStatemachine.AddState("waiting");
        rootStatemachine.defaultState = waitingState;
        waitingState.motion = Resources.Load( "wait") as AnimationClip;

        List<UnityEditor.Animations.AnimatorState> _states = new List<UnityEditor.Animations.AnimatorState>();

        for(int i = 0; i < _emotion_list.Count; i++ ){
            var _watingClip = Resources.Load(""wait") as AnimationClip;
            var _emotionClip = Resources.Load(_emotion_list[i]) as AnimationClip;
            var _state = rootStatemachine.AddState(_emotion_list[i]);
            _state.motion = _emotionClip;
           _states.Add(_state);
        }
        for(int i = 0; i < _emotion_list.Count; i++ ){
            var wait2emotion = new UnityEditor.Animations.AnimatorStateTransition();
            wait2emotion.destinationState = _states[i];
            wait2emotion.hasExitTime = false;
            wait2emotion.AddCondition(AnimatorConditionMode.Greater, 0.8f, _emotion_list[i]);

            var emotion2wait = new UnityEditor.Animations.AnimatorStateTransition();
            emotion2wait.destinationState = waitingState;
            emotion2wait.hasExitTime = false;
            emotion2wait.AddCondition(AnimatorConditionMode.Less, 0.8f, _emotion_list[i]);
            _states[i].AddTransition(emotion2wait);

            var emotion2emotion = new UnityEditor.Animations.AnimatorStateTransition();
            emotion2emotion.hasExitTime = false;
            emotion2emotion.destinationState = _states[i];
            emotion2emotion.duration = 0.5f;
            emotion2emotion.AddCondition(AnimatorConditionMode.Greater, 0.1f, _emotion_list[i]);
            _states[i].AddTransition(emotion2emotion);

            waitingState.AddTransition(wait2emotion);
        }
    }
}
