Akka-http(with Akka-Actor-typed)サンプルコード(Scalatest/Karate/Gatlingテストあり)

Last updated at Posted at 2021-03-15

はじめに：Akka-httpでできること

akka-httpを利用することで、簡単にRest,もしくはステートフルなJson APIを構築することができる。
また、Akka-typedを組み合わせることで、シンプルな構成にできる。

サンプルコード

ビルド

plugins.sbt
addSbtPlugin("io.gatling" % "gatling-sbt" % "3.2.1")
build.sbt
name := "fakeactor"

version := "0.1"
scalaVersion := "2.13.5"

val ScalaTest: String = "3.2.2"
val AkkaHttpVersion: String = "10.2.4"
val AkkaActor: String = "2.6.12"

val gatlingVersion = "3.5.1"
val karateVersion = "1.0.0"

fork := true

//sbt-gatlingがmaven centralに存在しないので、bintrayRepoを追加する
resolvers += Resolver.bintrayRepo("gatling", "sbt-plugins")
enablePlugins(GatlingPlugin)

libraryDependencies ++= Seq(
  "io.gatling.highcharts" % "gatling-charts-highcharts" % gatlingVersion % "test,it",
  "io.gatling" % "gatling-test-framework" % gatlingVersion % "test,it",
  "com.intuit.karate" % "karate-gatling" % karateVersion % "test,it",

  "org.scalactic" %% "scalactic" % ScalaTest,
  "org.scalatest" %% "scalatest-wordspec" % ScalaTest % "test",
  "org.scalatest" %% "scalatest-diagrams" % ScalaTest % "test",
  "org.scalatest" %% "scalatest-shouldmatchers" % ScalaTest % "test",

  "com.typesafe.akka" %% "akka-http" % AkkaHttpVersion,
  "com.typesafe.akka" %% "akka-http-spray-json" % AkkaHttpVersion,

  "com.typesafe.akka" %% "akka-stream" % AkkaActor,
  "com.typesafe.akka" %% "akka-actor-typed" % AkkaActor,
  "com.typesafe.akka" %% "akka-actor-testkit-typed" % AkkaActor % Test,

  "ch.qos.logback" % "logback-classic" % "1.2.3"
)

Main

Main-httpサーバ

HttpServer.scala
import akka.http.scaladsl.server.Route
import akka.util.Timeout
import counter.actor.Command._
import spray.json.DefaultJsonProtocol._
import spray.json.RootJsonFormat
import akka.http.scaladsl.marshallers.sprayjson.SprayJsonSupport._

import scala.concurrent.duration._
import scala.concurrent.{Await, ExecutionContext, Future}
import scala.io.StdIn
import scala.util.{Failure, Success}

object HttpServer {

  def main(args: Array[String]): Unit = {
    // these are from spray-json

    implicit val system: ActorSystem[Command] =
      ActorSystem(CounterActor(), "http-typed-counter")
    // needed for the future flatMap/onComplete in the end
    implicit val executionContext: ExecutionContext = system.executionContext

    val route: Route = pathPrefix("counter") {
      concat(
        path("reset") {
          put {
            system ! Reset
            complete(StatusCodes.Accepted, "Reset")
          }
        },
        path("increment") {
          put {
            implicit val incrementFormat: RootJsonFormat[Command.Increase] =
              jsonFormat1(Command.Increase)
            entity(as[Command.Increase]) { command => // place a bid, fire-and-forget
              system ! command
              complete(StatusCodes.Accepted, "increment")
            }
          }
        },
        path("decrement") {
          put {
            implicit val decrementFormat: RootJsonFormat[Command.Decrease] =
              jsonFormat1(Command.Decrease)
            entity(as[Command.Decrease]) { command => // place a bid, fire-and-forget
              system ! command
              complete(StatusCodes.Accepted, "decrement")
            }
          }
        },
        get {
          implicit val counterResponseFormat: RootJsonFormat[Response.Count] =
            jsonFormat1(Response.Count)
          implicit val timeout: Timeout = 5.seconds

          // query the actor for the current auction state
          val getCount: Future[Response.Count] =
            system.ask(ReadCount).mapTo[Response.Count]
          complete(getCount)
        }
      )
    }

    val bindingFuture: Future[Http.ServerBinding] =
      Http(system).newServerAt("localhost", 9080).bind(route)
    println(s"Server online at http://localhost:9080/\nPress RETURN to stop...")
    //StdIn.readLine() // let it run until user presses return
    bindingFuture
    //.flatMap(_.unbind())
      .onComplete {
        case Success(value) =>
          println("finish")
        //system.terminate()
        case Failure(exception) =>
          println("fail")
          system.terminate()
      } // and shutdown when done

  }
}

Main-Actor

Command.scala

package counter.actor

import akka.actor.typed.ActorRef

/** Actrorへのコマンド */
sealed trait Command
private[counter] object Command {

  /** 初期値で初期化処理を行う */
  final case object Reset extends Command

  /** カウンターの値をvalueだけ増やす */
  final case class Increase(value: Int) extends Command

  /** カウンターの値をvalueだけ減らす */
  final case class Decrease(value: Int) extends Command

  // Responseを持つコマンドはなるべく分けて定義する
  /** その時点のカウンターの値を取得する */
  final case class ReadCount(replyTo: ActorRef[Response]) extends Command
}

/** Actrorからのメッセージ */
sealed trait Response
private[counter] object Response {
  final case class Count(value: Int) extends Response
}
CounterActor.scala
package counter.actor

import akka.actor.typed.scaladsl.{ActorContext, Behaviors}
import akka.actor.typed.{ActorRef, Behavior}

/** 計算ロジック */
private[counter] object CounterActor {

  /** 初期値 */
  private val InitialCount: Int = 0

  /** 初期値で初期化処理を行う */
  def apply(): Behavior[Command] = Behaviors.setup { context =>
    context.log.info(s"actor started: ${context.self.path}")
    changeCount(InitialCount)
  }

  /** nextCountに値を変更する */
  private def changeCount(nextCount: Int): Behavior[Command] = {
    counter(nextCount)
  }

  /** Behavior(コマンドに対する振る舞い) */
  private def counter(currentCount: Int): Behaviors.Receive[Command] =
    Behaviors.receive { (context: ActorContext[Command], command: Command) =>
      context.log.debug(s"command:$command,current:$currentCount")
      command match {
        case Command.Kill                 => killed()
        case Command.Reset                => changeCount(InitialCount)
        case Command.Increase(value: Int) => changeCount(currentCount + value)
        case Command.Decrease(value: Int) => changeCount(currentCount - value)
        case Command.ReadCount(replyTo: ActorRef[Response]) =>
          replyTo ! Response.Count(currentCount)
          Behaviors.same
      }
    }
}

テスト

テスト(UT)

CounterActorTest.scala
package counter.actor

import akka.actor.testkit.typed.scaladsl.{ScalaTestWithActorTestKit, TestProbe}
import akka.actor.typed.ActorRef
import org.scalatest.diagrams.Diagrams
import org.scalatest.wordspec.AnyWordSpecLike

class CounterActorTest
    extends ScalaTestWithActorTestKit
    with AnyWordSpecLike
    with Diagrams {
  // ScalaTestWithActorTestKitを継承しているので、テストがすべて終わったら、ActorSystem はシャットダウンされる。

  "コマンド単体テスト" when afterWord("初期値=0") {
    val actor: ActorRef[Command] =
      testKit.spawn(CounterActor(), "typed-actor-test")
    val resProbe: TestProbe[Response] =
      testKit.createTestProbe[Response]
    "ReadCount" must {
      "count=0" in {
        actor ! Command.Reset
        actor ! Command.ReadCount(resProbe.ref)

        resProbe.expectMessage(Response.Count(0))
        //　パターン2でもよい(複雑なアサーション向け)
        //  val res: Response.Count = resProbe.receiveMessage()
        //　assert(res.value === 0)
      }
    }
    "Increase(n)" must {
      val change: Int = 21
      s"count+=$change" in {
        actor ! Command.Reset
        actor ! Command.Increase(change)
        actor ! Command.ReadCount(resProbe.ref)

        resProbe.expectMessage(Response.Count(21))
      }
    }
    "Decrease(n)" must {
      val change: Int = 21
      s"count-=$change" in {
        actor ! Command.Reset
        actor ! Command.Decrease(change)
        actor ! Command.ReadCount(resProbe.ref)

        resProbe.expectMessage(Response.Count(-1 * change))
      }
    }
    "kill" must {
      s"killed" in {
        actor ! Command.Reset
        actor ! Command.Kill
        actor ! Command.ReadCount(resProbe.ref)

        resProbe.expectMessage(Response.Killed)
      }
    }
  }

  "サイクルテスト" when afterWord("多数回加算したとき") {
    val actor: ActorRef[Command] =
      testKit.spawn(CounterActor(), "typed-actor-test-loop")
    val resProbe: TestProbe[Response] =
      testKit.createTestProbe[Response]
    "Increase(n)" must {
      s"100回加算でき、結果も一致すること" in {
        actor ! Command.Reset

        (1 to 100).map(Command.Increase).foreach(actor.tell)

        actor ! Command.ReadCount(resProbe.ref)
        resProbe.receiveMessage() match {
          case Response.Count(value: Int) => {
            println(value)
            assert(value === (1 to 100).sum)
          }
          case Response.Killed => {
            fail("killed")
          }
        }
      }
    }
  }
}

テスト(E2E)

KarateE2ESimulation.scala
package counter.actor

import com.intuit.karate.gatling.KarateProtocol
import com.intuit.karate.gatling.PreDef._
import com.intuit.karate.http.HttpRequest
import io.gatling.core.Predef._
import io.gatling.core.structure.ScenarioBuilder

/** E2E */
class KarateE2ESimulation extends Simulation {

  val protocol: KarateProtocol = karateProtocol()
  protocol.nameResolver = (req: HttpRequest, _) => req.getUrl

  val search: ScenarioBuilder =
    scenario("e2e").exec(karateFeature("classpath:counter.feature"))

  setUp(search.inject(atOnceUsers(1)).protocols(protocol))
}
karate-config.js
function() {
  var config = {
      urlBase: 'http://localhost:9080/',
  };
  karate.configure('connectTimeout', 5000);
  karate.configure('readTimeout', 5000);
  return config;
}
counter.feature
Feature: Karate sample

  Background:
    * url urlBase

  Scenario Outline: e2e-once
    Given path <path>
    And header Accept = <values>
    And request <req>
    When method <method>
    * print <number>
    Then status <status>
    And match <expression>
    Examples:
      | number | path                | req          | values             | method | status | expression        |
      | 1      | 'counter/reset'     | "#ignore"    | 'text/plain'       | put    | 202    | $ == "#ignore"    |
      | 2      | 'counter'           | "#ignore"    | 'application/json' | get    | 200    | $ == {"value": 0} |
      | 3      | 'counter/increment' | {"value": 4} | 'text/plain'       | put    | 202    | $ == "#ignore"    |
      | 4      | 'counter'           | "#ignore"    | 'application/json' | get    | 200    | $ == {"value": 4} |
      | 5      | 'counter/decrement' | {"value": 1} | 'text/plain'       | put    | 202    | $ == "#ignore"    |
      | 6      | 'counter'           | "#ignore"    | 'application/json' | get    | 200    | $ == {"value": 3} |
      | 7      | 'counter/reset'     | "#ignore"    | 'text/plain'       | put    | 202    | $ == "#ignore"    |
      | 8      | 'counter'           | "#ignore"    | 'application/json' | get    | 200    | $ == {"value": 0} |
      | 9      | 'counter/increment' | {"value": 2} | 'text/plain'       | put    | 202    | $ == "#ignore"    |
      | 10     | 'counter'           | "#ignore"    | 'application/json' | get    | 200    | $ == {"value": 2} |

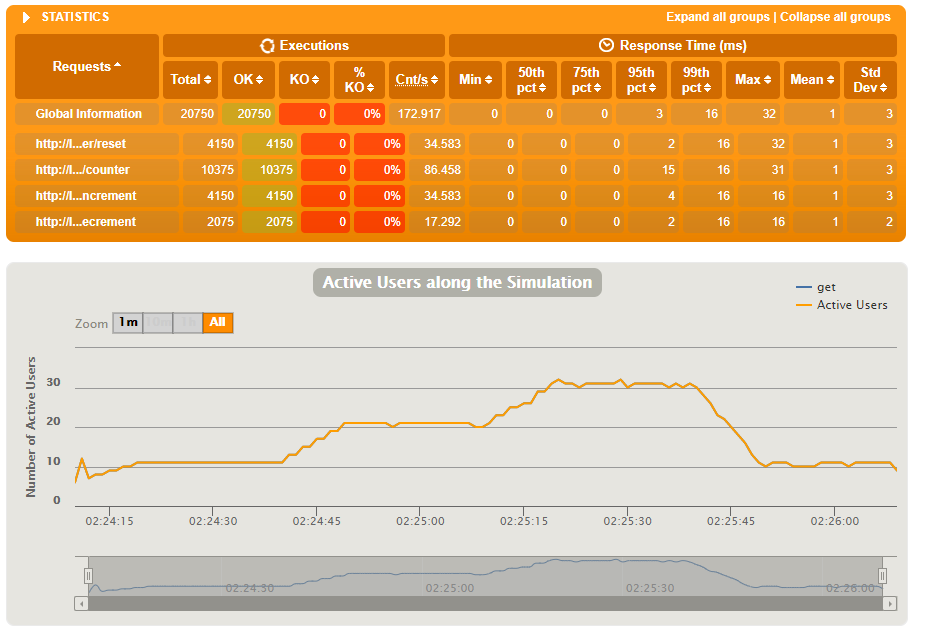

テスト(負荷テスト)

KarateGatlingSimulation.scala
import com.intuit.karate.gatling.KarateProtocol
import com.intuit.karate.gatling.PreDef._
import com.intuit.karate.http.HttpRequest
import io.gatling.core.Predef._
import io.gatling.core.controller.inject.open.OpenInjectionStep
import io.gatling.core.structure.ScenarioBuilder

import scala.concurrent.duration._

class KarateGatlingSimulation extends Simulation {

  // Karate定義

  // Gatling-開始時のレート(1ステップ目の1/3程度を推奨)
  val startRate: Int = 5
  // 安定負荷のレートステップ(TPSはfeatureのパターン×ユーザの数となるので注意)
  val stableRates: Seq[Int] = Seq(15, 30)
  // 負荷を段階的に高める時間
  val rampUpTime: FiniteDuration = 10.seconds
  // 安定負荷のテスト時間(TPSはfeatureのパターン×ユーザの数となるので注意)
  val stableTime: FiniteDuration = 30.seconds

  val steps: Seq[OpenInjectionStep] =
    stableRates
      .foldLeft((Seq.empty[OpenInjectionStep], startRate))(rampRateBuilder)
      ._1

  private def rampRateBuilder(result: (Seq[OpenInjectionStep], Int),
                              next: Int): (Seq[OpenInjectionStep], Int) = {
    (result._1 ++ Seq(rampUsersPerSec(result._2) to next during rampUpTime,
                      constantUsersPerSec(next) during stableTime),
     next)
  }

  val protocol: KarateProtocol = karateProtocol()
  protocol.nameResolver = (req: HttpRequest, _) => req.getUrl
  // Karateシナリオ定義
  val search: ScenarioBuilder =
    scenario("get").exec(karateFeature("classpath:counter.feature"))

  // Karate・Gatlingシナリオ紐づけ
  setUp(search.inject(steps).protocols(protocol))

}
karate-config.js
function() {
  var config = {
      urlBase: 'http://localhost:9080/',
  };
  karate.configure('connectTimeout', 5000);
  karate.configure('readTimeout', 5000);
  return config;
}
counter.feature
Feature: Karate sample

  Background:
    * url urlBase

  Scenario Outline: get
    Given path <path>
    And header Accept = <values>
    And request <req>
    When method <method>
    * print <number>
    Then status <status>
    And match <expression>
    Examples:
      | number | path                | req          | values             | method | status | expression              |
      | 1      | 'counter/reset'     | "#ignore"    | 'text/plain'       | put    | 202    | $ == "#ignore"          |
      | 2      | 'counter'           | "#ignore"    | 'application/json' | get    | 200    | $ == {"value": #number} |
      | 3      | 'counter/increment' | {"value": 4} | 'text/plain'       | put    | 202    | $ == "#ignore"          |
      | 4      | 'counter'           | "#ignore"    | 'application/json' | get    | 200    | $ == {"value": #number} |
      | 5      | 'counter/decrement' | {"value": 1} | 'text/plain'       | put    | 202    | $ == "#ignore"          |
      | 6      | 'counter'           | "#ignore"    | 'application/json' | get    | 200    | $ == {"value": #number} |
      | 7      | 'counter/reset'     | "#ignore"    | 'text/plain'       | put    | 202    | $ == "#ignore"          |
      | 8      | 'counter'           | "#ignore"    | 'application/json' | get    | 200    | $ == {"value": #number} |
      | 9      | 'counter/increment' | {"value": 2} | 'text/plain'       | put    | 202    | $ == "#ignore"          |
      | 10     | 'counter'           | "#ignore"    | 'application/json' | get    | 200    | $ == {"value": #number} |



2
1
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
2
1

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
