PipeRiderはdbtの相棒になる

Last updated at Posted at 2022-07-11

本文記載時点はPipeRider 0.4.1を参考にしています。

はじめに

PipeRiderはdbtプロジェクトのトランスフォーメーションされたデータモデルをプロファイリングし、dbtのアサーションとPipeRiderのアサーション実行し、結果によってリポートを生成する

リクワイアメント

範例SQLite Databaseの用意する

curl -o sp500.db https://piperider-data.s3.ap-northeast-1.amazonaws.com/getting-started/sp500_20220401.db

SQLite adapter for dbt

pip install dbt-sqlite

dbt-sqlite用のcrypo library fileを用意する
crypo library fileをダウンロードする

Mac Intelの場合はcrypto.dylib
Mac AppleSiliconの場合はcrypto.arm64.dylib

dbtプロジェクトを初期化する

dbt init

Running with dbt=1.1.1
Enter a name for your project (letters, digits, underscore): sp500_index

Which database would you like to use?
[1] sqlite

(Don't see the one you want? https://docs.getdbt.com/docs/available-adapters)

Enter a number: 1

~/.dbt/profiles.ymlを編集する

extentionsのパス
crypto.arm64.dylib:point_right_tone2: crypto.arm64を入力してください

sp500_index:
  outputs:

    dev:
      type: sqlite
      threads: 1
      database: sp500
      schema: 'main'
      schemas_and_paths:
        main: '/example/path/to/qiita/sp500.db'
      schema_directory: '/example/path/to/qiita/'
      extensions:
        - '/example/path/to/qiita/crypto.arm64'

  target: dev

dbtプロジェクトの設定を確認する

cd  sp500_index
dbt debug --profile sp500_index

Running with dbt=1.1.1
dbt version: 1.1.1
python version: 3.9.12
python path: /example/path/to/qiita/pyenv/bin/python3.9
os info: macOS-12.3-arm64-arm-64bit
Using profiles.yml file at /example/path/to/.dbt/profiles.yml
Using dbt_project.yml file at /example/path/to/qiita/sp500_index/dbt_project.yml

Configuration:
  profiles.yml file [OK found and valid]
  dbt_project.yml file [OK found and valid]

Required dependencies:
 - git [OK found]

Connection:
  database: sp500
  schema: main
  schemas_and_paths: {'main': '/example/path/to/qiita/sp500.db'}
  schema_directory: /example/path/to/qiita/
  Connection test: [OK connection ok]

All checks passed!

dbtでトランスフォーメーション

データモデルにデータをトランスフォーメーションする
第一モデルmodels/example/my_first_dbt_model.sqlを編集する

with source_data as (

    SELECT * FROM PRICE
    LEFT JOIN SYMBOL ON SYMBOL.SYMBOL = PRICE.SYMBOL
    WHERE PRICE.DATE = '2022-01-04'
)

SELECT *
FROM source_data

第一モデルにより、第二モデルmodels/example/my_second_dbt_model.sqlを編集する

SELECT SYMBOL, DATE, OPEN, HIGH, LOW, CLOSE, VOLUME, ADJCLOSE, MA5, MA20,MA60, NAME, COUNTRY, EXCHANGE_CODE, SECTOR, INDUSTRY
FROM {{ ref('my_first_dbt_model') }}
WHERE COUNTRY = 'United States'

データ審査のルールmodels/example/schema.ymlを編集する

version: 2

models:
  - name: my_first_dbt_model
    description: "Record Date on 2022-01-04"
    columns:
      - name: SYMBOL
        description: "Stock symbol"
        tests:
          - unique
          - not_null

  - name: my_second_dbt_model
    description: "Stocks in the U.S."
    columns:
      - name: OPEN
        description: "Opening price"
        tests:
          - not_null

データモデルを生成する

dbt build

Output 範例

14:45:58  Running with dbt=1.1.1
14:45:58  Found 2 models, 3 tests, 0 snapshots, 0 analyses, 173 macros, 0 operations, 0 seed files, 0 sources, 0 exposures, 0 metrics
14:45:58
14:45:58  Concurrency: 1 threads (target='dev')
14:45:58
14:45:58  1 of 5 START view model main.my_first_dbt_model ................................ [RUN]
14:45:58  1 of 5 OK created view model main.my_first_dbt_model ........................... [OK in 0.07s]
14:45:58  2 of 5 START test not_null_my_first_dbt_model_SYMBOL ........................... [RUN]
14:45:58  2 of 5 PASS not_null_my_first_dbt_model_SYMBOL ................................. [PASS in 0.07s]
14:45:58  3 of 5 START test unique_my_first_dbt_model_SYMBOL ............................. [RUN]
14:45:58  3 of 5 PASS unique_my_first_dbt_model_SYMBOL ................................... [PASS in 0.04s]
14:45:58  4 of 5 START view model main.my_second_dbt_model ............................... [RUN]
14:45:58  4 of 5 OK created view model main.my_second_dbt_model .......................... [OK in 0.02s]
14:45:58  5 of 5 START test not_null_my_second_dbt_model_OPEN ............................ [RUN]
14:45:58  5 of 5 PASS not_null_my_second_dbt_model_OPEN .................................. [PASS in 0.04s]
14:45:58
14:45:58  Finished running 2 view models, 3 tests in 0.40s.
14:45:58
14:45:58  Completed successfully
14:45:58
14:45:58  Done. PASS=5 WARN=0 ERROR=0 SKIP=0 TOTAL=5

データモデルをテストする

dbt test

Output 範例

14:46:53  Running with dbt=1.1.1
14:46:53  Found 2 models, 3 tests, 0 snapshots, 0 analyses, 173 macros, 0 operations, 0 seed files, 0 sources, 0 exposures, 0 metrics
14:46:53
14:46:53  Concurrency: 1 threads (target='dev')
14:46:53
14:46:53  1 of 3 START test not_null_my_first_dbt_model_SYMBOL ........................... [RUN]
14:46:53  1 of 3 PASS not_null_my_first_dbt_model_SYMBOL ................................. [PASS in 0.07s]
14:46:53  2 of 3 START test not_null_my_second_dbt_model_OPEN ............................ [RUN]
14:46:53  2 of 3 PASS not_null_my_second_dbt_model_OPEN .................................. [PASS in 0.07s]
14:46:53  3 of 3 START test unique_my_first_dbt_model_SYMBOL ............................. [RUN]
14:46:53  3 of 3 PASS unique_my_first_dbt_model_SYMBOL ................................... [PASS in 0.04s]
14:46:53
14:46:53  Finished running 3 tests in 0.28s.
14:46:53
14:46:53  Completed successfully
14:46:53
14:46:53  Done. PASS=3 WARN=0 ERROR=0 SKIP=0 TOTAL=3

PipeRiderの参入

pip install piperider

PipeRiderは自動的にdbtのdbt_project.ymlを読み込む

piperider init

Initialize piperider to path /example/path/to/qiita/sp500_index/.piperider
Start to search dbt project ...
Use dbt project file: /example/path/to/qiita/sp500_index/dbt_project.yml
─────────────────────────────────────────────────────────────────────────────────────────── .piperider/config.yml ────────────────────────────────────────────────────────────────────────────────────────────
   1 dataSources:
   2 - name: sp500_index
   3   type: sqlite
   4   dbt:
   5     profile: sp500_index
   6     target: dev
   7     projectDir: .
   8 telemetry:
   9   id: 181f0172e54546c99ea971d0a7b913e2

Next step:
  Please execute command 'piperider diagnose' to verify configuration

PipeRiderの設定を確認する

piperider diagnose

Diagnosing...
PipeRider Version: 0.4.1
Check config files:
  /example/path/to/qiita/sp500_index/.piperider/config.yml: [OK]
✅ PASS

Check format of data sources:
  sp500_index: [OK]
✅ PASS

Check connections:
  DBT: sqlite > sp500_index > dev
  Name: sp500_index
  Type: sqlite
  Available Tables: ['ACTION', 'PRICE', 'SYMBOL']
  Connection: [OK]
✅ PASS

Check assertion files:
  /example/path/to/qiita/sp500_index/.piperider/assertions/my_second_dbt_model.yml: [OK]
  /example/path/to/qiita/sp500_index/.piperider/assertions/my_first_dbt_model.yml: [OK]
✅ PASS

🎉 You are all set!


Next step:
  Please execute command 'piperider run' to generate your second report

dbtの生成されたデータモデルをプロファイングし、、dbtのアサーションとPipeRiderのアサーション実行し、結果によってリポートを生成す

piperider run --dbt-test

Output 範例

DataSource: sp500_index
──────────────────────────────────────────────────────────────────────────────────────────────────── Validating ────────────────────────────────────────────────────────────────────────────────────────────────────
everything is OK.
─────────────────────────────────────────────────────────────────────────────────────────────────── Running dbt ────────────────────────────────────────────────────────────────────────────────────────────────────
dbt working dir: .
──────────────────────────────────────────────────────────────────────────────────────────────────── Profiling ─────────────────────────────────────────────────────────────────────────────────────────────────────
fetching metadata for table 'my_first_dbt_model'
fetching metadata for table 'my_second_dbt_model'
profiling [my_first_dbt_model.SYMBOL] type=VARCHAR(16777216)
profiling [my_first_dbt_model.DATE] type=DATE
profiling [my_first_dbt_model.OPEN] type=NUMERIC(10, 2)
profiling [my_first_dbt_model.HIGH] type=NUMERIC(10, 2)
profiling [my_first_dbt_model.LOW] type=NUMERIC(10, 2)
profiling [my_first_dbt_model.CLOSE] type=NUMERIC(10, 2)
profiling [my_first_dbt_model.VOLUME] type=NUMERIC(38, 0)
profiling [my_first_dbt_model.ADJCLOSE] type=NUMERIC(10, 2)
profiling [my_first_dbt_model.MA5] type=NUMERIC(10, 2)
profiling [my_first_dbt_model.MA20] type=NUMERIC(10, 2)
profiling [my_first_dbt_model.MA60] type=NUMERIC(10, 2)
profiling [my_first_dbt_model.SYMBOL:1] type=VARCHAR(16777216)
profiling [my_first_dbt_model.NAME] type=VARCHAR(16777216)
profiling [my_first_dbt_model.START_DATE] type=DATE
profiling [my_first_dbt_model.END_DATE] type=DATE
profiling [my_first_dbt_model.DESCRIPTION] type=VARCHAR(16777216)
profiling [my_first_dbt_model.EXCHANGE_CODE] type=VARCHAR(16777216)
profiling [my_first_dbt_model.MARKET] type=VARCHAR(16777216)
profiling [my_first_dbt_model.COUNTRY] type=VARCHAR(16777216)
profiling [my_first_dbt_model.SECTOR] type=VARCHAR(16777216)
profiling [my_first_dbt_model.INDUSTRY] type=VARCHAR(16777216)
profiling [my_first_dbt_model.RECOMMENDATION_KEY] type=VARCHAR(16777216)
profiling [my_second_dbt_model.SYMBOL] type=VARCHAR(16777216)
profiling [my_second_dbt_model.DATE] type=DATE
profiling [my_second_dbt_model.OPEN] type=NUMERIC(10, 2)
profiling [my_second_dbt_model.HIGH] type=NUMERIC(10, 2)
profiling [my_second_dbt_model.LOW] type=NUMERIC(10, 2)
profiling [my_second_dbt_model.CLOSE] type=NUMERIC(10, 2)
profiling [my_second_dbt_model.VOLUME] type=NUMERIC(38, 0)
profiling [my_second_dbt_model.ADJCLOSE] type=NUMERIC(10, 2)
profiling [my_second_dbt_model.MA5] type=NUMERIC(10, 2)
profiling [my_second_dbt_model.MA20] type=NUMERIC(10, 2)
profiling [my_second_dbt_model.MA60] type=NUMERIC(10, 2)
profiling [my_second_dbt_model.NAME] type=VARCHAR(16777216)
profiling [my_second_dbt_model.COUNTRY] type=VARCHAR(16777216)
profiling [my_second_dbt_model.EXCHANGE_CODE] type=VARCHAR(16777216)
profiling [my_second_dbt_model.SECTOR] type=VARCHAR(16777216)
profiling [my_second_dbt_model.INDUSTRY] type=VARCHAR(16777216)

PipeRiderから自動生成のアサーションを作成するか？

noを入力してください、もし試したいからyesを入力してください

No assertion found
Do you want to auto generate recommended assertions for this datasource [Yes/no]? no

Output 範例

────────────────────────────────────────────────────────────────────────────────────────── Generating Assertion Templates ──────────────────────────────────────────────────────────────────────────────────────────
Template Assertion: /example/path/to/qiita/sp500_index/.piperider/assertions/my_second_dbt_model.yml
Template Assertion: /example/path/to/qiita/sp500_index/.piperider/assertions/my_first_dbt_model.yml
──────────────────────────────────────────────────────────────────────────────────────────────── Assertion Results ─────────────────────────────────────────────────────────────────────────────────────────────────
─────────────────────────────────────────────────────────────────────────────────────────────────────── dbt ────────────────────────────────────────────────────────────────────────────────────────────────────────
[  OK  ] my_first_dbt_model.SYMBOL  test.sp500_index.not_null_my_first_dbt_model_SYMBOL.06ca293b81  Message: None
[  OK  ] my_first_dbt_model.SYMBOL  test.sp500_index.unique_my_first_dbt_model_SYMBOL.0463684cd6    Message: None
[  OK  ] my_second_dbt_model.OPEN   test.sp500_index.not_null_my_second_dbt_model_OPEN.fa199efe22   Message: None
───────────────────────────────────────────────────────────────────────────────────────────────────── Summary ──────────────────────────────────────────────────────────────────────────────────────────────────────
Table 'my_second_dbt_model'
  16 columns profiled
  1 dbt test executed

Table 'my_first_dbt_model'
  22 columns profiled
  2 dbt test executed

Generating reports from: /example/path/to/qiita/sp500_index/.piperider/outputs/latest/run.json
Report generated in /example/path/to/qiita/sp500_index/.piperider/outputs/latest/index.html

Next step:
  Please execute command 'piperider run' to generate your second report

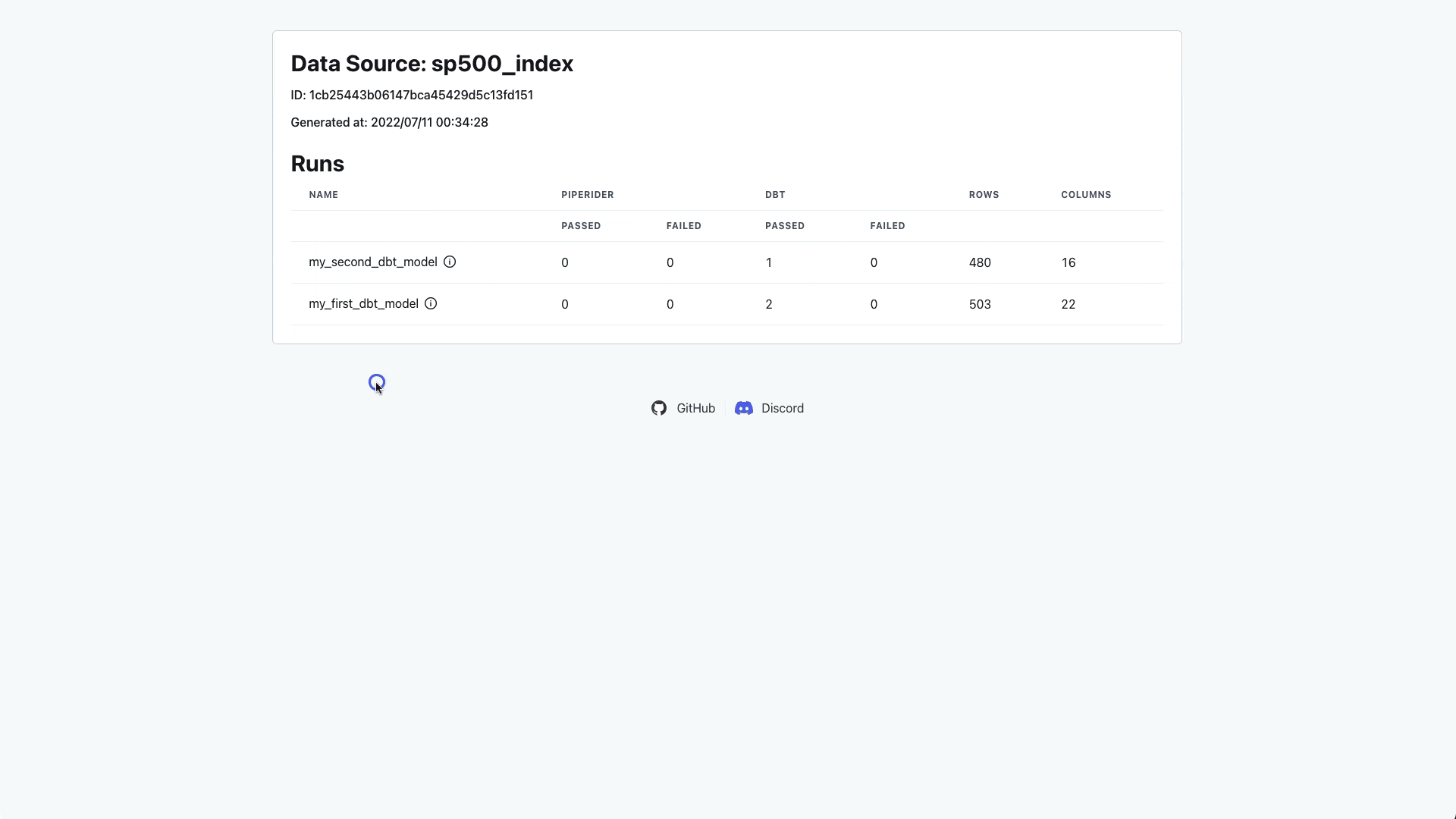

Output 範例 (ブラウザで/example/path/to/qiita/sp500_index/.piperider/outputs/latest/index.htmlリポートを見る)

Recording #3.gif

以上です
