MVCからVIPERに変えて得られたこと

Posted at

本記事について

本記事では、VIPERアーキテクチャについて学習し、MVCからVIPERに変えて得られたことについてご紹介します。

VIPERアーキテクチャとは？

  • VIPERとは、単一責務原則に基づき、Cleanでモジュール化された構造を実現するアーキテクチャ
  • 「VIPER」は、View、Interactor、Presenter、Entity、Router の頭文字を取った造語

スクリーンショット 2021-08-22 20.18.06.png

雑なMVCからVIPERアーキテクチャに変えてみた

過去にMVC開発したアプリをVIPERアーキテクチャに変えて、得られる恩恵について紹介します。

全体像

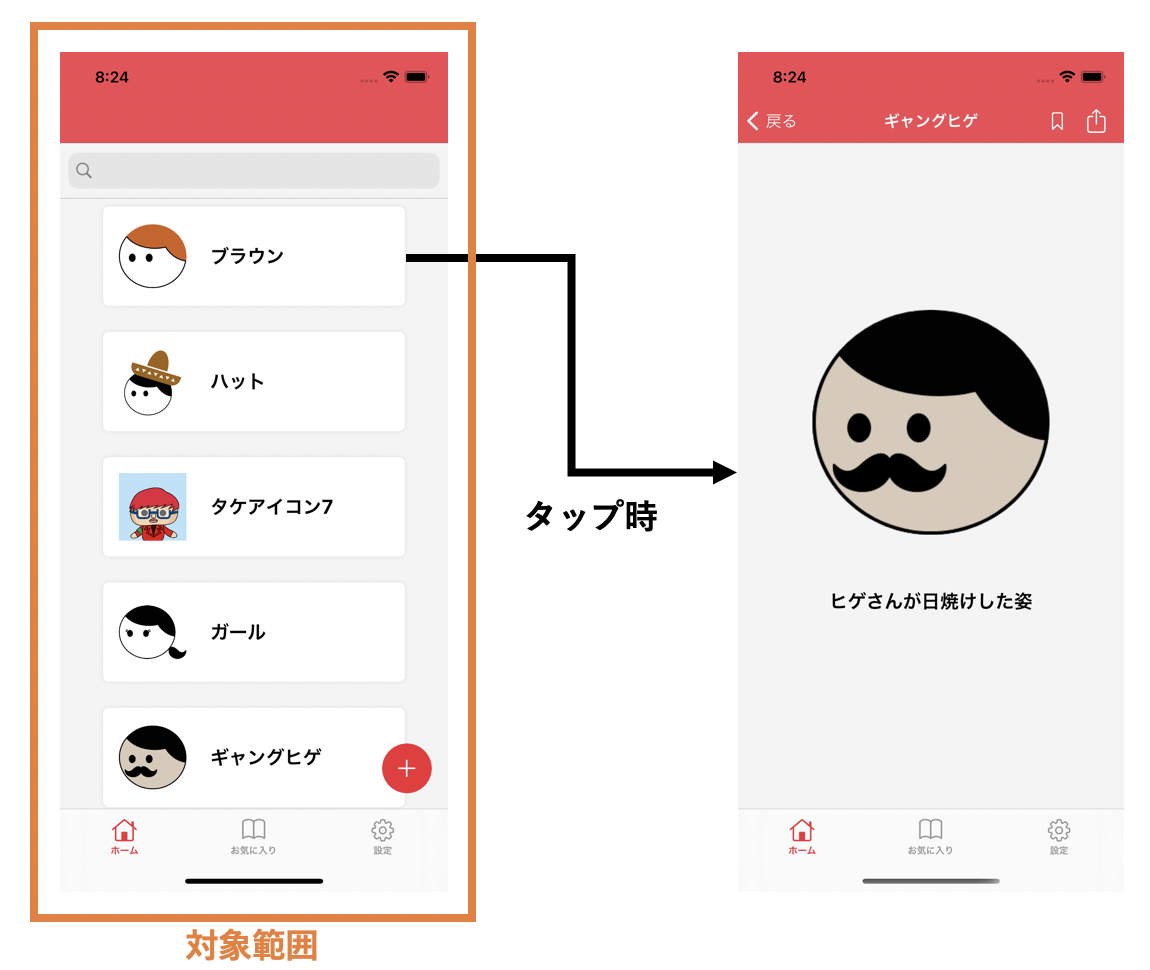

今回はリスト表示の箇所をVIPERに変えます。

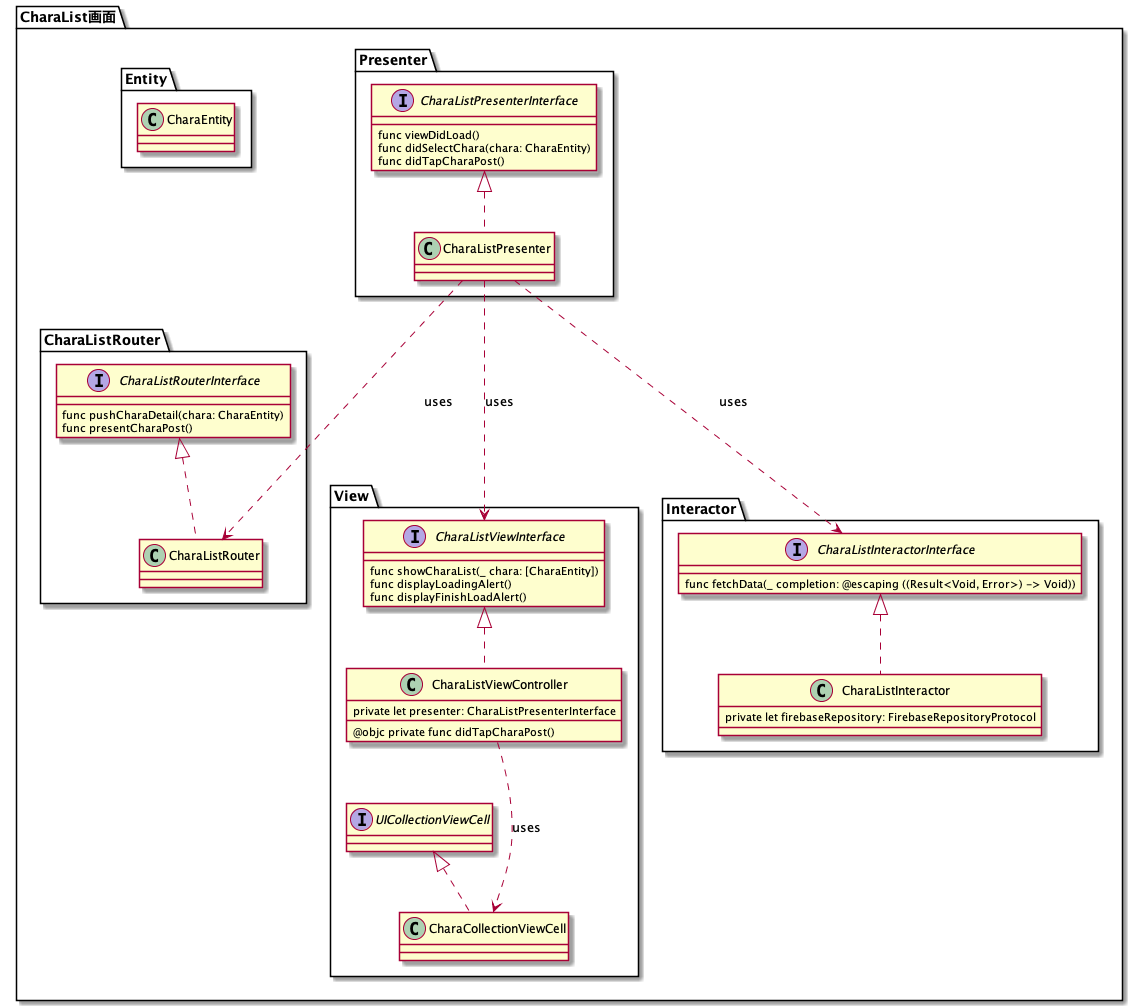

クラス図は以下の通りです。

View

  • 役割
    • Presenterから指示された画面の更新
    • Presenterへのイベントの通知
CharaListViewController.swift

import UIKit

protocol CharaListViewInterface: AnyObject {
    func displayCharaList(_ chara: [CharaEntity])
    func displayLodingAlert()
    func displayFinishLodingAlert()
    func alertListError(error: Error)
}


final class CharaListViewController: UIViewController {

    @IBOutlet weak var charaCollectionView: UICollectionView! {
        didSet {
            charaCollectionView.dataSource = self
            charaCollectionView.delegate = self
            charaCollectionView.registerNib(cellType: CharaCollectionViewCell.self)
            charaCollectionView.backgroundColor = Asset.viewBgColor.color
        }
    }

    @IBOutlet weak var postCharaButton: UIButton! {
        didSet {
            postCharaButton.allMaskCorner()
            postCharaButton.addTarget(self, action: #selector(movePost), for: .touchUpInside)
        }
    }

    // プロトコルを介してPresenterへアクセス
    var presenter: CharaListPresenterInterface!
    private var chara: [CharaEntity] = []

    override func viewDidLoad() {
        super.viewDidLoad()
        presenter.viewDidLoad()
    }
}

// MARK: - private method

private extension CharaListViewController {
    @objc
    private func movePost() {
        presenter.didTapCharaPost()
    }
}

// MARK: - Interface

extension CharaListViewController: CharaListViewInterface {

    func displayCharaList(_ chara: [CharaEntity]) {
        self.chara = chara
        self.searchResultChara = chara
        DispatchQueue.main.async {
            self.charaCollectionView.reloadData()
        }
    }

    func displayLodingAlert() {
        self.startLoad()
    }

    func displayFinishLodingAlert() {
        self.doneMessage()
    }

    func alertListError(error: Error) {
        self.alertError(error: error)
    }

}

// MARK: - UICollection Delegate

extension CharaListViewController: UICollectionViewDataSource {

    func collectionView(_ collectionView: UICollectionView, numberOfItemsInSection section: Int) -> Int {
        return self.searchResultChara.count
    }

    func collectionView(_ collectionView: UICollectionView, cellForItemAt indexPath: IndexPath) -> UICollectionViewCell {
        let cell = collectionView.dequeueReusableCell(for: indexPath) as CharaCollectionViewCell
        let component = CharaCollectionViewCell.Component(charaInfo: self.searchResultChara[indexPath.row])
        cell.setupCell(component: component)
        return cell
    }

}

extension CharaListViewController: UICollectionViewDelegate {

    func collectionView(_ collectionView: UICollectionView, didSelectItemAt indexPath: IndexPath) {
        self.presenter.didSelectChara(selectedChara: self.searchResultChara[indexPath.row])
    }

}

Presenter

  • 役割
    • 各要素間の橋渡し役
CharaListPresenter.swift

import Foundation

protocol CharaListPresenterInterface: AnyObject {
    func viewDidLoad()
    func didSelectChara(selectedChara: CharaEntity)
    func didTapCharaPost()
}

final class CharaListPresenter {
    private let view: CharaListViewInterface
    private let interactor: CharaListInteractorInterface
    private let router: CharaListRouterInterface

    init(
        view: CharaListViewInterface,
        interactor: CharaListInteractorInterface,
        router: CharaListRouter
    ) {
        self.view = view
        self.interactor = interactor
        self.router = router
    }
}

extension CharaListPresenter: CharaListPresenterInterface {
    func viewDidLoad() {
        self.view.displayLodingAlert()

        self.interactor.fetchCharaList { result in
            self.view.displayFinishLodingAlert()

            switch result {
            case let .success(characters):
                self.view.displayCharaList(characters)
            case let .failure(error):
                self.view.alertListError(error: error)
            }
        }
    }

    func didSelectChara(selectedChara: CharaEntity) {
        interactor.saveSpotlightChara(selectedChara: selectedChara)
        interactor.saveUserDefaultsChara(selectedChara: selectedChara)
        router.pushCharaDetail(chara: selectedChara)
    }

    func didTapCharaPost() {
        router.presentCharaPost()
    }
}

Interactor

  • 役割
    • データ操作とユースケースの定義
CharaListInteractor.swift

import Foundation

protocol CharaListInteractorInterface: AnyObject {
    func fetchCharaList(_ completion: @escaping ((Result<[CharaEntity], Error>) -> Void))
    func saveSpotlightChara(selectedChara: CharaEntity)
    func saveUserDefaultsChara(selectedChara: CharaEntity)
}

final class CharaListInteractor: CharaListInteractorInterface {
    private let firebaseRepository: FirebaseRepositoryProtocol
    private let spotlight: SpotlightRepositoryProtocol

    init(firebaseRepository: FirebaseRepositoryProtocol, spotlight: SpotlightRepositoryProtocol) {
        self.firebaseRepository = firebaseRepository
        self.spotlight = spotlight
    }

    func fetchCharaList(_ completion: @escaping ((Result<[CharaEntity], Error>) -> Void)) {
        firebaseRepository.fetchChara { completion($0) }
    }

    func saveSpotlightChara(selectedChara: CharaEntity) {
        spotlight.saveChara(charaInfo: selectedChara)
    }

    func saveUserDefaultsChara(selectedChara: CharaEntity) {
        UserDefaultsClient().saveChara(
            selectedChara,
            forkey: "chara://detail?id=\(selectedChara.id)"
        )
    }
}

Entity

  • 役割
    • 各要素間でやり取りされるデータ
CharaEntity.swift

import Foundation

struct CharaEntity: Codable {
    var id: Int
    var name: String
    var description: String
    var imageRef: String
    var isFavorite: Bool = false
    var order: Date
}

Router

  • 役割
    • 画面遷移とDI
    • Presenterから画面遷移の依頼を受け取る
CharaListRouter.swift

import UIKit

protocol CharaListRouterInterface: AnyObject {
    func pushCharaDetail(chara: CharaEntity)
    func presentCharaPost()
}

final class CharaListRouter {
    private let viewController: CharaListViewController

    init(viewController: CharaListViewController) {
        self.viewController = viewController
    }

    static func assembleModule() -> CharaListViewController {
        let storyboard = UIStoryboard(name: "CharaList", bundle: nil)
        let viewController = storyboard.instantiateViewController(withIdentifier: "list") as! CharaListViewController
        let interactor = CharaListInteractor(firebaseRepository: FirebaseRepository(), spotlight: SpotlightRepository())
        let router = CharaListRouter(viewController: viewController)

        let presenter = CharaListPresenter(
            view: viewController,
            interactor: interactor,
            router: router
        )

        viewController.presenter = presenter
        return viewController
    }
}

extension CharaListRouter: CharaListRouterInterface {
    func pushCharaDetail(chara: CharaEntity) {
        let storyboard = UIStoryboard(name: "CharaDetail", bundle: nil)
        let nextView = storyboard.instantiateViewController(withIdentifier: "detail") as! CharaDetailViewController
        viewController.navigationController?.pushViewController(nextView, animated: true)
    }

    func presentCharaPost() {
        let storyboard = UIStoryboard(name: "CharaPost", bundle: nil)
        let nextView = storyboard.instantiateViewController(withIdentifier: "post") as! CharaPostViewController
        viewController.present(nextView, animated: true)
    }
}

得られたメリット

単一責務

MVCやMVVMとは違い、必然と凝集度の高いメソッドの定義ができると感じました。

例えば、タップ時の処理について
MVCだと色々処理が混ざってしまいます。当然メソッドの切り分けはできますが、規模が大きくなると、ViewControllerが肥大化するため、見通しは悪くなると思います。

CharaListViewController（MVC）.swift
    func collectionView(_ collectionView: UICollectionView, didSelectItemAt indexPath: IndexPath) {
        spotlight.saveChara(charaInfo: model.entity[indexPath.row])
        UserDefaultsClient().saveChara(
            model.entity[indexPath.row],
            forkey: "chara://detail?id=\(model.entity[indexPath.row].id)"
        )

        let storyboard: UIStoryboard = UIStoryboard(name: "CharaDetail", bundle: nil)
        let nextView = storyboard.instantiateViewController(withIdentifier: "detail") as! CharaDetailViewController

        nextView.charaDetail = model.entity[indexPath.row]
        if let tmp = UserDefaultsClient().loadChara(key: "favo=\(model.entity[indexPath.row].id)") {
            nextView.charaDetail.isFavorite = tmp.isFavorite
        }
        self.navigationController?.pushViewController(nextView, animated: true)
    }

しかし、VIPERに切り替えることで、かなり見通しが良くなり、「どの処理が何をしているのか」が明確になります。

CharaListPresenter.swift
    func didSelectChara(selectedChara: CharaEntity) {
        interactor.saveSpotlightChara(selectedChara: selectedChara)
        interactor.saveUserDefaultsChara(selectedChara: selectedChara)
        router.pushCharaDetail(chara: selectedChara)
    }

最後に

今回はVIPERを学びましたが、別のアーキテクチャも学び比較していければと思います。
