概要
Node.jsのフレームワークであるLoopBackのTodoListを作成するチュートリアルを実施する。
参考：https://loopback.io/doc/en/lb4/Getting-started.html#create-a-new-project
上記のチュートリアルでは、DBにIn-MemoryDBを利用しているが、ここではMySQLを利用する。
環境構築
以下を利用してDockerで環境を構築する。
https://github.com/Esfahan/docker-loopback-tutorial
TODO Tutorial
todo-list tutorialを行う。
参考：https://loopback.io/doc/en/lb4/todo-tutorial.html
Requirements
- Node.js at v10 or greater
アプリケーションを作成
Scaffoldをする。
参考：http://loopback.io/doc/en/lb4/todo-tutorial-scaffolding.html
[root@882e7183f062 code]# lb4 app
? Project name: todo-list
? Project description: A todo list API made with LoopBack 4.
? Project root directory: todo-list
? Application class name: TodoListApplication
? Select features to enable in the project Enable eslint, Enable prettier, Enable mocha, Enable loopbackBuild, Enable vscode, Enable docker, Enable repositories, Enable services
# omitted
added 623 packages from 807 contributors and audited 5182 packages in 14.122s
found 0 vulnerabilities
Application todo-list was created in todo-list.
Next steps:
$ cd todo-list
$ npm start
Mysql用のDataSourceを作成
チュートリアルではIn-MemoryDBを利用するが、ここではMySQLを利用する。
- 参考
MySQL用のパッケージをインストール
$ npm install loopback-connector-mysql --save
MySQL用のDataSourceを作成
$ lb4 datasource
? Datasource name: db
# 方向キーでスクロールしてMySQLを選択
? Select the connector for db: MySQL (supported by StrongLoop)
# そのままEnter
? Connection String url to override other settings (eg: mysql://user:pass@host/db):
? host: loopback-db
? port: 3306
? user: loopback
? password: [hidden]
? database: loopback
create src/datasources/db.datasource.config.json
create src/datasources/db.datasource.ts
update src/datasources/index.ts
Datasource Db was created in src/datasources/
Mysqlの接続情報は以下に作成される。
src/datasources/db.datasource.config.json
src/datasources/db.datasource.config.json
{
"name": "db",
"connector": "mysql",
"url": "",
"host": "loopback-db",
"port": 3306,
"user": "loopback",
"password": "xxxxxxxxxx",
"database": "loopback"
}
Modelを作成
参考：http://loopback.io/doc/en/lb4/todo-tutorial-model.html
lb4 model
? Model class name: todo
# Entityを選択
? Please select the model base class Entity (A persisted model with an ID)
? Allow additional (free-form) properties? No
Model Todo will be created in src/models/todo.model.ts
Let's add a property to Todo
Enter an empty property name when done
? Enter the property name: id
? Property type: number
? Is id the ID property? Yes
? Is id generated automatically? Yes
#? Is id generated automatically? No
#? Is it required?: Yes
# そのままEnter
? Default value [leave blank for none]:
Let's add another property to Todo
Enter an empty property name when done
? Enter the property name: title
? Property type: string
? Is it required?: Yes
# そのままEnter
? Default value [leave blank for none]:
Let's add another property to Todo
Enter an empty property name when done
? Enter the property name: desc
? Property type: string
? Is it required?: No
# そのままEnter
? Default value [leave blank for none]:
Let's add another property to Todo
Enter an empty property name when done
? Enter the property name: isComplete
? Property type: boolean
? Is it required?: No
# そのままEnter
? Default value [leave blank for none]:
Let's add another property to Todo
Enter an empty property name when done
# そのままEnter(空でEnterで終了する)
? Enter the property name:
create src/models/todo.model.ts
update src/models/index.ts
Model Todo was created in src/models/
Migrationを実行してDBにTableを作成
Migrationを実行する。Modelファイルの中のTable定義を参照してTableが生成される。
今回の場合は、src/models/todo.model.tsの以下の部分が参照される。
src/models/todo.model.ts
export class Todo extends Entity {
@property({
type: 'number',
id: true,
generated: true,
})
id?: number;
@property({
type: 'string',
required: true,
})
title: string;
@property({
type: 'string',
})
desc?: string;
@property({
type: 'boolean',
})
isComplete?: boolean;
Migrationを実行
$ npm run-script build
$ npm run migrate
既存のテーブルを全て削除してmigrationする場合は以下。
$ npm run migrate -- --rebuild
作成されるTable
mysql> show create table loopback.Todo;
+-------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| Table | Create Table |
+-------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| Todo | CREATE TABLE `Todo` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`title` varchar(512) NOT NULL,
`desc` varchar(512) DEFAULT NULL,
`isComplete` tinyint(1) DEFAULT NULL,
PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 |
+-------+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
1 row in set (0.00 sec)
Repositoryを作成
参考：https://loopback.io/doc/en/lb4/todo-tutorial-repository.html
$ lb4 repository
# そのままEnter
? Please select the datasource DbDatasource
# スペースを押して選択する
? Select the model(s) you want to generate a repository
❯◉ Todo
# そのままEnter
? Please select the repository base class DefaultCrudRepository (Legacy juggler bridge)
create src/repositories/todo.repository.ts
update src/repositories/index.ts
Repository TodoRepository was created in src/repositories/
Controllerを作成
参考：https://loopback.io/doc/en/lb4/todo-tutorial-controller.html
lb4 controller
? Controller class name: todo
Controller Todo will be created in src/controllers/todo.controller.ts
# 2つ目を選択
? What kind of controller would you like to generate?
Empty Controller
❯ REST Controller with CRUD functions
# Todoを選択
? What is the name of the model to use with this CRUD repository? Todo
# TodoRepositoryを選択
? What is the name of your CRUD repository? TodoRepository
? What is the name of ID property? id
? What is the type of your ID? number
? Is the id omitted when creating a new instance? Yes
# そのままEnter
? What is the base HTTP path name of the CRUD operations? /todos
force src/controllers/todo.controller.ts
update src/controllers/index.ts
Controller Todo was created in src/controllers/
ブラウザからアクセスして動作を確認する
参考：https://loopback.io/doc/en/lb4/todo-tutorial-putting-it-together.html
loopbackを起動
$ npm start
> todo-list@1.0.0 prestart /code/todo-list
> npm run build
> todo-list@1.0.0 build /code/todo-list
> lb-tsc
> todo-list@1.0.0 start /code/todo-list
> node -r source-map-support/register .
Server is running at http://[::1]:3000
Try http://[::1]:3000/ping

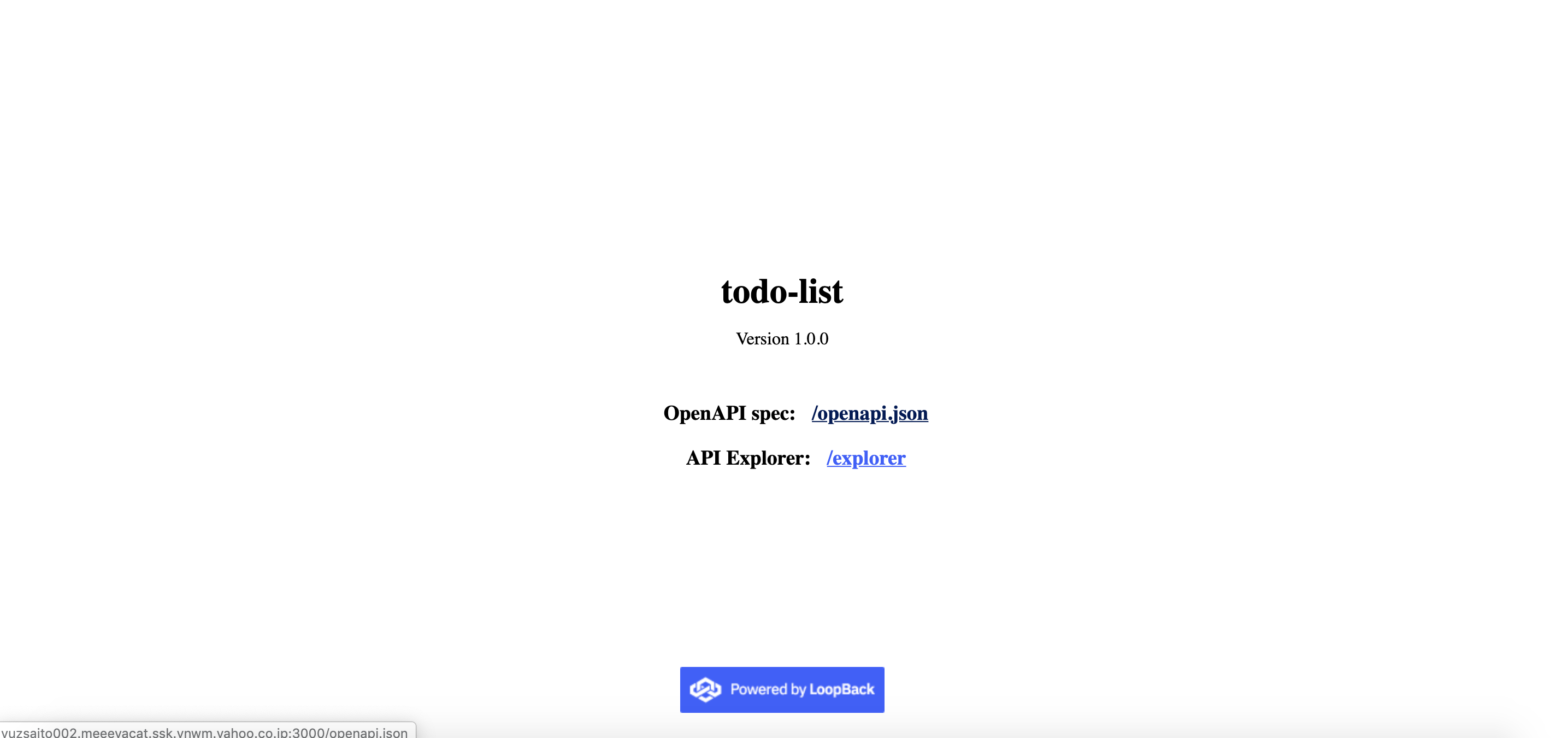

ブラウザからアクセス
API経由でデータを追加する
$ curl -H 'Content-Type:application/json' \
-d '{ "title": "get the milk" }' \
http://localhost:3000/todos
{"id":1,"title":"get the milk"}
$ curl -H 'Content-Type:application/json' \
-d '{ "title": "forget the milk " }' \
http://localhost:3000/todos
{"id":2,"title":"forget the milk "}
DBを確認
mysql> select * from loopback.Todo;
+----+------------------+------+------------+
| id | title | desc | isComplete |
+----+------------------+------+------------+
| 1 | get the milk | NULL | NULL |
| 2 | forget the milk | NULL | NULL |
+----+------------------+------+------------+
2 rows in set (0.00 sec)
Todoリストを確認
Response
[
{
"id": 1,
"title": "get the milk",
"desc": null,
"isComplete": null
},
{
"id": 2,
"title": "forget the milk ",
"desc": null,
"isComplete": null
}
]
データを更新
$ curl --request PATCH -H 'Content-Type:application/json' \
-d '{ "desc": "need milk for cereal." }' \
http://localhost:3000/todos/1
Todoリストを確認
id:1のdescがUpdateされた。
Response
[
{
"id": 1,
"title": "get the milk",
"desc": "need milk for cereal.",
"isComplete": null
},
{
"id": 2,
"title": "forget the milk ",
"desc": null,
"isComplete": null
}
]
データを削除
$ curl --request DELETE http://localhost:3000/todos/1
Todoリストを確認
id:1が削除された。
Response
[
{
"id": 2,
"title": "forget the milk ",
"desc": null,
"isComplete": null
}
]
以上
