#この情報は時代遅れですよのご報告
残念ながらPythonista3でのBLE通信は2023年4月末のUpdateより動きません。
※動かない状況:BLE受信はできますがBLE送信はエラーがでて送信不可※
現在はSwift Playgroundにて同様のプログラムを作ろうと奮闘中です・・
ArduinoManagerに期待を裏切られたのはESP32編で書きましたが、
今回はiOS機で初めて開発することにしました。でも個人の私で用意出来るのは
普段使いのWindowsPCとiPad Proなので、Pythonista3は自然な流れになります。
#実行に必要なリソース
ESP32とArduinoIDE開発環境(別述
iOS機とPythonista3アプリ
#機能
ESP32側はSerial通信と同じような使い方がしたいので、私がよく使う
Serial通信のメソッドだけサポートしていました。
iOS側も似たような感じのメソッドを用意する事にしました。
available
read
SendChars
==あまり厳密なテストは行っていませんので、意図しない制約があると思います==
#使い方

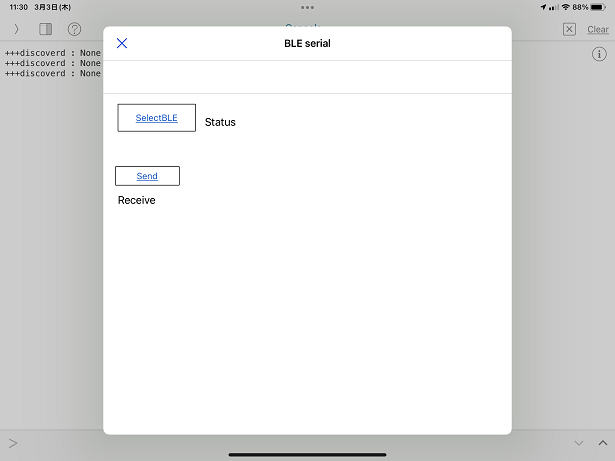

ソフトを起動すると簡素な画面が現れます
「SelectBLE」を押して接続するBLE機器を選択します。
BLE機器のID一覧が表示されるので対象の機器を選択します。
※表示が無い場合は一度終了して再表示してみてください。

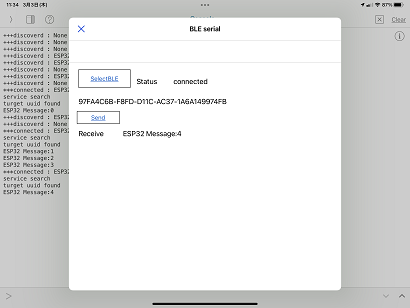

機器を選択すると接続するIDが表示されます。
「Send」ボタンでメッセージを送信します。
Receiveが受信メッセージを表示しています。
#BLE_SERVER_NAMEとSERVICE_UUIDとCHAR_UUID
うまく説明できないので他の資料を確認してください。
メインプログラムです。
iCloudのPythonista3フォルダにコピーすれば登録できます。
import ui
import cb
import dialogs
TM_BLE_SERVER_NAME ='ESP32'
TM_SERVICE_UUID = 'FFAA'
TM_CHAR_UUID = '0001'
TM_BUFFER = 40
class BLESeralDelegate(object):
def __init__(self):
self.peripheral = None
self.buffer = bytearray(TM_BUFFER)
self.bufferwrite = 0
self.bufferread = 0
def did_discover_peripheral(self, p):
global peripheralList, titleList
print(('+++discoverd : %s %s' % (p.name, p.uuid) ))
if p.name!=None and not self.peripheral:
peripheralList.append( p )
titleList.append( p.uuid )
def did_connect_peripheral(self, p):
print(('***connected : %s' % p.name))
p.discover_services()
v['label1'].text = 'connected'
def did_fail_to_connect_peripheral(self,p,error):
print('fail to connect')
v['label1'].text = 'fail to connect'
def did_disconnect_peripheral(self, p, error):
print(('disconnected, error: %s' % (error,)))
self.peripheral = None
self.data_characteristics = None
cb.scan_for_peripherals()
def did_discover_services(self, p, error):
print('service search')
for s in p.services:
if TM_SERVICE_UUID in s.uuid:
print('turget uuid found')
p.discover_characteristics(s)
def did_discover_characteristics(self,s, error):
if TM_SERVICE_UUID in s.uuid:
for c in s.characteristics:
if TM_CHAR_UUID in c.uuid:
self.peripheral.set_notify_value(c, True)
self.data_characteristics = c
self.peripheral.write_characteristic_value(c, chr(0), True)
cb.stop_scan()
def did_update_value(self, c, error):
if TM_CHAR_UUID==c.uuid:
for ch in c.value:
self.buffer[ self.bufferwrite ]=int(ch)
self.bufferwrite = self.bufferwrite + 1
if self.bufferwrite == TM_BUFFER :
self.bufferwrite = 0
def use(self):
if self.peripheral and self.data_characteristics :
return True
else:
return False
def available(self):
if self.bufferwrite == self.bufferread :
return False
return True
def read(self):
ret = self.buffer[ self.bufferread ]
if self.bufferread == (TM_BUFFER - 1):
self.bufferread = 0
else:
self.bufferread = self.bufferread + 1
return ret
def send_chars(self, message):
if self.peripheral and self.data_characteristics :
self.peripheral.write_characteristic_value(self.data_characteristics, message+chr(0), True)
def onSelect(sender):
global BLEserial, peripheralList, titleList
uucv = dialogs.list_dialog(title='BLE list', items=titleList)
for p in peripheralList:
if p.uuid==uucv:
BLEserial.peripheral = p
cb.connect_peripheral(p)
v['labelBLE'].text = p.uuid
def onSend(sender):
global BLEserial,count
BLEserial.send_chars('BLE Message:'+str(count))
count=count+1
v = ui.load_view('selectBLE.pyui')
wi = ui.NavigationView(v)
wi.height = 960
wi.width = 680
wi.name = 'BLE serial'
wi.present('sheet')
peripheralList = list()
titleList=list()
count=1
BLEserial = BLESeralDelegate()
cb.set_central_delegate(BLEserial)
cb.scan_for_peripherals()
buffer = bytearray(0)
loop_program = True
try:
while loop_program:
if BLEserial.available() :
num = BLEserial.read()
if num != 0 :
buffer.append(num)
else:
response = buffer.decode()
buffer = bytearray(0)
print(response)
v['labelReceive'].text = response
except KeyboardInterrupt:
cb.reset()
こちらは画面の定義です。
iCloudのPythonista3フォルダにコピーすれば登録できます。
[
{
"nodes" : [
{
"nodes" : [
],
"frame" : "{{24, 17}, {130, 46}}",
"class" : "Button",
"attributes" : {
"border_width" : 1,
"action" : "onSelect",
"frame" : "{{230, 254}, {80, 32}}",
"title" : "SelectBLE",
"uuid" : "3ADCC5B5-52AA-4EF8-B500-FC69B804296F",
"class" : "Button",
"corner_radius" : 1,
"name" : "button1",
"font_size" : 15
},
"selected" : false
},
{
"nodes" : [
],
"frame" : "{{24, 81}, {501, 32}}",
"class" : "Label",
"attributes" : {
"font_size" : 18,
"frame" : "{{195, 254}, {150, 32}}",
"uuid" : "D6795BDD-20DE-473D-9598-676BE8EDCE52",
"class" : "Label",
"alignment" : "left",
"text" : "",
"name" : "labelBLE",
"font_name" : "<System>"
},
"selected" : false
},
{
"nodes" : [
],
"frame" : "{{20, 121}, {107, 32}}",
"class" : "Button",
"attributes" : {
"border_width" : 1,
"action" : "onSend",
"frame" : "{{472, 368}, {80, 32}}",
"title" : "Send",
"uuid" : "5FE9A7C8-1E3C-4B40-97B3-F331FD5538D3",
"class" : "Button",
"corner_radius" : 1,
"name" : "buttonSend",
"font_size" : 15
},
"selected" : false
},
{
"nodes" : [
],
"frame" : "{{261, 31}, {324, 32}}",
"class" : "Label",
"attributes" : {
"name" : "label1",
"frame" : "{{437, 368}, {150, 32}}",
"uuid" : "341C9782-7020-41BE-AA3A-6450AC11C484",
"class" : "Label",
"alignment" : "left",
"text" : "",
"font_size" : 18,
"font_name" : "<System>"
},
"selected" : false
},
{
"nodes" : [
],
"frame" : "{{24, 161}, {103, 32}}",
"class" : "Label",
"attributes" : {
"name" : "label2",
"frame" : "{{437, 368}, {150, 32}}",
"uuid" : "955F8864-E2C7-4BEB-88BA-28E591217826",
"class" : "Label",
"alignment" : "left",
"text" : "Receive",
"font_size" : 18,
"font_name" : "<System>"
},
"selected" : false
},
{
"nodes" : [
],
"frame" : "{{169, 31}, {84, 32}}",
"class" : "Label",
"attributes" : {
"font_size" : 18,
"frame" : "{{437, 368}, {150, 32}}",
"uuid" : "789A55EA-66EC-49DA-89FA-5AFBB5795181",
"class" : "Label",
"alignment" : "left",
"text" : "Status",
"name" : "label3",
"font_name" : "<System>"
},
"selected" : false
},
{
"nodes" : [
],
"frame" : "{{135, 161}, {426, 32}}",
"class" : "Label",
"attributes" : {
"font_size" : 18,
"frame" : "{{437, 368}, {150, 32}}",
"uuid" : "B66B74A6-F7EC-4E30-9722-8B2B535BD745",
"class" : "Label",
"alignment" : "left",
"text" : "",
"name" : "labelReceive",
"font_name" : "<System>"
},
"selected" : true
}
],
"frame" : "{{0, 0}, {1024, 768}}",
"class" : "View",
"attributes" : {
"background_color" : "RGBA(1.000000,1.000000,1.000000,1.000000)",
"enabled" : true,
"tint_color" : "RGBA(0.000000,0.478000,1.000000,1.000000)",
"border_color" : "RGBA(0.000000,0.000000,0.000000,1.000000)",
"name" : "",
"flex" : ""
},
"selected" : false
}
]
