C++ Builder 10.2 Tokyo > color > UI > 色選択 + RGB値入力 [一つのセット版] #UI

動作環境

RAD Studio 10.2 Tokyo Update 3

概要

下記UIを用意した
- A. TColorBoxからの色選択
- B. RGB値の直接入力

BのUIだけを検討していたが、Aもあるほうが使い勝手が良いと思った

実装 v0.1

2つのフォームを用意した。
Unit2の方がTColobBoxでの色選択を受け持つ。

Unit2

Unit2.h

//---------------------------------------------------------------------------

#ifndef Unit2H
#define Unit2H
//---------------------------------------------------------------------------
#include <System.Classes.hpp>
#include <Vcl.Controls.hpp>
#include <Vcl.StdCtrls.hpp>
#include <Vcl.Forms.hpp>
#include <Vcl.ExtCtrls.hpp>
//---------------------------------------------------------------------------
class TForm2 : public TForm
{
__published:    // IDE で管理されるコンポーネント
    TColorBox *ColorBox1;
    TButton *B_ok;
    TButton *B_cancel;
    void __fastcall B_okClick(TObject *Sender);
    void __fastcall B_cancelClick(TObject *Sender);
private:    // ユーザー宣言
public:     // ユーザー宣言
    __fastcall TForm2(TComponent* Owner);
};
//---------------------------------------------------------------------------
extern PACKAGE TForm2 *Form2;
//---------------------------------------------------------------------------
#endif

Unit2.cpp

//---------------------------------------------------------------------------

#include <vcl.h>
#pragma hdrstop

#include "Unit2.h"
//---------------------------------------------------------------------------
#pragma package(smart_init)
#pragma resource "*.dfm"
TForm2 *Form2;
//---------------------------------------------------------------------------
__fastcall TForm2::TForm2(TComponent* Owner)
    : TForm(Owner)
{
}
//---------------------------------------------------------------------------
void __fastcall TForm2::B_okClick(TObject *Sender)
{
    this->ModalResult = mrOk;
}
//---------------------------------------------------------------------------
void __fastcall TForm2::B_cancelClick(TObject *Sender)
{
    this->ModalResult = mrCancel;
}
//---------------------------------------------------------------------------

Unit1

Unit1.h

//---------------------------------------------------------------------------

#ifndef Unit1H
#define Unit1H
//---------------------------------------------------------------------------
#include <System.Classes.hpp>
#include <Vcl.Controls.hpp>
#include <Vcl.StdCtrls.hpp>
#include <Vcl.Forms.hpp>
#include <Vcl.ExtCtrls.hpp>
//---------------------------------------------------------------------------
class TForm1 : public TForm
{
__published:    // IDE で管理されるコンポーネント
    TButton *B_select;
    TShape *Shape1;
    TEdit *E_RGBvalue;
    void __fastcall B_selectClick(TObject *Sender);
    void __fastcall FormShow(TObject *Sender);
    void __fastcall E_RGBvalueExit(TObject *Sender);
private:    // ユーザー宣言
public:     // ユーザー宣言
    __fastcall TForm1(TComponent* Owner);
};
//---------------------------------------------------------------------------
extern PACKAGE TForm1 *Form1;
//---------------------------------------------------------------------------
#endif

Unit1.cpp

//---------------------------------------------------------------------------

#include <vcl.h>
#pragma hdrstop

#include "Unit1.h"
#include "Unit2.h"
//---------------------------------------------------------------------------
#pragma package(smart_init)
#pragma resource "*.dfm"
TForm1 *Form1;
//---------------------------------------------------------------------------
__fastcall TForm1::TForm1(TComponent* Owner)
    : TForm(Owner)
{
}
void __fastcall TForm1::FormShow(TObject *Sender)
{
    E_RGBvalue->Text = L"FFFFFF";
}
//---------------------------------------------------------------------------
void __fastcall TForm1::B_selectClick(TObject *Sender)
{
    Form2->ShowModal();
    if (Form2->ModalResult != mrOk) {
        return;
    }

    TColor acol = Form2->ColorBox1->Selected;
    int Rval = GetRValue(acol);
    int Gval = GetGValue(acol);
    int Bval = GetBValue(acol);

    Shape1->Pen->Color = acol;
    Shape1->Brush->Color = acol;

    E_RGBvalue->Text = String().sprintf(L"%02X%02X%02X", Rval, Gval, Bval);
}
//---------------------------------------------------------------------------
void __fastcall TForm1::E_RGBvalueExit(TObject *Sender)
{
    TEdit *edPtr = (TEdit *)Sender;

    // char型を扱うため、ここでAnsiStringにする必要がある (Stringだとwchar_tになる)
    AnsiString astr = AnsiString(edPtr->Text);   // e.g. FFFF00

    int tmp;
    int Red, Green, Blue;
    char *endptr;

    AnsiString wrk = astr.SubString(1, 6);
    tmp = strtol(wrk.c_str(), &endptr, 16);

    if (*endptr == 0x00) {
        Red   = strtol(astr.SubString(1, 2).c_str(), /*endptr=*/NULL, 16);
        Green = strtol(astr.SubString(3, 2).c_str(), /*endptr=*/NULL, 16);
        Blue  = strtol(astr.SubString(5, 2).c_str(), /*endptr=*/NULL, 16);
    } else {
        Red = 255;
        Green = 255;
        Blue = 255;
        edPtr->Text = L"FFFFFF";
    }

    Shape1->Brush->Color = (TColor)RGB(Red, Green, Blue);
    Shape1->Pen->Color = (TColor)RGB(Red, Green, Blue);
}
//---------------------------------------------------------------------------

実行例

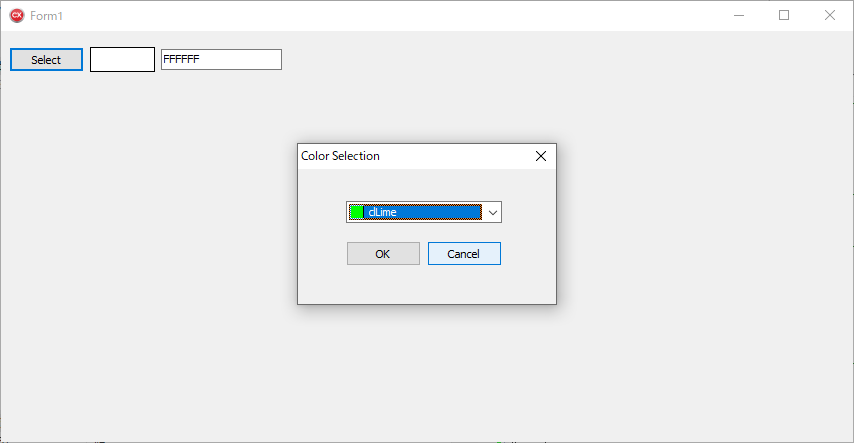

TColorBoxでの選択時

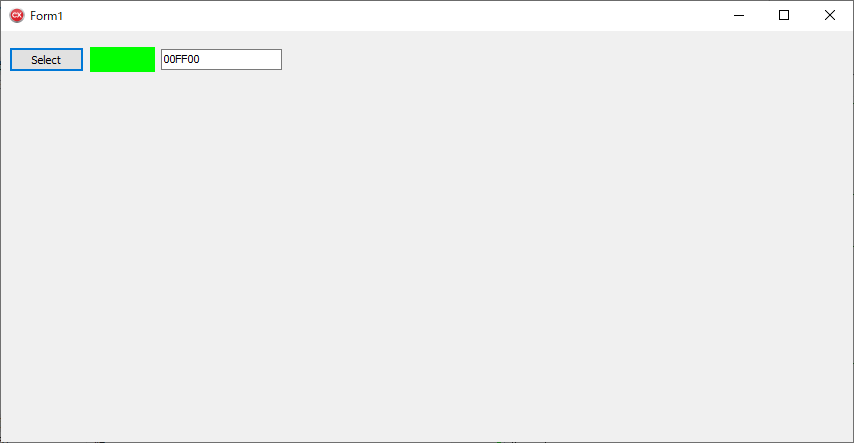

TColorBoxでの選択後

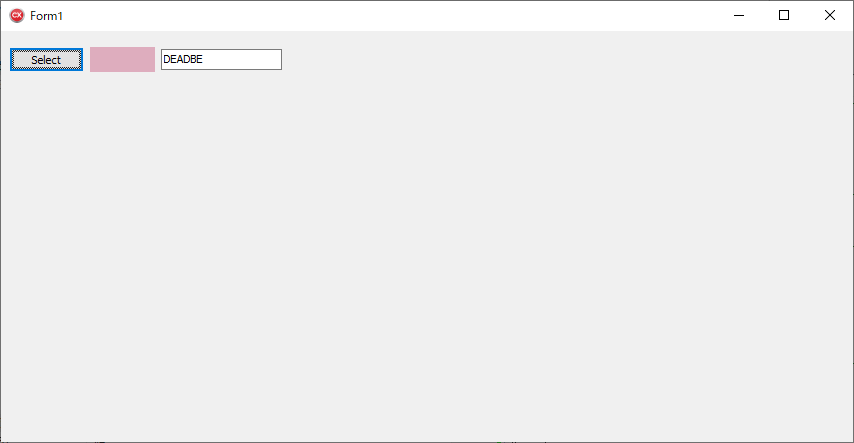

RGB値直接入力後

備考

16進数から10進数読取りは厳密にはしていない
- エラー処理などは状況によって厳密化すること

実装 v0.2

TEditのプロパティMaxLength = 6に固定
TEditにてEnterキー時に色更新処理をコール

Unit1.cppだけ変更した。

Unit1.cpp

//---------------------------------------------------------------------------

#include <vcl.h>
#pragma hdrstop

#include "Unit1.h"
#include "Unit2.h"
//---------------------------------------------------------------------------
#pragma package(smart_init)
#pragma resource "*.dfm"
TForm1 *Form1;
//---------------------------------------------------------------------------
__fastcall TForm1::TForm1(TComponent* Owner)
    : TForm(Owner)
{
}
void __fastcall TForm1::FormShow(TObject *Sender)
{
    E_RGBvalue->MaxLength = 6; // R,G,B値それぞれ00..FF
    E_RGBvalue->Text = L"FFFFFF";
}
//---------------------------------------------------------------------------
void __fastcall TForm1::B_selectClick(TObject *Sender)
{
    Form2->ShowModal();
    if (Form2->ModalResult != mrOk) {
        return;
    }

    TColor acol = Form2->ColorBox1->Selected;
    int Rval = GetRValue(acol);
    int Gval = GetGValue(acol);
    int Bval = GetBValue(acol);

    Shape1->Pen->Color = acol;
    Shape1->Brush->Color = acol;

    E_RGBvalue->Text = String().sprintf(L"%02X%02X%02X", Rval, Gval, Bval);
}
//---------------------------------------------------------------------------
void __fastcall TForm1::E_RGBvalueExit(TObject *Sender)
{
    TEdit *edPtr = (TEdit *)Sender;

    // char型を扱うため、ここでAnsiStringにする必要がある (Stringだとwchar_tになる)
    AnsiString astr = AnsiString(edPtr->Text);   // e.g. FFFF00

    int tmp;
    int Red, Green, Blue;
    char *endptr;

    AnsiString wrk = astr.SubString(1, 6);
    tmp = strtol(wrk.c_str(), &endptr, 16);

    if (*endptr == 0x00) {
        Red   = strtol(astr.SubString(1, 2).c_str(), /*endptr=*/NULL, 16);
        Green = strtol(astr.SubString(3, 2).c_str(), /*endptr=*/NULL, 16);
        Blue  = strtol(astr.SubString(5, 2).c_str(), /*endptr=*/NULL, 16);
    } else {
        Red = 255;
        Green = 255;
        Blue = 255;
        edPtr->Text = L"FFFFFF";
    }

    Shape1->Brush->Color = (TColor)RGB(Red, Green, Blue);
    Shape1->Pen->Color = (TColor)RGB(Red, Green, Blue);
}
//---------------------------------------------------------------------------

void __fastcall TForm1::E_RGBvalueKeyDown(TObject *Sender, WORD &Key, TShiftState Shift)

{
    if (Key == VK_RETURN) {
        E_RGBvalueExit(E_RGBvalue);
    }
}
//---------------------------------------------------------------------------
