Atlas SoCのビルドがうまく行かないメモ

Last updated at Posted at 2016-03-09

まずはAtlas-SoCでLチカ

DE0-Nano-SoC

Macと接続

  • USB UART
  • 5Vアダプタ
  • Ethernet

Atlas SoC

Atlas SOCイメージ取得

MacでSD card書き出し

http://ledsun.hatenablog.com/entry/2014/10/26/174712
8分かかった。

sudo dd if=atlas_sdcard_v1.1.img of=/dev/rdisk3 bs=1m

シリアルポートで起動確認

screen /dev/tty.usbserial-AK00D0RG 115200

.---O---.
|       |                  .-.           o o
|   |   |-----.-----.-----.| |   .----..-----.-----.
|       |     | __  |  ---'| '--.|  .-'|     |     |
|   |   |  |  |     |---  ||  --'|  |  |  '  | | | |
'---'---'--'--'--.  |-----''----''--'  '-----'-'-'-'
                -'  |
                '---'

The Angstrom Distribution atlas_sockit ttyS0

Angstrom v2014.12 - Kernel 4.0.0-altera

atlas_sockit login:

rootでログイン、IP確認

login: root

root@atlas_sockit:~# ifconfig
eth0      Link encap:Ethernet  HWaddr 00:07:ed:43:5b:10
          inet addr:192.168.1.119  Bcast:192.168.1.255  Mask:255.255.255.0

ブラウザからアクセス

Screen Shot 2016-01-23 at 3.33.42 PM.png

Lチカ

Screen Shot 2016-01-23 at 3.35.29 PM.png

Lチカした。

クラウドに開発環境構築

つづいて、Google Compute Engine上に開発環境を構築。

GCEインスタンス作成

  • asia-east1-c
  • Debian 7 backport
  • 4 core
  • 26GB memory
  • 512GB SSD

gnomeとVNCをインストール

Altera SoC EDS

  • ダウンロード遅い
  • GUIからSoCEDSSetup-15.1.0.185-linux.runをダブルクリックして起動

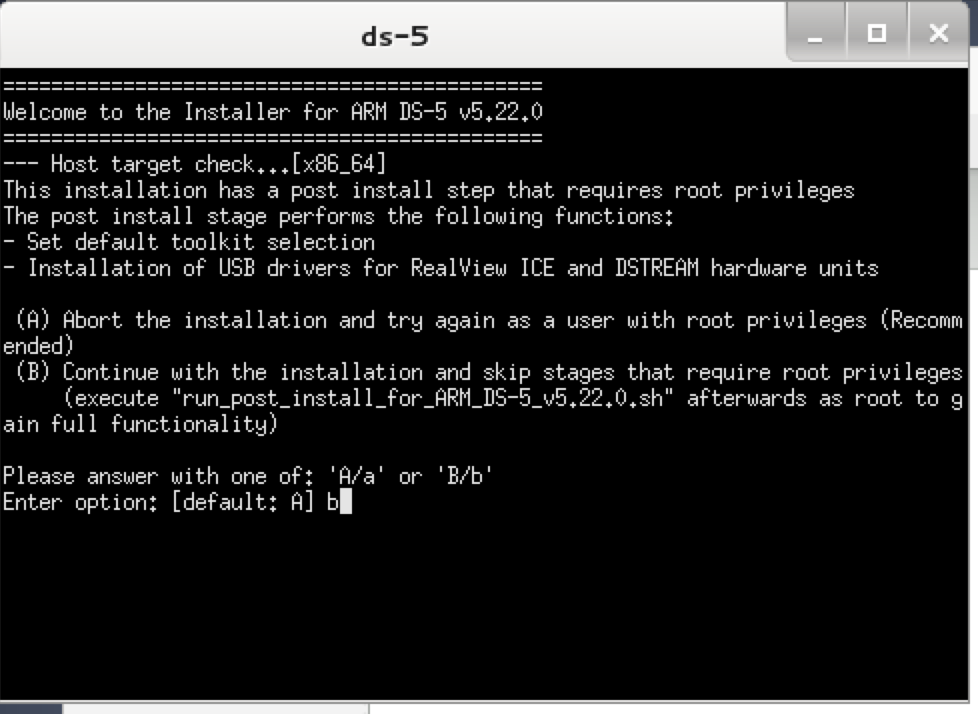

Screen Shot 2016-01-24 at 6.21.57 AM.png Screen Shot 2016-01-24 at 6.32.19 AM.png - rootでないと言われる。"b"を選択
$ sudo ~/altera/15.1/embedded/ds-5/run_post_install_for_ARM_DS-5_v5.22.0.sh

Altera Quartus Prime Lite

  • ダウンロード遅い
  • Quartus-lite-15.1.1.189-linux.tarを展開
$ tar xf Quartus-lite-15.1.1.189-linux.tar
  • setup.shをダブルクリックして起動

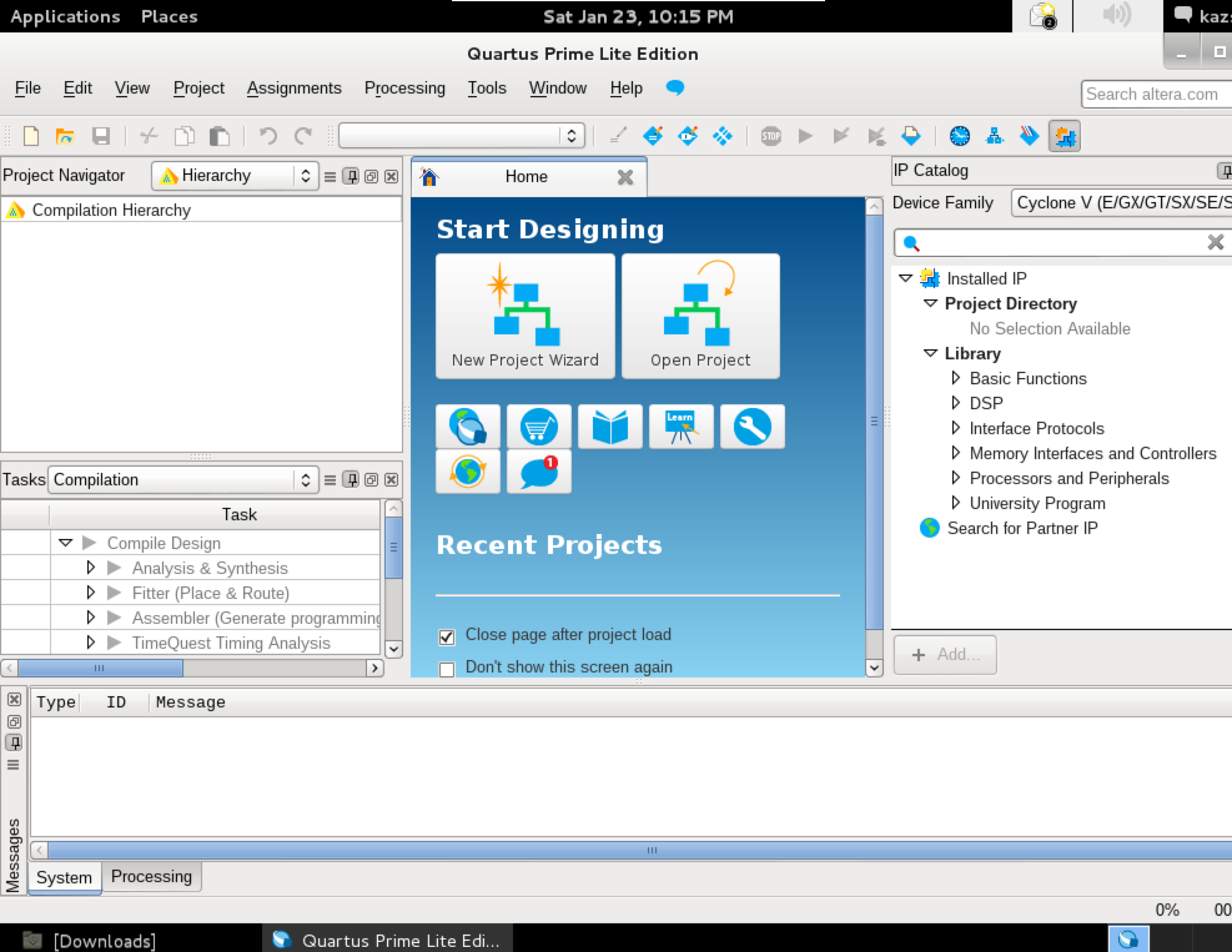

Screen Shot 2016-01-24 at 6.38.18 AM.png Screen Shot 2016-01-24 at 7.11.12 AM.png Screen Shot 2016-01-24 at 7.15.20 AM.png

GHRD構築

ここの手順で：
http://rocketboards.org/foswiki/view/Documentation/AtlasSoCCompileHardwareDesign

先人たちの記録。
http://qiita.com/new3bon/items/1d7349f9bb0c2d6228a1
http://qiita.com/miyox/items/cf23040d8fa10ac62ff3

まずは必要そうなライブラリを入れとく。必要なのかいまいちわからない。
http://rocketboards.org/foswiki/view/Documentation/AlteraSoCDevelopmentBoardYoctoGettingStarted

$ sudo apt-get install sed wget cvs subversion git-core coreutils unzip texi2html texinfo libsdl1.2-dev docbook-utils gawk python-pysqlite2 diffstat help2man make gcc build-essential g++ desktop-file-utils chrpath libgl1-mesa-dev libglu1-mesa-dev mercurial autoconf automake groff libtool xterm

ドキュメントの通り、このままmake allする。

mkdir atlas
cd atlas
wget https://github.com/dwesterg/atlas-soc-ghrd/tarball/master -O atlas-soc-ghrd.tgz
mkdir atlas-soc-ghrd
tar -xzvf atlas-soc-ghrd.tgz --strip-components 1 -C atlas-soc-ghrd
cd atlas-soc-ghrd
make all

と、quartus系のコマンドがないと怒られてビルドが止まる。

パスを通すため、以下をまとめて.bash_profileに書いておく。Quartusのパスは適当にそれっぽい場所を通しておいた（きもちわるいー）。

# for SoC EDS
export SOCEDS_DEST_ROOT=~/altera/15.1/embedded
source ~/altera/15.1/embedded/env.sh

# for Quartus
PATH=$PATH:~/altera_lite/15.1/quartus/bin:~/altera_lite/15.1/quartus/sopc_builder/bin
export PATH

しかし、embedded/env.shを呼ぶと、makeがNo such fileと言われるようになる。。orz

kazsato@kaz-altera0:~/atlas/atlas-soc-ghrd$ make all
bash: /home/kazsato/altera/15.1/embedded/ds-5/bin/make: No such file or directory

いや、altera/15.1/embedded/ds-5/bin/makeはちゃんとあるけどなあ。。なんなんだ。じゃあ、/usr/bin/makeを指定することにするよ。

miyoさんの書いてたfft問題を避けるために、念のためこれをやっておく。

$ mv scripts/qsys_add_fft128_components.tcl scripts/qsys_add_fft128_components.tcl.old

さて、もう一回ビルドに挑戦。

$ /usr/bin/make scrub_clean
$ /usr/bin/make all

こんなエラーで止まった。

Error: Quartus Prime Analysis & Synthesis was unsuccessful. 12 errors, 39 warnings
    Error: Peak virtual memory: 1489 megabytes
    Error: Processing ended: Sun Jan 24 23:54:28 2016
    Error: Elapsed time: 00:04:46
    Error: Total CPU time (on all processors): 00:05:10
make: *** [stamp/ATLAS_SOC_GHRD.quartus_pin_assignments.stamp] Error 3

logsをErrorでgrepすると、、

azsato@kaz-altera0:~/atlas/atlas-soc-ghrd$ cat logs/* | grep Error
2016.01.24.23:46:44 Error: add_instance altchip_id_0 altchip_id 15.0: No module type named altchip_id.
2016.01.24.23:46:44 Error: set_instance_parameter_value altchip_id_0 ID_VALUE 18446744073709551615: No module named altchip_id_0.
2016.01.24.23:46:44 Error: add_connection altchip_id_0.output chip_id_read_mm_0.in0: No interface named altchip_id_0.output.
2016.01.24.23:46:44 Error: add_connection clk_0.clk altchip_id_0.clkin: No interface named altchip_id_0.clkin.
2016.01.24.23:46:44 Error: add_connection clk_0.clk_reset altchip_id_0.reset: No interface named altchip_id_0.reset.
2016.01.24.23:49:32 Error: border: Error during execution of script generate_hps_sdram.tcl: seq: add_fileset_file: No such file /tmp/alt6824_827278802229984201.dir/0003_seq_gen/hps_AC_ROM.hex
2016.01.24.23:49:32 Error: border: Error during execution of script generate_hps_sdram.tcl: Generation stopped, 3 or more modules remaining
2016.01.24.23:49:32 Error: border: Execution of script generate_hps_sdram.tcl failed
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:01 Info:
2016.01.24.23:49:32 Error: border: ********************************************************************************************************************
2016.01.24.23:49:32 Error: border:
2016.01.24.23:49:32 Error: border: Use qsys-generate for a simpler command-line interface for generating IP.
2016.01.24.23:49:32 Error: border:
2016.01.24.23:49:32 Error: border: Run ip-generate with switch --remove-qsys-generate-warning to prevent this notice from appearing in subsequent runs.
2016.01.24.23:49:32 Error: border:
2016.01.24.23:49:32 Error: border: ********************************************************************************************************************
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:08 Warning: Ignored parameter assignment device=5CSEMA4U23C6
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:08 Warning: Ignored parameter assignment extended_family_support=true
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:18 Warning: hps_sdram: 'Quick' simulation modes are NOT timing accurate. Some simulation memory models may issue warnings or errors
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:18 Warning: hps_sdram.seq: This module has no ports or interfaces
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:18 Warning: hps_sdram.p0: p0.scc must be exported, or connected to a matching conduit.
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:18 Warning: hps_sdram.as: as.afi_init_cal_req must be exported, or connected to a matching conduit.
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:18 Warning: hps_sdram.as: as.tracking must be exported, or connected to a matching conduit.
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:18 Warning: hps_sdram.c0: c0.status must be exported, or connected to a matching conduit.
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:18 Warning: hps_sdram.p0: p0.avl must be connected to an Avalon-MM master
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:18 Info: hps_sdram: Generating altera_mem_if_hps_emif "hps_sdram" for QUARTUS_SYNTH
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:20 Info: pll: "hps_sdram" instantiated altera_mem_if_hps_pll "pll"
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:20 Info: p0: Generating clock pair generator
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:21 Info: p0: Generating hps_sdram_p0_altdqdqs
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:32 Info: p0:
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:32 Info: p0: *****************************
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:32 Info: p0:
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:32 Info: p0: Remember to run the hps_sdram_p0_pin_assignments.tcl
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:32 Info: p0: script after running Synthesis and before Fitting.
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:32 Info: p0:
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:32 Info: p0: *****************************
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:32 Info: p0:
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:32 Info: p0: "hps_sdram" instantiated altera_mem_if_ddr3_hard_phy_core "p0"
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:32 Error: seq: add_fileset_file: No such file /tmp/alt6824_827278802229984201.dir/0003_seq_gen/hps_AC_ROM.hex
2016.01.24.23:49:32 Error: border: while executing
2016.01.24.23:49:32 Error: border: "add_fileset_file $file_name [::alt_mem_if::util::hwtcl_utils::get_file_type $file_name 0] PATH $file_pathname"
2016.01.24.23:49:32 Error: border: ("foreach" body line 4)
2016.01.24.23:49:32 Error: border: invoked from within
2016.01.24.23:49:32 Error: border: "foreach file_pathname $return_files_sw {
2016.01.24.23:49:32 Error: border:              _dprint 1 "Preparing to add $file_pathname"
2016.01.24.23:49:32 Error: border:              set file_name [file tail $file_pathname]
2016.01.24.23:49:32 Error: border:              add_fileset_file $..."
2016.01.24.23:49:32 Error: border: (procedure "generate_sw" line 18)
2016.01.24.23:49:32 Error: border: invoked from within
2016.01.24.23:49:32 Error: border: "generate_sw $name $fileset"
2016.01.24.23:49:32 Error: border: ("if" then script line 4)
2016.01.24.23:49:32 Error: border: invoked from within
2016.01.24.23:49:32 Error: border: "if {[string compare -nocase $fileset QUARTUS_SYNTH] == 0} {
2016.01.24.23:49:32 Error: border:              set top_level_file "altera_mem_if_hhp_qseq_synth_top.v"
2016.01.24.23:49:32 Error: border:              add_fileset_file $top_level_fi..."
2016.01.24.23:49:32 Error: border: (procedure "generate_files" line 4)
2016.01.24.23:49:32 Error: border: invoked from within
2016.01.24.23:49:32 Error: border: "generate_files $name QUARTUS_SYNTH"
2016.01.24.23:49:32 Error: border: (procedure "generate_synth" line 3)
2016.01.24.23:49:32 Error: border: invoked from within
2016.01.24.23:49:32 Error: border: "generate_synth altera_mem_if_hhp_qseq_synth_top"
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:32 Info: seq: "hps_sdram" instantiated altera_mem_if_hhp_ddr3_qseq "seq"
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:32 Error: Generation stopped, 3 or more modules remaining
2016.01.24.23:49:32 Error: border: 2016.01.24.23:49:32 Info: hps_sdram: Done "hps_sdram" with 7 modules, 33 files
2016.01.24.23:49:33 Error: Generation stopped, 2 or more modules remaining
2016.01.24.23:49:34 Error: qsys-generate failed with exit code 1: 60 Errors, 10 Warnings

むー。何これ。。

not foundでgrepすると、

kazsato@kaz-altera0:~/atlas/atlas-soc-ghrd$ cat logs/* | grep 'not found'
Warning (125092): Tcl Script File ../ip/fft128/fft_test.qip not found
Warning (125092): Tcl Script File ../ip/fft128/fft_test.qip not found
Warning (125092): Tcl Script File ../ip/fft128/fft_test.qip not found
Warning (125092): Tcl Script File ../ip/fft128/fft_test.qip not found
Warning (125092): Tcl Script File ../ip/fft128/fft_test.qip not found
Warning (125092): Tcl Script File soc_system/synthesis/soc_system.qip not found
Warning (125092): Tcl Script File ../ip/fft128/fft_test.qip not found
Warning (125092): Tcl Script File soc_system/synthesis/soc_system.qip not found

StratixV問題かな？ miyoxさんのアドバイスどおりに入れてみよう。まずはデバイスパッケージを入手。

Alteraのダウンロードセンターからstratixv-15.1.0.185.qdzをダウンロード。QuartusのTools > Install Devicesでインストールを試みるも、「このバージョンのQuartusには対応してない」と出てくるので、

$ cd ~/altera_lite/15.1/
$ unzip stratixv-15.1.0.185.qdz

として解凍。

これで再度make allすると、、結果は同じでしたorz

↑いまここ。

ref

http://qiita.com/yukitaketake/items/96f9fd8607cc1f3c8e7c
http://marsee101.blog19.fc2.com/blog-entry-3281.html
http://qiita.com/tags/Atlas-SoC
