xl2tpd + strongswan でVPN構築し、iPhone6から接続 (今のところ同一LAN以外では接続できない。)

More than 3 years have passed since last update.

参考

openswanパッケージが更新されたのですが、もうメンテナンスしてないからstrongSwanとかに乗り換えてね

インストール

  • ubuntu15.04にて実施。
    • このサーバのIPアドレスは 192.168.100.121
sudo apt-get install -y strongswan xl2tpd

strongswan (IPSec)

/etc/ipsec.conf
config setup

conn L2TP-NAT
    rightsubnet=0.0.0.0/0
    also=L2TP-noNAT

conn L2TP-noNAT
    forceencaps=yes
    authby=secret
    auto=add
    keyexchange=ikev1
    keyingtries=3
    ike=aes128-sha1-modp3072
    esp=aes128-sha1-modp3072
    rekey=no
    ikelifetime=8h
    lifetime=1h
    type=transport
    left=192.168.100.121    # 自サーバのIPアドレスを指定
    leftprotoport=17/1701
    right=%any
    rightprotoport=17/%any
    dpddelay=40
    dpdtimeout=130
    dpdaction=clear
/etc/ipsec.secrets
: PSK "PRESHAREDKEY"
/etc/strongswan.conf
  charon {
        load_modular = yes
        plugins {
                include strongswan.d/charon/*.conf
        }
+       dns1=8.8.8.8
+       dns2=8.8.4.4
  }

  include strongswan.d/*.conf
systemctl start strongswan

xl2tpd

/etc/xl2tpd/xl2tpd.conf
[lns default]
ip range = 192.168.100.4-192.168.100.5
local ip = 192.168.100.121    ; 自サーバのIPアドレスを指定
length bit = yes
refuse chap = yes
require authentication = yes
name = l2tp
pppoptfile = /etc/ppp/options.l2tpd.lns
/etc/ppp/options.l2tpd.lns
name l2tp
refuse-pap
refuse-chap
refuse-mschap
require-mschap-v2
ms-dns 8.8.8.8
nodefaultroute
lock
nobsdcomp
mtu 1280
mru 1280
/etc/ppp/chap-secrets
# client        server  secret                  IP addresses
client1  l2tp   ep2fai6T        *
client2  l2tp   hahGiv4i        *
systemctl start xl2tpd
/etc/sysctl.conf
net.ipv4.ip_forward=1

sudo sysctl -p

ログの見方

sudo journalctl -u strongswan -f -l

接続実施

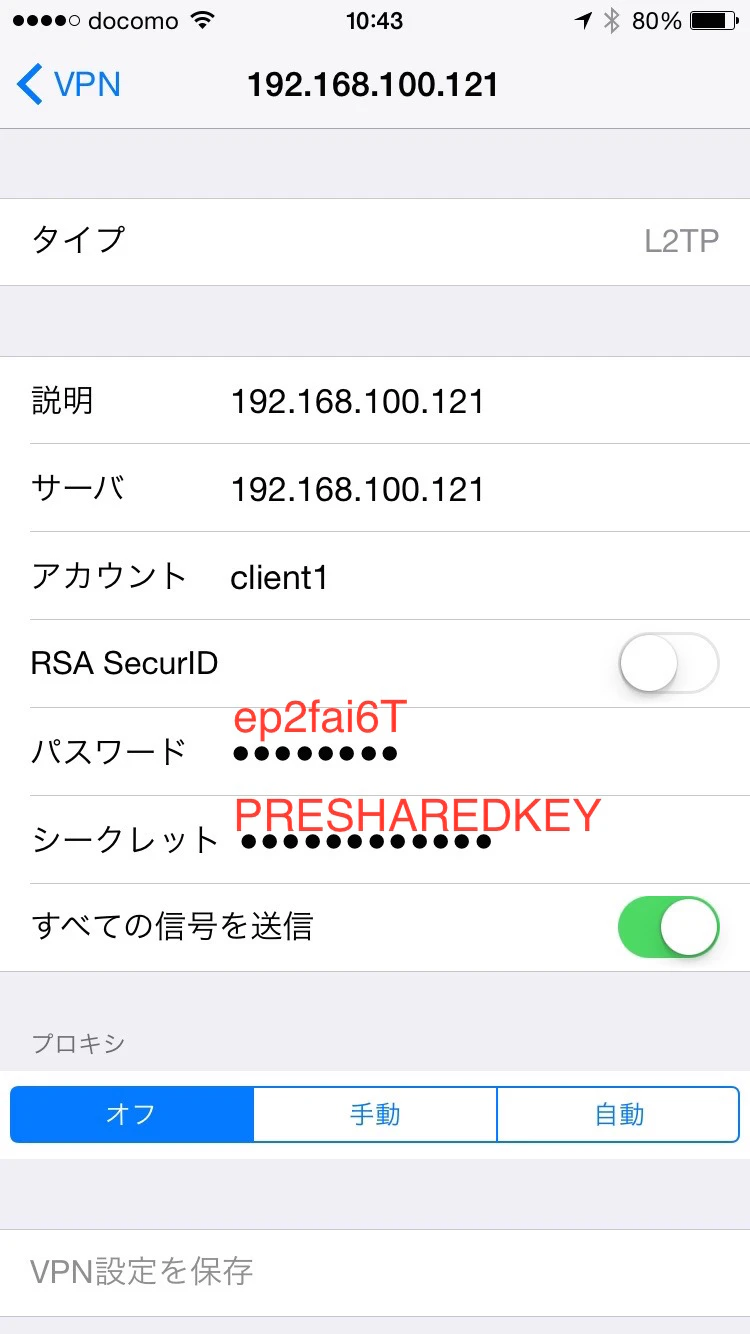

  • 設定

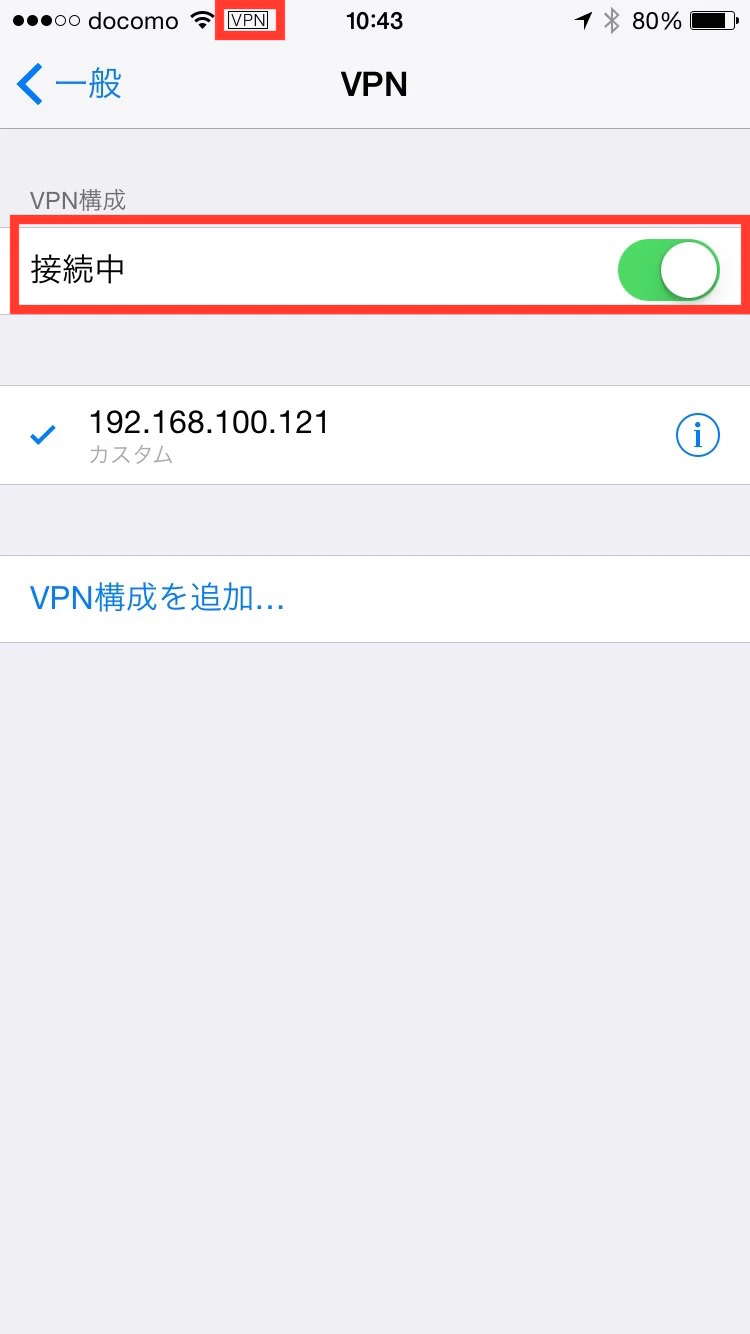

  • 接続成功


sudo ipsec status
