+Memo: Azure ネットワークとSmart NIC(FPGA )の利用方法
Changes in tags
Changes in body
Source | HTML | Preview
@@ -0,0 +1,34 @@
+Memo from "Microsoft's Production Configurable Cloud".
+By Mark Russinovich, CTO MS Azure.
+
+https://onedrive.live.com/view.aspx?resid=D026B4699190F1E6!2749
+
+# How much trials were required to bring FPGA usable in production?
+
+* Two generations were not usable for production. (v0, v1)
+* 3rd generation, Catapult V2, was used in production.
+ * Catapult V2 : All traffic go through FPGA. (40Gbps QSFP)
+ * Slide 21: ![catapult-v2.PNG](https://qiita-image-store.s3.amazonaws.com/0/93467/dd3641d7-ff47-6a95-5c8c-6bc938ae2edd.png)
+
+
+# Use cases which might be able to apply in private cloud
+
+## Accelerated Networking: bypass virtual switch by offloading to Intelligent NIC.
+
+* So called "VFP: Virtual Filtering Platform"
+* Flow based policy (match / action) (ex: sending to )
+* Encription
+* Loadbalancing (IP NAT, MAC re-write)
+* DNAT/SNAT
+* Filtering, ACL
+* Tenant VM plumbing (VNet Policy Routing)
+* Tunnel termination (encap/decap)

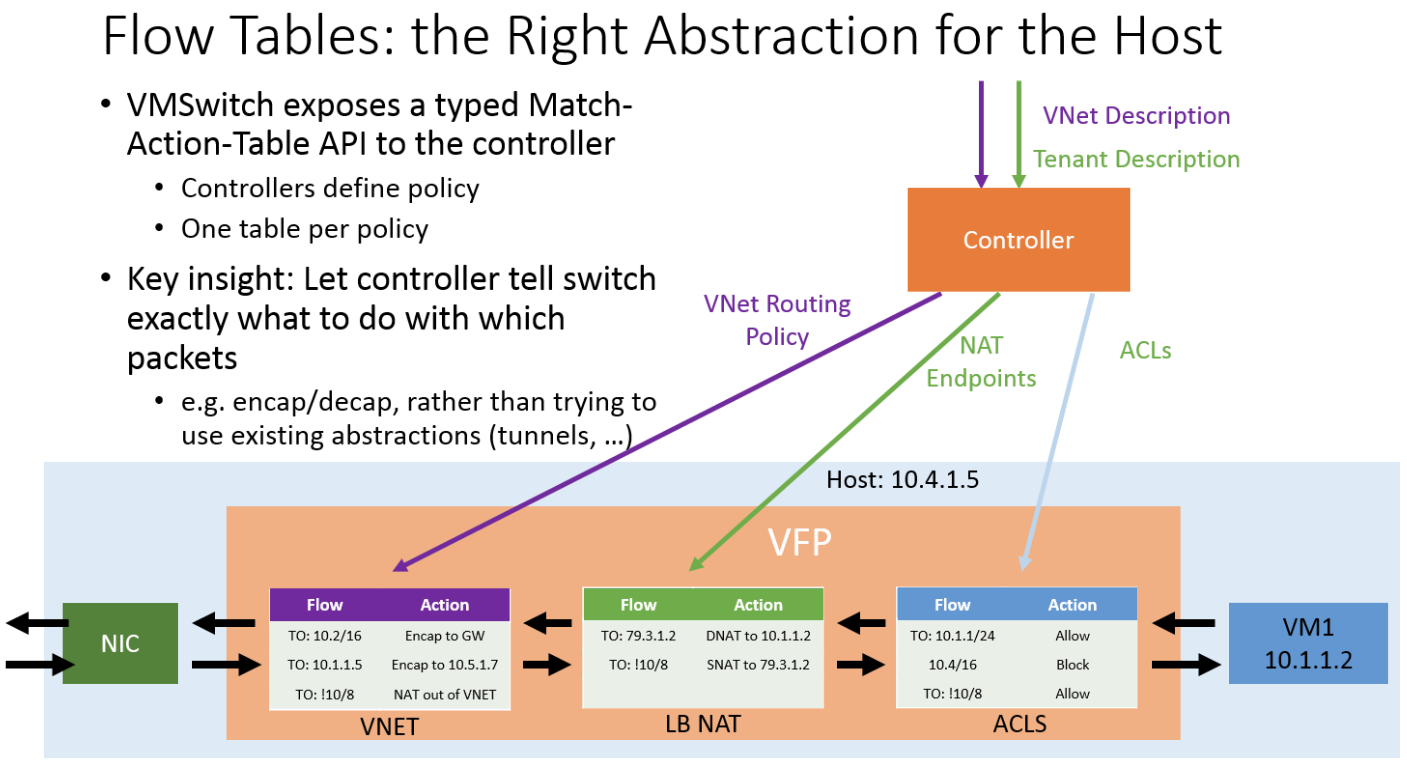

+* Slide 17: ![vfp-flowtables.PNG](https://qiita-image-store.s3.amazonaws.com/0/93467/898c3086-f057-0647-4c4c-f98e2e388c68.png)
+
+
+
+## Reduce CPU to CPU (=~VM to VM) latency under 20us for 12 hops!!
+
+* Using LTL: Lightweight Transport Layer.
+* But could be considered as an approach to reduce latency. (i.e. offload TCP to Intelligent NIC)

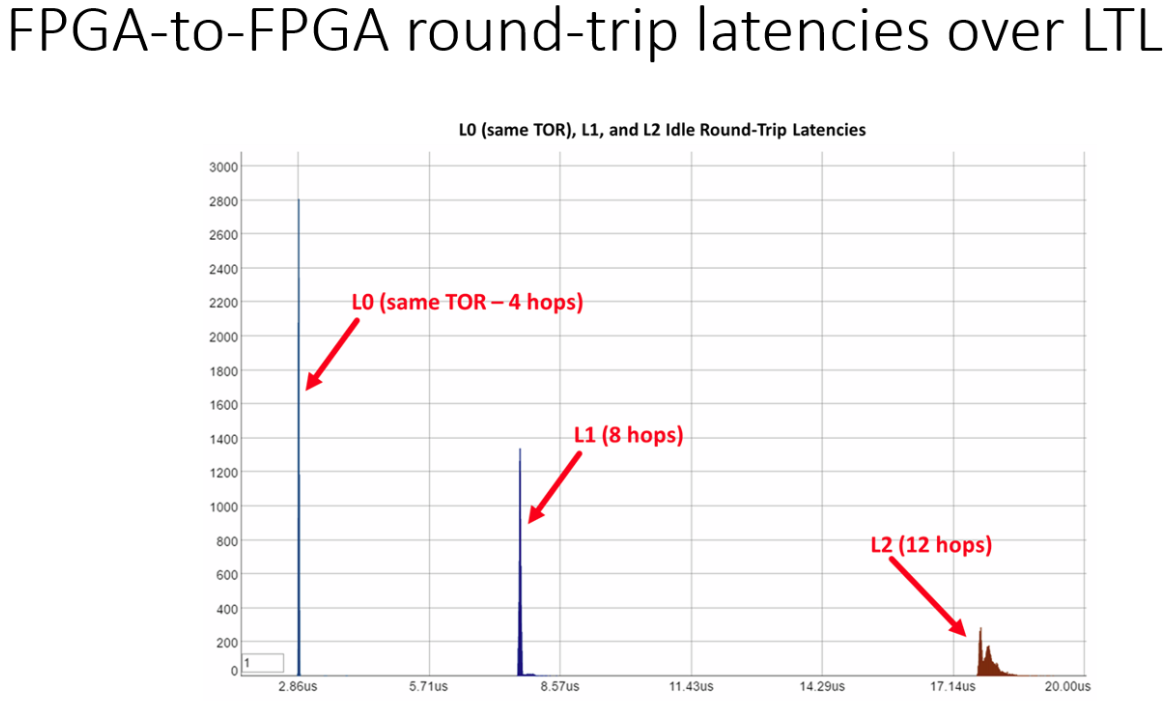

+* Slide 33: ![latency-over-ltl.PNG](https://qiita-image-store.s3.amazonaws.com/0/93467/82a3c32f-eed4-720a-86f1-fcb80b52d4a1.png)
