Ruby | Gviz で GitLab / GitLab CI / Kandan / Hubot の構成図を作成する

Posted at

Ruby | Gviz で GitLab / GitLab CI / Kandan / Hubot の構成図を作成する

概要

Gviz で GitLab / GitLab CI/ Kandan / Hubot の構成図を作成します。

コード

require "gviz"

Graph do
  nodes fontname:'MS UI GOTHIC', fontsize:20
  user_nodes = {shape: :none, fontsize:10, label: ''}
  server_nodes = {width: 3, height: 2, shape: :none, fontsize:10, label: ''}
  edges fontsize: 20

  node :User1, {image: "./actor.jpg"}.merge(user_nodes)
  node :User2, {image: "./actor.jpg"}.merge(user_nodes)
  node :Kandan, {image: "./kandan.png"}.merge(server_nodes)
  node :Hubot, {image: "./hubot.jpg"}.merge(server_nodes)
  node :GitLab, {image: "./gitlab.png"}.merge(server_nodes)
  node :GitLabCI, server_nodes.merge({image: "./gitlab_ci.png", width: 3, height: 1})
  node :GitLabCIRunner, server_nodes.merge({label: 'GitLab CI Runner', width: 3, height: 1, shape: :box3d, fontsize: 30 })

  edge :"User1_Kandan", {label: <<-EOS
Send chat message to User1
Ex: User1 @User2 hello
  EOS
  }

  edge :"User2_Kandan", {label: <<-EOS
Send chat message to Hubot
Ex: @hubot PING
  EOS
  }

  edge :"Kandan_Hubot", {label: 'Send message to Hubot'}
  edge :"Kandan_User1", {label: <<-EOS
Send chat message
Ex: GitLab push!
Ex: GitLab CI build success!
  EOS
  }

  edge :"Kandan_User2", {label: <<-EOS
Send chat message
Ex: User1 @User2 hello
Ex: PONG
Ex: GitLab push!
Ex: GitLab CI build success!
  EOS
  }

  edge :"Hubot_Kandan", {len: 3, label: <<-EOS
* Send chat message from Hubot.
  Ex: PONG
* Send chat message from GitLab.
  Ex: GitLab push!
* Send chat message from GitLab CI.
  Ex: GitLab CI build success!
  EOS
  }

  edge :"User1_GitLab", {label: 'GilLab push' }
  edge :"GitLab_Hubot", {label: <<-EOS
Send pull-event-json
to Hubot by WebHooks
  EOS
  }
  edge :"GitLab_GitLabCI", {label: 'Call GitLab CI Server'}
  edge :"GitLabCI_GitLab", {label: 'Send CI result'}
  edge :"GitLabCI_Hubot", {label: <<-EOS
Send ci-result-json
to Hubot by WebHooks2
  EOS
  }
  edge :"GitLabCI_GitLabCIRunner", {label: 'Call GitLab CI Runner'}
  edge :"GitLabCIRunner_GitLabCI", {label: 'Send CI Run result'}
  edge :"User1_User2", {label: 'I love you'}
  edge :"User2_User1", {label: 'I hate you'}

  rank :min, [:User1, :User2]
  rank :same, [:GitLab, :Kandan]
  rank :max, [:Hubot, :GitLabCI]

  save :"gitlab_hubot_kandan", :png
end

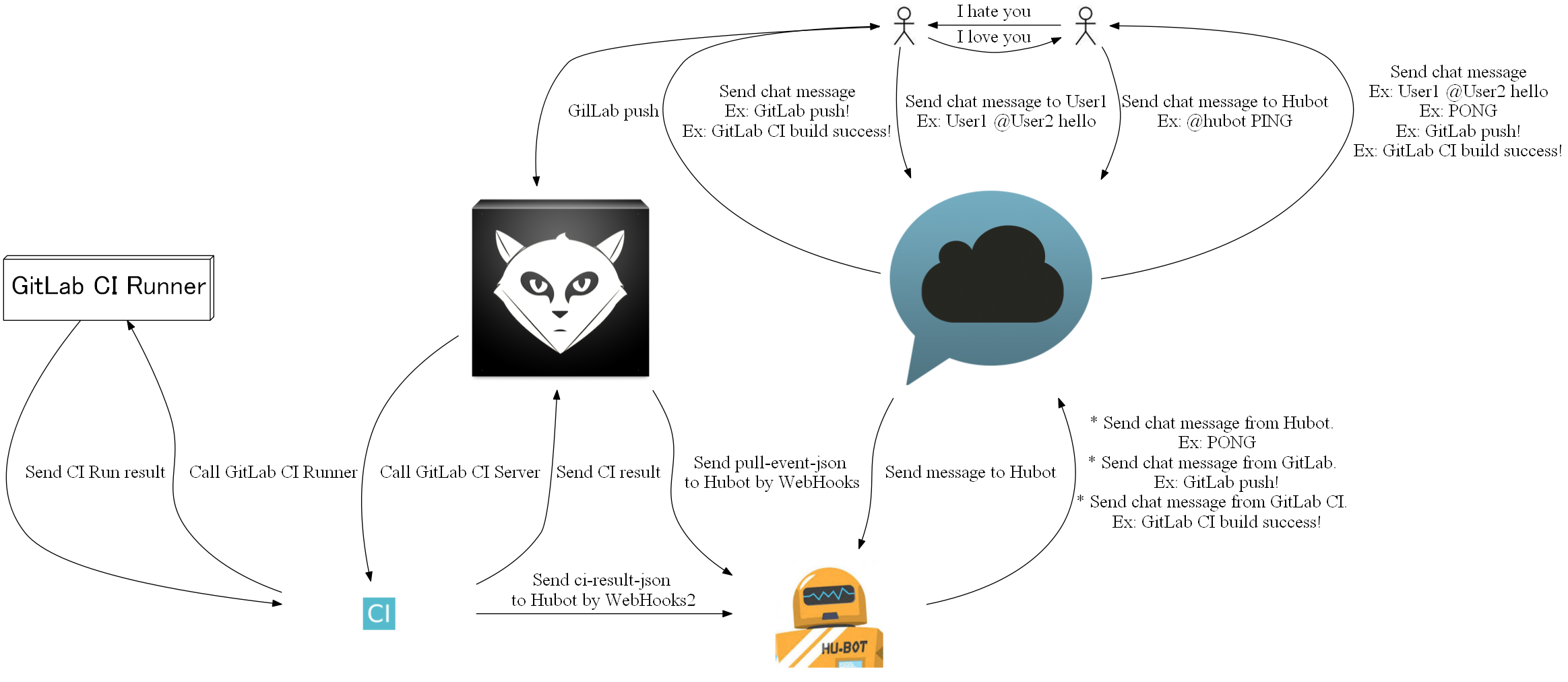

出力
