というのを踏んだ。実際に発生するのは「iOS7.0系すべての環境」よりは限定的かもしれない。

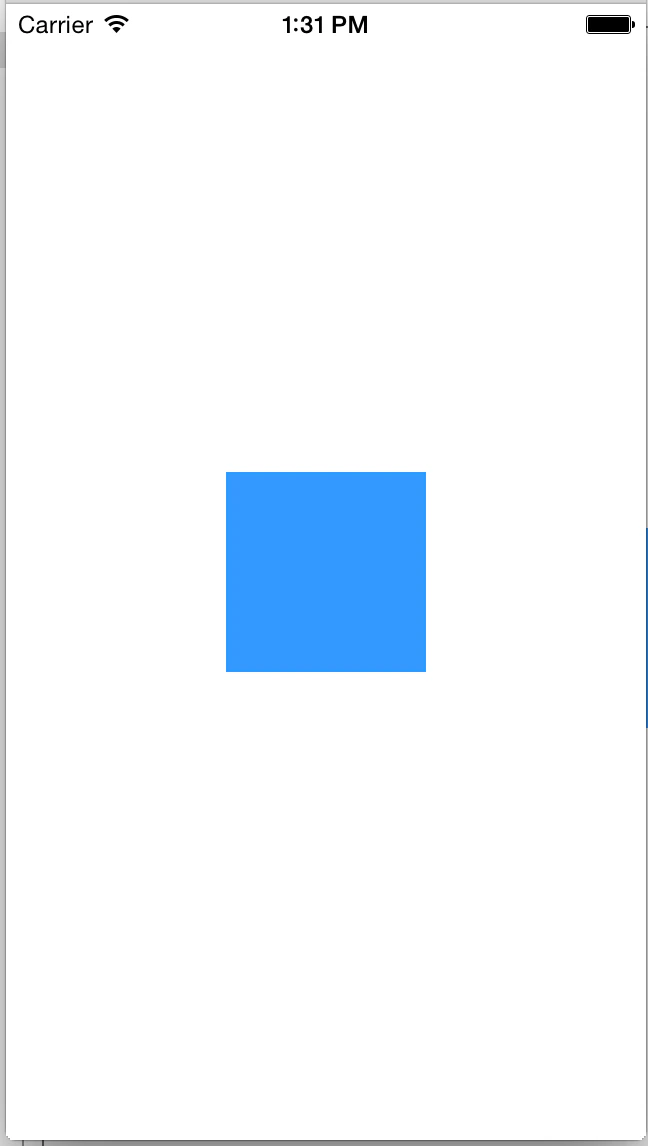

上記のような真ん中に100x100の画像を表示するだけのアプリケーションで

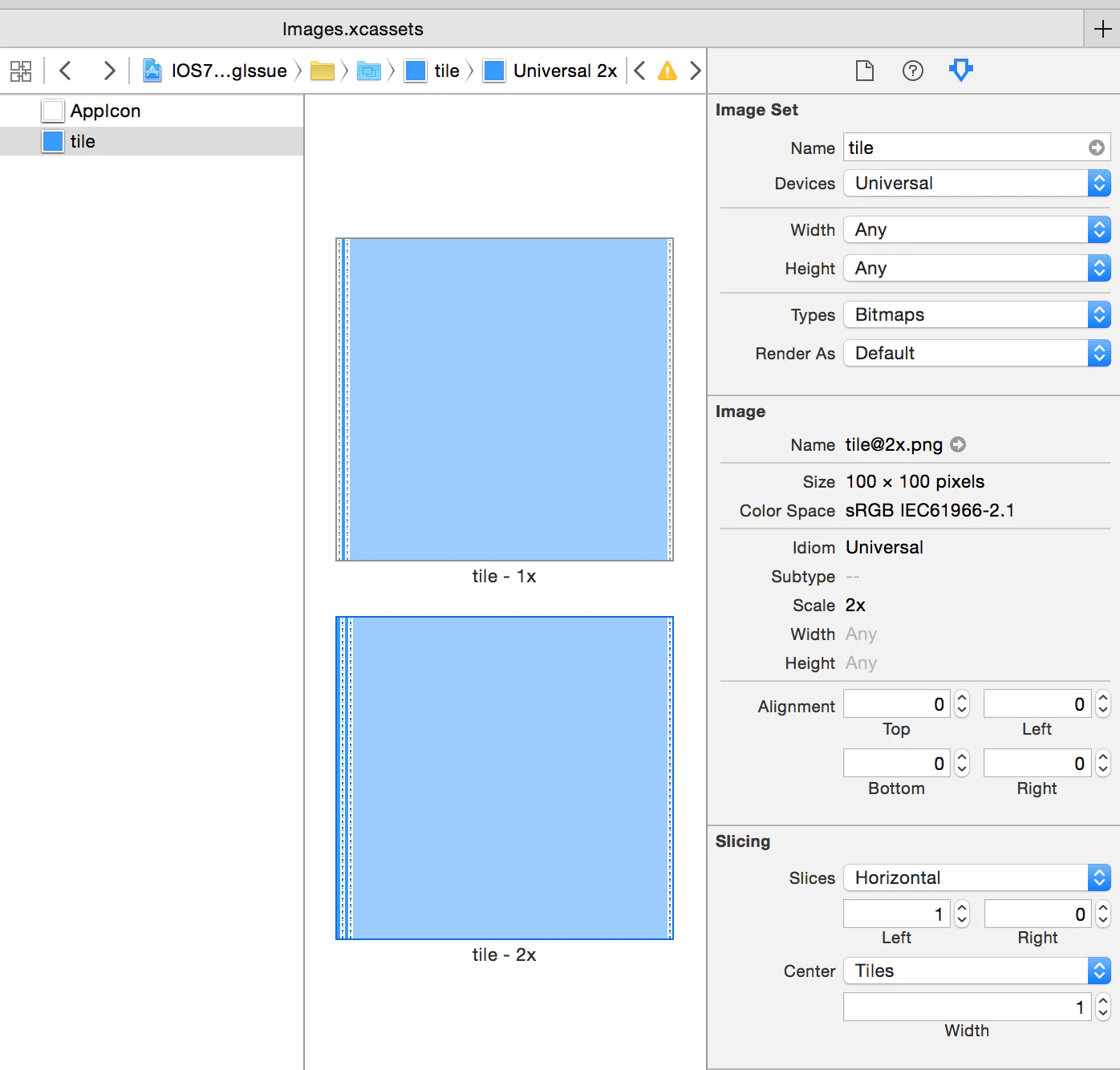

このように右辺を0に固定してアプリを実行するとこのViewを表示したタイミングでクラッシュする。
コンソールに出るログ
Nov 20 13:33:00 iPad-mini-Retina IOS70ImageSlicingIssue[1057] <Error>: CGImageProviderCreate: invalid image provider size: 0 x 100.
Nov 20 13:33:00 iPad-mini-Retina IOS70ImageSlicingIssue[1057] <Error>: CGImageCreate: invalid image size: 0 x 100.
Unable to create image from csi bitmap data
実証コードと
クラッシュレポート
Incident Identifier: C188E781-1482-4011-8212-BE04FB82EE93
CrashReporter Key: e4c8bdf4d7c7b8ea93ac27b6c7a3104677293ce3
Hardware Model: iPad4,4
Process: IOS70ImageSlicingIssue [1066]
Path: /var/mobile/Applications/B7F3F9F5-AC5F-4CA7-A594-8DACAA11C826/IOS70ImageSlicingIssue.app/IOS70ImageSlicingIssue
Identifier: com.example.IOS70ImageSlicingIssue
Version: 1 (1.0)
Code Type: ARM-64 (Native)
Parent Process: launchd [1]
Date/Time: 2014-11-20 13:35:30.990 +0900
OS Version: iOS 7.0.4 (11B554a)
Report Version: 104
Exception Type: EXC_BAD_ACCESS (SIGSEGV)
Exception Subtype: KERN_INVALID_ADDRESS at 0x0000000000000010
Triggered by Thread: 0
Thread 0 Crashed:
0 libobjc.A.dylib 0x000000019135b9d0 objc_msgSend + 16
1 CoreUI 0x0000000189ca099c -[CUINamedImage _renditionForSpecificKey:] + 204
2 CoreUI 0x0000000189ca09f8 -[CUINamedImage image] + 20
3 UIKit 0x0000000187f194c0 -[_UIAssetManager imageNamed:scale:idiom:subtype:cachingOptions:] + 300
4 UIKit 0x00000001882aa90c -[UIImageNibPlaceholder initWithCoder:] + 308
5 UIKit 0x000000018834dd90 UINibDecoderDecodeObjectForValue + 812
6 UIKit 0x000000018834da50 -[UINibDecoder decodeObjectForKey:] + 116
7 UIKit 0x0000000188207f64 -[UIImageView initWithCoder:] + 124
8 UIKit 0x000000018834dd90 UINibDecoderDecodeObjectForValue + 812
9 UIKit 0x000000018834dcf8 UINibDecoderDecodeObjectForValue + 660
10 UIKit 0x000000018834da50 -[UINibDecoder decodeObjectForKey:] + 116
11 UIKit 0x00000001881c5bb4 -[UIView initWithCoder:] + 496
12 UIKit 0x000000018834dd90 UINibDecoderDecodeObjectForValue + 812
13 UIKit 0x000000018834da50 -[UINibDecoder decodeObjectForKey:] + 116
14 UIKit 0x00000001882a9790 -[UIRuntimeConnection initWithCoder:] + 164
15 UIKit 0x000000018834dd90 UINibDecoderDecodeObjectForValue + 812
16 UIKit 0x000000018834dcf8 UINibDecoderDecodeObjectForValue + 660
17 UIKit 0x000000018834da50 -[UINibDecoder decodeObjectForKey:] + 116
18 UIKit 0x00000001882a8d0c -[UINib instantiateWithOwner:options:] + 948
19 UIKit 0x00000001881f7ab8 -[UIViewController _loadViewFromNibNamed:bundle:] + 276
20 UIKit 0x0000000187f000d4 -[UIViewController loadViewIfRequired] + 84
21 UIKit 0x0000000187f00040 -[UIViewController view] + 28
22 UIKit 0x0000000187f077d8 -[UIWindow addRootViewControllerViewIfPossible] + 68
23 UIKit 0x0000000187f04aac -[UIWindow _setHidden:forced:] + 304
24 UIKit 0x0000000187f78888 -[UIWindow makeKeyAndVisible] + 64
25 UIKit 0x0000000187f751ec -[UIApplication _callInitializationDelegatesForURL:payload:suspended:] + 2048
26 UIKit 0x0000000187f6e99c -[UIApplication _runWithURL:payload:launchOrientation:statusBarStyle:statusBarHidden:] + 768
27 UIKit 0x0000000187f0152c -[UIApplication handleEvent:withNewEvent:] + 3332
28 UIKit 0x0000000187f0071c -[UIApplication sendEvent:] + 100
29 UIKit 0x0000000187f6e0ac _UIApplicationHandleEvent + 708
30 GraphicsServices 0x000000018a8fd124 _PurpleEventCallback + 672
31 GraphicsServices 0x000000018a8fcc50 PurpleEventCallback + 44
32 CoreFoundation 0x0000000184feafc4 __CFRUNLOOP_IS_CALLING_OUT_TO_A_SOURCE1_PERFORM_FUNCTION__ + 52
33 CoreFoundation 0x0000000184feaf24 __CFRunLoopDoSource1 + 440
34 CoreFoundation 0x0000000184fe9148 __CFRunLoopRun + 1616
35 CoreFoundation 0x0000000184f29b34 CFRunLoopRunSpecific + 448
36 UIKit 0x0000000187f6d2d0 -[UIApplication _run] + 780
37 UIKit 0x0000000187f680e4 UIApplicationMain + 1152
38 IOS70ImageSlicingIssue 0x000000010008869c top_level_code (AppDelegate.swift:0)
39 IOS70ImageSlicingIssue 0x00000001000886dc main (AppDelegate.swift:0)
40 libdyld.dylib 0x000000019194ba9c start + 0
Thread 1:
0 libsystem_kernel.dylib 0x0000000191a2dac8 kevent64 + 8
1 libdispatch.dylib 0x0000000191931d74 _dispatch_mgr_thread + 48
Thread 2:
0 libsystem_kernel.dylib 0x0000000191a46e74 __workq_kernreturn + 8
1 libsystem_pthread.dylib 0x0000000191ac57a4 start_wqthread + 0
Thread 3:
0 libsystem_kernel.dylib 0x0000000191a46e74 __workq_kernreturn + 8
1 libsystem_pthread.dylib 0x0000000191ac57a4 start_wqthread + 0
Thread 0 crashed with ARM Thread State (64-bit):
x0: 0x0000000154d07750 x1: 0x0000000189cbf191 x2: 0x0000000000000008 x3: 0x0000000191a7fd18
x4: 0x0000000000000000 x5: 0x0000000000000000 x6: 0x0000000000000000 x7: 0x0000000000000000
x8: 0x0000000192d7d248 x9: 0x0000000000000000 x10: 0x00004cc17730e8f1 x11: 0x000000050000000f
x12: 0x00000001781eaf00 x13: 0xb000000000000000 x14: 0x000000003b8ffd49 x15: 0x00000000a8329864
x16: 0x000000019135b9c0 x17: 0x0000000191375b6c x18: 0x0000000000000000 x19: 0x0000000192d825b0
x20: 0x0000000178077ec0 x21: 0x0000000000000000 x22: 0x000000016fd7bc38 x23: 0x000000017802b940
x24: 0x0000000192d7f000 x25: 0x000000016fd7bbf0 x26: 0x0000000154d07750 x27: 0x0000000000000000
x28: 0x0000000189cbf191 fp: 0x000000016fd7bdd0 lr: 0x0000000189c9566c
sp: 0x000000016fd7bb40 pc: 0x000000019135b9d0 cpsr: 0x20000000
Binary Images:
0x100080000 - 0x10008bfff IOS70ImageSlicingIssue arm64 <a22c1dcde64d36e2988b1a9862619429> /var/mobile/Applications/B7F3F9F5-AC5F-4CA7-A594-8DACAA11C826/IOS70ImageSlicingIssue.app/IOS70ImageSlicingIssue
0x1000a0000 - 0x10022bfff libswiftCore.dylib arm64 <90a3d1e152773d3891e5244303a14295> /var/mobile/Applications/B7F3F9F5-AC5F-4CA7-A594-8DACAA11C826/IOS70ImageSlicingIssue.app/Frameworks/libswiftCore.dylib
0x100384000 - 0x10039bfff libswiftCoreGraphics.dylib arm64 <32c660f5872134d09f8c24865889ab95> /var/mobile/Applications/B7F3F9F5-AC5F-4CA7-A594-8DACAA11C826/IOS70ImageSlicingIssue.app/Frameworks/libswiftCoreGraphics.dylib
0x1003b4000 - 0x1003b7fff libswiftCoreImage.dylib arm64 <88f462066aab382e81690d7c671b0b83> /var/mobile/Applications/B7F3F9F5-AC5F-4CA7-A594-8DACAA11C826/IOS70ImageSlicingIssue.app/Frameworks/libswiftCoreImage.dylib
0x1003c0000 - 0x1003c7fff libswiftDarwin.dylib arm64 <f313102c33913c7db93ffd9c46ede735> /var/mobile/Applications/B7F3F9F5-AC5F-4CA7-A594-8DACAA11C826/IOS70ImageSlicingIssue.app/Frameworks/libswiftDarwin.dylib
0x1003d8000 - 0x1003dbfff libswiftDispatch.dylib arm64 <00779692384135d8a274116860f5b11c> /var/mobile/Applications/B7F3F9F5-AC5F-4CA7-A594-8DACAA11C826/IOS70ImageSlicingIssue.app/Frameworks/libswiftDispatch.dylib
0x1003e8000 - 0x100433fff libswiftFoundation.dylib arm64 <b3f802b19e4e309993d05150e2c36b8f> /var/mobile/Applications/B7F3F9F5-AC5F-4CA7-A594-8DACAA11C826/IOS70ImageSlicingIssue.app/Frameworks/libswiftFoundation.dylib
0x100468000 - 0x10046ffff libswiftObjectiveC.dylib arm64 <893887a745303a25b7bdf1963091c60c> /var/mobile/Applications/B7F3F9F5-AC5F-4CA7-A594-8DACAA11C826/IOS70ImageSlicingIssue.app/Frameworks/libswiftObjectiveC.dylib
0x10047c000 - 0x10047ffff libswiftSecurity.dylib arm64 <b421d3da0dda31ee8d54489b20983d24> /var/mobile/Applications/B7F3F9F5-AC5F-4CA7-A594-8DACAA11C826/IOS70ImageSlicingIssue.app/Frameworks/libswiftSecurity.dylib
0x100488000 - 0x10048bfff libswiftUIKit.dylib arm64 <0424c0ed972631f4bae2b48d934df311> /var/mobile/Applications/B7F3F9F5-AC5F-4CA7-A594-8DACAA11C826/IOS70ImageSlicingIssue.app/Frameworks/libswiftUIKit.dylib
0x12005c000 - 0x120083fff dyld arm64 <b9f4cfd5259d389887ae4f252ac88b71> /usr/lib/dyld
0x183dec000 - 0x183deffff Accelerate arm64 <b6ed249ac075366ab36f1751b26bc97b> /System/Library/Frameworks/Accelerate.framework/Accelerate
0x183dfc000 - 0x183fcffff vImage arm64 <2d33bede6c813e2da933fbca2385614e> /System/Library/Frameworks/Accelerate.framework/Frameworks/vImage.framework/vImage
0x183fd0000 - 0x18406ffff libBLAS.dylib arm64 <768246f821d63497a1edb840af38bd5b> /System/Library/Frameworks/Accelerate.framework/Frameworks/vecLib.framework/libBLAS.dylib
0x184070000 - 0x1843d7fff libLAPACK.dylib arm64 <36d3ff7c4b5b3cd2876872e8d3e44908> /System/Library/Frameworks/Accelerate.framework/Frameworks/vecLib.framework/libLAPACK.dylib
0x1843d8000 - 0x18442ffff libvDSP.dylib arm64 <b22a81d86bb83c95af3b9931d35db7b7> /System/Library/Frameworks/Accelerate.framework/Frameworks/vecLib.framework/libvDSP.dylib
0x184430000 - 0x18444ffff libvMisc.dylib arm64 <00f129650d1a3697bc5182632320d91c> /System/Library/Frameworks/Accelerate.framework/Frameworks/vecLib.framework/libvMisc.dylib
0x184450000 - 0x184453fff vecLib arm64 <6afbebd473fa3d2b948dc87e0cbfc86c> /System/Library/Frameworks/Accelerate.framework/Frameworks/vecLib.framework/vecLib
0x184454000 - 0x18447bfff Accounts arm64 <4802ba35478d308fb05a36112be92ca2> /System/Library/Frameworks/Accounts.framework/Accounts
0x184480000 - 0x1844f7fff AddressBook arm64 <a04c222f039d3e648fab625b1bd7d5c7> /System/Library/Frameworks/AddressBook.framework/AddressBook
0x184b14000 - 0x184c7ffff CFNetwork arm64 <a611ae9cee9d31248c1c09d099c77eed> /System/Library/Frameworks/CFNetwork.framework/CFNetwork
0x184c80000 - 0x184ce3fff CoreAudio arm64 <369f52992ea13a37a63c75374fb9183a> /System/Library/Frameworks/CoreAudio.framework/CoreAudio
0x184d00000 - 0x184f1ffff CoreData arm64 <71980cd5398438a1af7f8e7d88b21e92> /System/Library/Frameworks/CoreData.framework/CoreData
0x184f20000 - 0x1850abff7 CoreFoundation arm64 <da5c56450a6632b3b4349eb9de5f1091> /System/Library/Frameworks/CoreFoundation.framework/CoreFoundation
0x1850ac000 - 0x18520bfff CoreGraphics arm64 <f1f94337421e32fba1528b67c8d80b1a> /System/Library/Frameworks/CoreGraphics.framework/CoreGraphics
0x185210000 - 0x18525bfff libCGFreetype.A.dylib arm64 <e4dee8458a553478a5b608ba7d178dcc> /System/Library/Frameworks/CoreGraphics.framework/Resources/libCGFreetype.A.dylib
0x185260000 - 0x18526bfff libCMSBuiltin.A.dylib arm64 <adc1761b968d378db059aaaebae0b313> /System/Library/Frameworks/CoreGraphics.framework/Resources/libCMSBuiltin.A.dylib
0x185460000 - 0x18547ffff libRIP.A.dylib arm64 <ea8b666eff763fa1b354de30ad22fc42> /System/Library/Frameworks/CoreGraphics.framework/Resources/libRIP.A.dylib
0x185480000 - 0x185577fff CoreImage arm64 <b031c8067f043b98b3e49c8cc2cfbf9c> /System/Library/Frameworks/CoreImage.framework/CoreImage
0x185608000 - 0x18569bfff CoreMedia arm64 <3256bb75df4d31c9a6a593811dc3f1d6> /System/Library/Frameworks/CoreMedia.framework/CoreMedia
0x185754000 - 0x1857c3fff CoreTelephony arm64 <eb4192eb2fb13205ab0376605f2fb137> /System/Library/Frameworks/CoreTelephony.framework/CoreTelephony
0x1857c4000 - 0x18587ffff CoreText arm64 <4f01989631143315aa9efaad5bd73a56> /System/Library/Frameworks/CoreText.framework/CoreText
0x185880000 - 0x185897fff CoreVideo arm64 <cd5b2a4b1a3234498384a7d31bbb2510> /System/Library/Frameworks/CoreVideo.framework/CoreVideo
0x185aac000 - 0x185cebfff Foundation arm64 <b899c77034783549a78bf3a52730f20f> /System/Library/Frameworks/Foundation.framework/Foundation
0x185f18000 - 0x185f83fff IOKit arm64 <a4cac747f7bd35d1b4f034b403acba86> /System/Library/Frameworks/IOKit.framework/Versions/A/IOKit
0x185f84000 - 0x1861e7fff ImageIO arm64 <f9733403c35f375b817af86d57e5b842> /System/Library/Frameworks/ImageIO.framework/ImageIO
0x1861e8000 - 0x1864f7fff JavaScriptCore arm64 <2f30c0128a7e39f591943c5e5d98c4d3> /System/Library/Frameworks/JavaScriptCore.framework/JavaScriptCore
0x1865a8000 - 0x1865affff MediaAccessibility arm64 <fcc28bc7a18e354b9fd480b26e138d72> /System/Library/Frameworks/MediaAccessibility.framework/MediaAccessibility
0x186bb4000 - 0x186c2ffff MobileCoreServices arm64 <8f7311cade8a3cc1b0d33fafcc70e04c> /System/Library/Frameworks/MobileCoreServices.framework/MobileCoreServices
0x18788c000 - 0x187897fff OpenGLES arm64 <1f76e6f36c943bfa9420cdf91faed689> /System/Library/Frameworks/OpenGLES.framework/OpenGLES
0x18789c000 - 0x18789ffff libCVMSPluginSupport.dylib arm64 <c178baa2b6c63835aeab0392af659321> /System/Library/Frameworks/OpenGLES.framework/libCVMSPluginSupport.dylib
0x1878a4000 - 0x1878abfff libCoreVMClient.dylib arm64 <368eb790f43533d783086a8b66fdca5f> /System/Library/Frameworks/OpenGLES.framework/libCoreVMClient.dylib
0x1878ac000 - 0x1878b7fff libGFXShared.dylib arm64 <7ccf2bc4bd863a8480e873be2cc6f5af> /System/Library/Frameworks/OpenGLES.framework/libGFXShared.dylib
0x1878b8000 - 0x187903fff libGLImage.dylib arm64 <92ef6ad816183776a7b1269511342f4d> /System/Library/Frameworks/OpenGLES.framework/libGLImage.dylib
0x187ae8000 - 0x187c5ffff QuartzCore arm64 <6971da012b86393aa9e1d311ab5a4db2> /System/Library/Frameworks/QuartzCore.framework/QuartzCore
0x187cc4000 - 0x187d1bfff Security arm64 <1e4c353ee514375eaf470779401fd9e9> /System/Library/Frameworks/Security.framework/Security
0x187e80000 - 0x187ee7fff SystemConfiguration arm64 <30e7f8e4046434ea98e9cab777771c4e> /System/Library/Frameworks/SystemConfiguration.framework/SystemConfiguration
0x187eec000 - 0x1886c7fff UIKit arm64 <f7ddfd26f3513a4b9266cbd849b1ce6e> /System/Library/Frameworks/UIKit.framework/UIKit
0x1886c8000 - 0x188723fff VideoToolbox arm64 <0d9db85ef6113e2db8d2e9a2d524a899> /System/Library/Frameworks/VideoToolbox.framework/VideoToolbox
0x188b78000 - 0x188b7ffff AggregateDictionary arm64 <44c08389ffdd3fbabb09b3e72e90a012> /System/Library/PrivateFrameworks/AggregateDictionary.framework/AggregateDictionary
0x1891d0000 - 0x18921bfff AppSupport arm64 <a556e2bcbb2835e0b76c24cdc0a47efd> /System/Library/PrivateFrameworks/AppSupport.framework/AppSupport
0x18933c000 - 0x18934bfff AssetsLibraryServices arm64 <0231391794523f4190fe2cf6ed68f30f> /System/Library/PrivateFrameworks/AssetsLibraryServices.framework/AssetsLibraryServices
0x18939c000 - 0x1893c7fff BackBoardServices arm64 <194530090fe9305c872734aed0d8e1e3> /System/Library/PrivateFrameworks/BackBoardServices.framework/BackBoardServices
0x1893d4000 - 0x189403fff Bom arm64 <af2397effb0134448891de86518e570f> /System/Library/PrivateFrameworks/Bom.framework/Bom
0x1895f0000 - 0x1895f7fff CertUI arm64 <ef6bd31ca0e038b7b835a90529c3275c> /System/Library/PrivateFrameworks/CertUI.framework/CertUI
0x189758000 - 0x189767fff CommonUtilities arm64 <62219a9993de3e09a9a994c02ed32146> /System/Library/PrivateFrameworks/CommonUtilities.framework/CommonUtilities
0x189768000 - 0x18976ffff CommunicationsFilter arm64 <c3ca25979eaa3d90af26cd8348384719> /System/Library/PrivateFrameworks/CommunicationsFilter.framework/CommunicationsFilter
0x189b94000 - 0x189b97fff CoreSurface arm64 <7558827d755e3de68b6c82a94dcd6bf7> /System/Library/PrivateFrameworks/CoreSurface.framework/CoreSurface
0x189c60000 - 0x189cc7fff CoreUI arm64 <9b326c828ac030f4bf88050b273d5613> /System/Library/PrivateFrameworks/CoreUI.framework/CoreUI
0x189d24000 - 0x189d2bfff CrashReporterSupport arm64 <3b8919f4e8be3e4c81bee57d903f4d58> /System/Library/PrivateFrameworks/CrashReporterSupport.framework/CrashReporterSupport
0x189f3c000 - 0x189f53fff DataAccessExpress arm64 <7d5ae8c8280f3607b4d9454386bd25b8> /System/Library/PrivateFrameworks/DataAccessExpress.framework/DataAccessExpress
0x189fb0000 - 0x189fd3fff DictionaryServices arm64 <c8b40995ed5d391cb2dc6dc4ac62a92e> /System/Library/PrivateFrameworks/DictionaryServices.framework/DictionaryServices
0x18a024000 - 0x18a033fff ExFAT arm64 <de4388c222053d898dae38f6d54e76df> /System/Library/PrivateFrameworks/ExFAT.framework/ExFAT
0x18a078000 - 0x18a49bfff FaceCore arm64 <9b13667c0bff3d87a35cd46c2a7c3336> /System/Library/PrivateFrameworks/FaceCore.framework/FaceCore
0x18a8f0000 - 0x18a903fff GraphicsServices arm64 <8961e9deecaf3e4391974d509a888956> /System/Library/PrivateFrameworks/GraphicsServices.framework/GraphicsServices
0x18ad24000 - 0x18ad8bfff IMFoundation arm64 <5d2af9b3bf8532c5ba06fd57341eb85d> /System/Library/PrivateFrameworks/IMFoundation.framework/IMFoundation
0x18ad98000 - 0x18ada3fff IOMobileFramebuffer arm64 <ba594ee89f1f335dba048677f95f24b4> /System/Library/PrivateFrameworks/IOMobileFramebuffer.framework/IOMobileFramebuffer
0x18ada4000 - 0x18adabfff IOSurface arm64 <9c0ffccd139138679656601ad9967d62> /System/Library/PrivateFrameworks/IOSurface.framework/IOSurface
0x18b234000 - 0x18b243fff MobileAsset arm64 <d0514e7514363bfdbe7a84fc241065b8> /System/Library/PrivateFrameworks/MobileAsset.framework/MobileAsset
0x18b2a4000 - 0x18b2affff MobileKeyBag arm64 <4244010012a83d20bec7579fe581b8ad> /System/Library/PrivateFrameworks/MobileKeyBag.framework/MobileKeyBag
0x18b2e4000 - 0x18b2e7fff MobileSystemServices arm64 <5394860558733f208f527a73100982b3> /System/Library/PrivateFrameworks/MobileSystemServices.framework/MobileSystemServices
0x18b600000 - 0x18b603fff OAuth arm64 <9c24b311c14337588b9cb77061f4b7bd> /System/Library/PrivateFrameworks/OAuth.framework/OAuth
0x18bdc8000 - 0x18be17fff OpenCL arm64 <991646710f803e388732578053de4621> /System/Library/PrivateFrameworks/OpenCL.framework/OpenCL
0x18ca2c000 - 0x18ca5bfff PhysicsKit arm64 <de6ad4c1a3c23279a8c0d18acd09f1c9> /System/Library/PrivateFrameworks/PhysicsKit.framework/PhysicsKit
0x18cb6c000 - 0x18cbaffff PrintKit arm64 <61e9c7577307302690cd9dbbfd7527ef> /System/Library/PrivateFrameworks/PrintKit.framework/PrintKit
0x18cbb4000 - 0x18cc67fff ProofReader arm64 <37aa7ffe7173354f97342f55599c83a2> /System/Library/PrivateFrameworks/ProofReader.framework/ProofReader
0x18d07c000 - 0x18d097fff SpringBoardServices arm64 <adfa7fccb3543f7bb88c451f5a569f99> /System/Library/PrivateFrameworks/SpringBoardServices.framework/SpringBoardServices
0x18d514000 - 0x18d517fff TCC arm64 <24f3e902f88c3be3a999c86f8ad3622e> /System/Library/PrivateFrameworks/TCC.framework/TCC
0x18d56c000 - 0x18d593fff TelephonyUtilities arm64 <5a9c4400d38d3d9b9775401603794985> /System/Library/PrivateFrameworks/TelephonyUtilities.framework/TelephonyUtilities
0x18dc8c000 - 0x18dcb7fff TextInput arm64 <84ff20d4cc5d3ce4bd97c92e6273ba97> /System/Library/PrivateFrameworks/TextInput.framework/TextInput
0x18dfa4000 - 0x18e07ffff UIFoundation arm64 <462005835c5d3a528e09339ac944c574> /System/Library/PrivateFrameworks/UIFoundation.framework/UIFoundation
0x18e09c000 - 0x18e09ffff UserFS arm64 <d1654bdcc7003d31b33ee53a78cf86ea> /System/Library/PrivateFrameworks/UserFS.framework/UserFS
0x18e594000 - 0x18f3abfff WebCore arm64 <66ddd09eb2da35e29038d6719a4c63ea> /System/Library/PrivateFrameworks/WebCore.framework/WebCore
0x18f3ac000 - 0x18f483fff WebKit arm64 <9c98a57c8ca038b084202e5d49fd477f> /System/Library/PrivateFrameworks/WebKit.framework/WebKit
0x18f5f8000 - 0x18f603fff XPCObjects arm64 <f9c20f3bd0563beaa8bb15e6b519a8ff> /System/Library/PrivateFrameworks/XPCObjects.framework/XPCObjects
0x1907bc000 - 0x1907c3fff libAccessibility.dylib arm64 <bd5252e1a3e5313a89db7f3f14f97c0d> /usr/lib/libAccessibility.dylib
0x1908e4000 - 0x1908fffff libCRFSuite.dylib arm64 <7fcd5659cad938d8a2b313ae3d2869f8> /usr/lib/libCRFSuite.dylib
0x190924000 - 0x19093ffff libMobileGestalt.dylib arm64 <f9532e83118b34ae93b26fc83c1aa025> /usr/lib/libMobileGestalt.dylib
0x190964000 - 0x190967fff libSystem.B.dylib arm64 <97b4e1a18d813d80b19542f744b66d3a> /usr/lib/libSystem.B.dylib
0x1909e0000 - 0x190a13fff libTelephonyUtilDynamic.dylib arm64 <cc02a3516565329bb9d32a800e797221> /usr/lib/libTelephonyUtilDynamic.dylib
0x190b84000 - 0x190b97fff libbsm.0.dylib arm64 <0d1329085a4034a391c91a1a26f0edeb> /usr/lib/libbsm.0.dylib
0x190b98000 - 0x190ba7fff libbz2.1.0.dylib arm64 <b36b43728509368e88ec6b6ee84d908f> /usr/lib/libbz2.1.0.dylib
0x190ba8000 - 0x190bfffff libc++.1.dylib arm64 <d3503ec58f423704ba80272da35040cc> /usr/lib/libc++.1.dylib
0x190c00000 - 0x190c1ffff libc++abi.dylib arm64 <8961fed30cb53617aceeb468f1008b47> /usr/lib/libc++abi.dylib
0x190cac000 - 0x190d9ffff libiconv.2.dylib arm64 <f8cb8b81c9823b1b8be4a37c42176e77> /usr/lib/libiconv.2.dylib
0x190da0000 - 0x190f5ffff libicucore.A.dylib arm64 <aaaa6ebe88a23c5db4f817fbacedfb1e> /usr/lib/libicucore.A.dylib
0x190f6c000 - 0x190f6ffff liblangid.dylib arm64 <e99668aaa98e3996bbf3853add95c62c> /usr/lib/liblangid.dylib
0x190f70000 - 0x190f7ffff liblockdown.dylib arm64 <388524b0b6de31c4b7b095f28b47ebf3> /usr/lib/liblockdown.dylib
0x191320000 - 0x191353fff libncurses.5.4.dylib arm64 <212c714d9aec35d491abdd13cc593fb8> /usr/lib/libncurses.5.4.dylib
0x191354000 - 0x19150bfff libobjc.A.dylib arm64 <524f9ce80c9436e6a922142294f5115f> /usr/lib/libobjc.A.dylib
0x191604000 - 0x191623fff libresolv.9.dylib arm64 <b0a3240055c936cd82ff002c2350591a> /usr/lib/libresolv.9.dylib
0x191654000 - 0x191713fff libsqlite3.dylib arm64 <9868c31f5c073eebb4ecc17726b49b5d> /usr/lib/libsqlite3.dylib
0x191714000 - 0x191767fff libstdc++.6.dylib arm64 <c2ff3ca5ae1230ccb77b558fd94d30fb> /usr/lib/libstdc++.6.dylib
0x191768000 - 0x19179bfff libtidy.A.dylib arm64 <beba6903cf443197ad16493d875f8cad> /usr/lib/libtidy.A.dylib
0x1917a0000 - 0x19188bfff libxml2.2.dylib arm64 <ccaabe2877c03d398b42e629a2767e94> /usr/lib/libxml2.2.dylib
0x19188c000 - 0x1918b7fff libxslt.1.dylib arm64 <f933fe6721723f6299945927a9ad0d5e> /usr/lib/libxslt.1.dylib
0x1918b8000 - 0x1918cbfff libz.1.dylib arm64 <28f48666a0f03dc697c756d142dee0f4> /usr/lib/libz.1.dylib
0x1918cc000 - 0x1918d3fff libcache.dylib arm64 <c5466acb826f3995b8187283aa160a83> /usr/lib/system/libcache.dylib
0x1918d4000 - 0x1918dffff libcommonCrypto.dylib arm64 <5b75c92c15f23510afe75f4c8feddbf9> /usr/lib/system/libcommonCrypto.dylib
0x1918e0000 - 0x1918e3fff libcompiler_rt.dylib arm64 <b5dda2d4c149348db49512fa47680b75> /usr/lib/system/libcompiler_rt.dylib
0x1918e4000 - 0x1918ebfff libcopyfile.dylib arm64 <c574439b8aac3da494851dd4d2ae045d> /usr/lib/system/libcopyfile.dylib
0x1918ec000 - 0x19192bfff libcorecrypto.dylib arm64 <87d86047d77c3ec7ad24cdfbc8a2f1f8> /usr/lib/system/libcorecrypto.dylib
0x19192c000 - 0x191947fff libdispatch.dylib arm64 <eee84c83cd283590bbac8f50e57c0321> /usr/lib/system/libdispatch.dylib
0x191948000 - 0x19194bfff libdyld.dylib arm64 <315864e397783fed95e9a5c1654c5e80> /usr/lib/system/libdyld.dylib
0x19194c000 - 0x191953fff liblaunch.dylib arm64 <59c667773cc23fa598d6bf8fece69849> /usr/lib/system/liblaunch.dylib
0x191954000 - 0x19195bfff libmacho.dylib arm64 <9fc1c4398fcf324fb6271ce5ec374477> /usr/lib/system/libmacho.dylib
0x19195c000 - 0x19195ffff libremovefile.dylib arm64 <bbdfda68a5a53ee5947f473e2a5536d5> /usr/lib/system/libremovefile.dylib
0x191960000 - 0x191973fff libsystem_asl.dylib arm64 <f0493c144ac830e1b4c7019639bcd43d> /usr/lib/system/libsystem_asl.dylib
0x191974000 - 0x191977fff libsystem_blocks.dylib arm64 <d3accf6da8613827a79b0857a16121cb> /usr/lib/system/libsystem_blocks.dylib
0x191978000 - 0x1919f7fff libsystem_c.dylib arm64 <1128ed21281a3953b8ee4d3fcf08843a> /usr/lib/system/libsystem_c.dylib
0x1919f8000 - 0x1919fbfff libsystem_configuration.dylib arm64 <b63245076dee36188b5f5bd1c831ca95> /usr/lib/system/libsystem_configuration.dylib
0x1919fc000 - 0x191a07fff libsystem_dnssd.dylib arm64 <6a7623fd683a3492a313690b30a6b5f3> /usr/lib/system/libsystem_dnssd.dylib
0x191a08000 - 0x191a2bfff libsystem_info.dylib arm64 <f694e5a5e3973b049b5447363aaa1834> /usr/lib/system/libsystem_info.dylib
0x191a2c000 - 0x191a4bfff libsystem_kernel.dylib arm64 <62e992db941432b19fb88aef8a3cf46c> /usr/lib/system/libsystem_kernel.dylib
0x191a4c000 - 0x191a6bfff libsystem_m.dylib arm64 <5d8cff5e9593327a8d12b9591f8bfc59> /usr/lib/system/libsystem_m.dylib
0x191a6c000 - 0x191a87fff libsystem_malloc.dylib arm64 <37c94c4c394237e8985f39d8d4340339> /usr/lib/system/libsystem_malloc.dylib
0x191a88000 - 0x191aaffff libsystem_network.dylib arm64 <a6f939169447323da521525a78ba818c> /usr/lib/system/libsystem_network.dylib
0x191ab0000 - 0x191abbfff libsystem_notify.dylib arm64 <207be190e81f378f886b0c7fc2654336> /usr/lib/system/libsystem_notify.dylib
0x191abc000 - 0x191ac3fff libsystem_platform.dylib arm64 <6049676e1a743e169a0b1b32300250ac> /usr/lib/system/libsystem_platform.dylib
0x191ac4000 - 0x191acbfff libsystem_pthread.dylib arm64 <6309e01b424732428c06f7b268a329ca> /usr/lib/system/libsystem_pthread.dylib
0x191acc000 - 0x191acffff libsystem_sandbox.dylib arm64 <abfbb3d224523ce6b5b4e4ecdce797c8> /usr/lib/system/libsystem_sandbox.dylib
0x191ad0000 - 0x191ad3fff libsystem_stats.dylib arm64 <b84d5ea525fb37baa8c31a5b2b7c3abf> /usr/lib/system/libsystem_stats.dylib
0x191ad4000 - 0x191adbfff libunwind.dylib arm64 <e625b58c79813068b48c43ca6c406263> /usr/lib/system/libunwind.dylib
0x191adc000 - 0x191afffff libxpc.dylib arm64 <c8da27197ba23857be7494c6d41e4481> /usr/lib/system/libxpc.dylib
他にこの話題をとりあつかっているリンク
