Rails ERDの導入と実行

Last updated at Posted at 2014-08-24

パーフェクトRuby on Rails で紹介されていたので、使ってみました。
簡単に導入できるので、テーブル間の関係を素早く把握したい時には便利だと思いました。
公式サイト(http://rails-erd.rubyforge.org/)
がリンク切れになっており、実行オプションなどが参照できなくて困りましたが、ググってhelpを見たら何とかなりました。

準備

Ubuntu

$ sudo apt-get install graphviz

Gemfile
group :development, :test do
  gem 'rails-erd'
end

###Mac

$ brew install graphviz

Gemfile
group :development, :test do
  gem 'rails-erd', github: 'paulwittmann/rails-erd', branch: 'mavericks'
end

実行(デフォルト)

以下、実行すると、Railsのrootにerd.pdfが生成されます.

$ bundle exec erd

※ 以下だと失敗した

$ rake erd

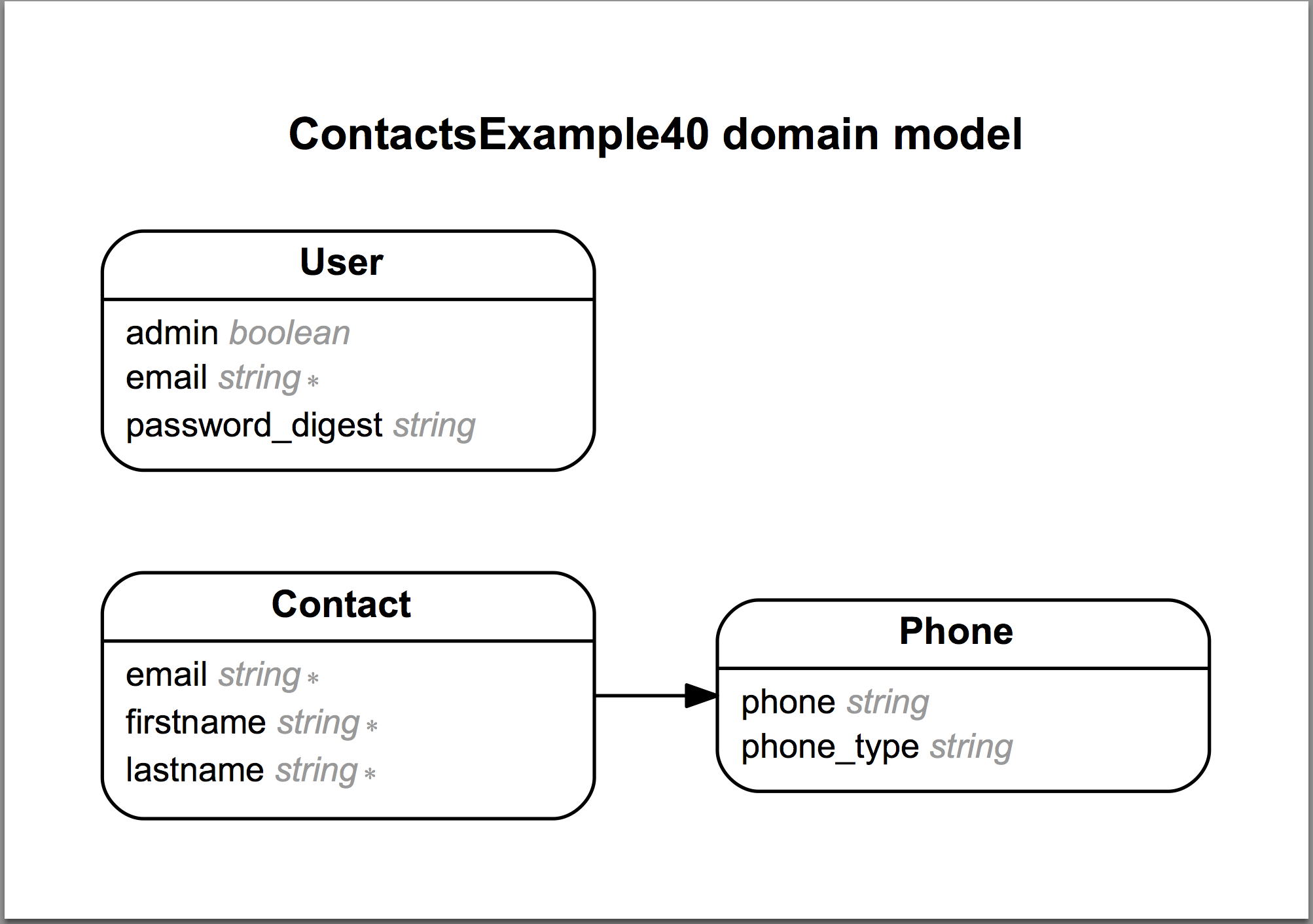

出力されるER図の例(デフォルト)


help

$ erd -h

Usage: erd [-v]


        --title=TITLE                Replace default diagram title with a custom one.
        --notation=STYLE             Diagram notation style, one of simple, bachman, uml or crowsfoot.
        --attributes=TYPE,...        Attribute groups to display: content, primary_keys, foreign_keys, timestamps and/or inheritance.
        --orientation=ORIENTATION    Orientation of diagram, either horizontal (default) or vertical.
        --inheritance                Display (single table) inheritance relationships.
        --polymorphism               Display polymorphic and abstract entities.
        --direct                     Omit indirect relationships (through other entities).
        --connected                  Omit entities without relationships.
        --only                       Filter to only include listed models in diagram.
        --exclude                    Filter to exclude listed models in diagram.


        --filename=FILENAME          Basename of the output diagram.
        --filetype=TYPE              Output file type. Available types depend on the diagram renderer.
        --no-markup                  Disable markup for enhanced compatibility of .dot output with other applications.
        --open                       Open the output file after it has been saved.


        --help                       Display this help message.
        --debug                      Show stack traces when an error occurs.
    -v, --version                    Show version and quit.

実行(オプション付き)

プライマリーキーやcreated_atなどのカラムも出力するようにしました。
pdfではなく、名前を指定したpngファイルで出力するようにしました。

$ erd --attributes=foreign_keys,primary_keys,content,timestamp --filename=erd_sample --filetype=png

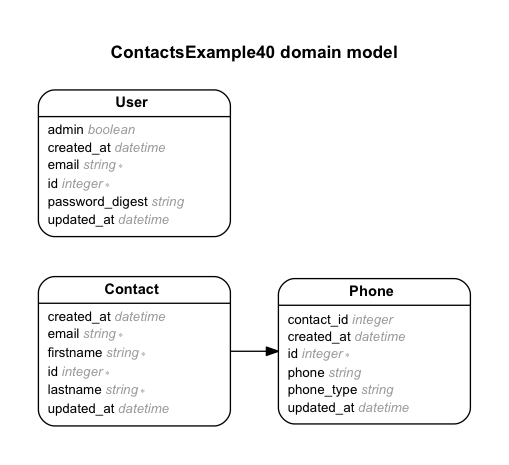

出力されるER図の例(オプション付き)


参考
