初めてWatson IoT Platformを使ってみよう、というかたのためのガイドです。
Watson IoT Platformを使ってみるでIoTアプリを準備しました。
#TI(テキサス・インスツルメンツ社)製のセンサータグCC2650を使います
- スマートフォンのAppStore(iPhone)/GooglePlay(Android）で「TI SensorTag」を検索してインストールします。
- TIアプリを起動したら、TIセンサータグCC2650の側面の正方形のスイッチを押します。反対側に長方形のスイッチがあるのでややこしいです。
- スマートフォンのアプリでセンタータグが認識されます。

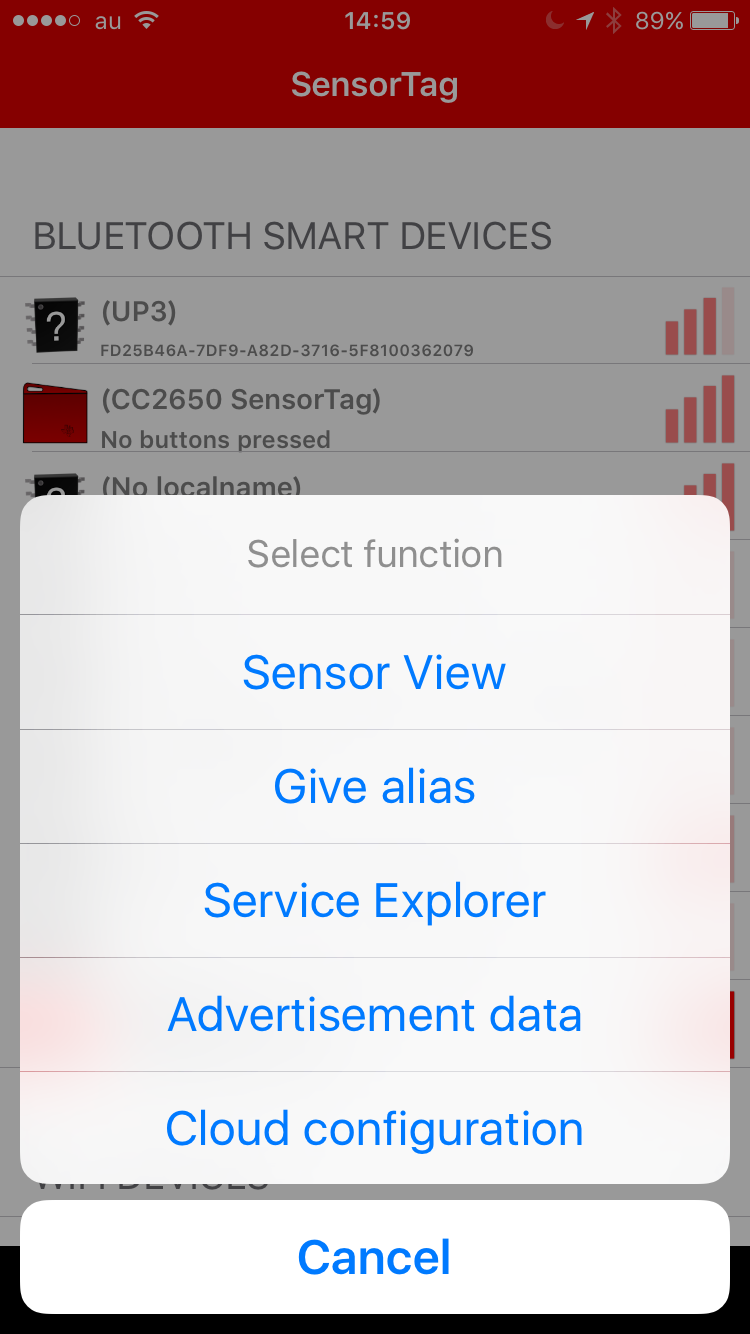

- 「Sensor View」を選択するとセンタータグとスマホの間でペアリングが行われ、センサーデータの送受信が始まります。
- 画面に表示されている赤いセンタータグのアイコンをクリックすると、センタータグの詳細情報が表示され、英数字１２桁のセンサータグのデバイスIDが表示されるので書きとめておきます。

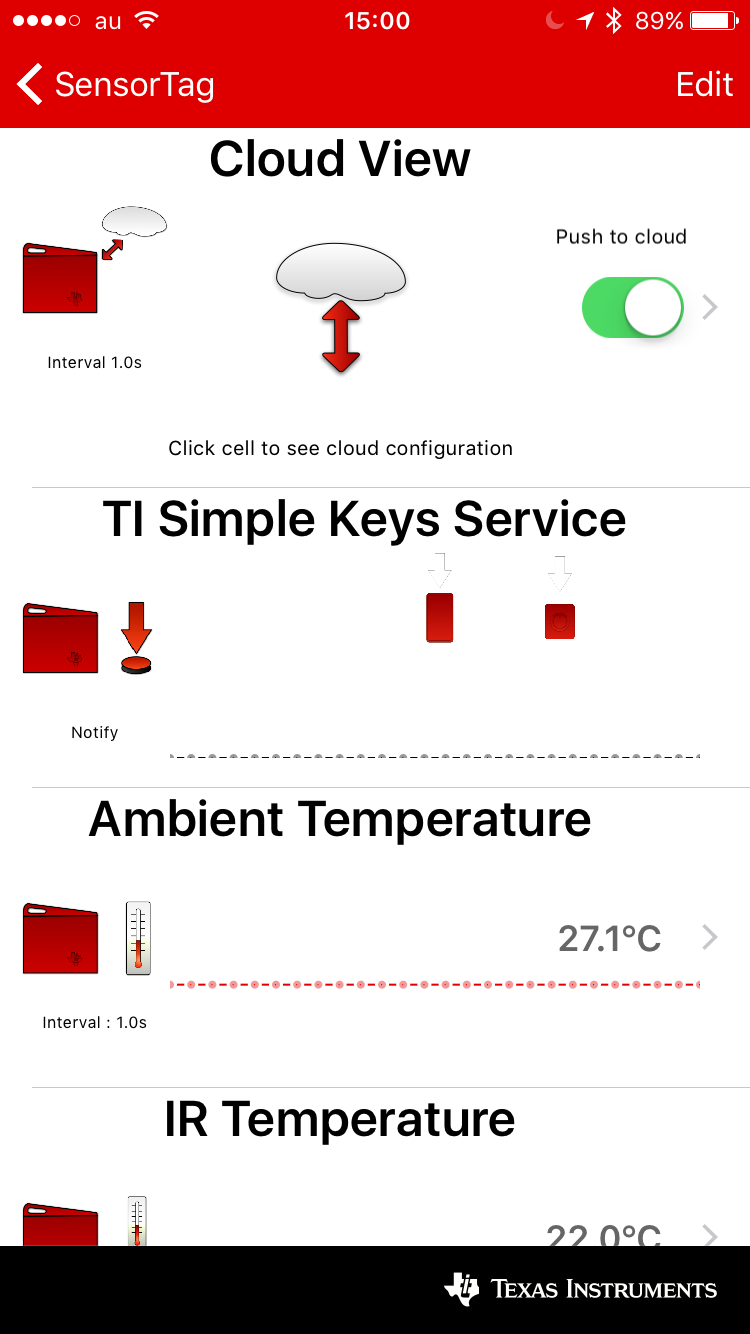

- 「Cloud View」の画面で右側のスイッチをスライドすると、雲との間で送信を表す赤い両方向矢印が点滅しはじめ、クラウドへのセンサーデータ送信が始まります。
- Node-REDのIoTアプリを開きます。
- IoTフローの左端の青い「IBM IoT App In」ノードをダブルクリックで開き、前項で書きとめた英数字１２桁のデバイスIDを指定し、「OK」で保存します。
- 画面右上の赤い「Deploy」ボタンを押してクラウド上のアプリへ反映します。
- 画面右側のDebugタブへセンサーからデータが表示されるのを確認します。
#各センサー値の取得
各センサーの値を個別に取得するフローを以下にご紹介します。
Watson IoT Platform - Node-RED - フローをコピーする方法を参照して以下のフローをコピペします。
- CC2650を使用している場合：
CC2650の各センサー値の取得
[{"id":"62c105ff.e299bc","type":"ibmiot in","z":"cd2fe299.783688","authentication":"quickstart","apiKey":"","inputType":"evt","deviceId":"","applicationId":"","deviceType":"+","eventType":"+","commandType":"","format":"json","name":"IBM IoT","service":"quickstart","allDevices":"","allApplications":"","allDeviceTypes":true,"allEvents":true,"allCommands":"","allFormats":"","x":90,"y":100,"wires":[["ff5782d8.fa553","8611b5b5.a4cb2","9ff0c10.66691c","3986183e.0aea7","54458336.5a6c0c","7b64f410.ac6b4c","e6de42a9.0908c","8c72b119.b6e92","efa89579.5bf078","b890d4f6.5070b8","b72b27af.93de08","fb66d420.3939a8","5bf6ccc5.bb3164","72f2afb3.3106f8"]]},{"id":"63fcd023.a218b8","type":"debug","z":"cd2fe299.783688","name":"","active":false,"console":"false","complete":"false","x":550,"y":100,"wires":[]},{"id":"ff5782d8.fa553","type":"function","z":"cd2fe299.783688","name":"ambientTempの取り出し","func":"return {payload:msg.payload.d.ambientTemp};","outputs":1,"noerr":0,"x":310,"y":100,"wires":[["63fcd023.a218b8"]]},{"id":"8611b5b5.a4cb2","type":"debug","z":"cd2fe299.783688","name":"","active":true,"console":"false","complete":"false","x":270,"y":60,"wires":[]},{"id":"9ff0c10.66691c","type":"function","z":"cd2fe299.783688","name":"humidityの取り出し","func":"return {payload:msg.payload.d.humidity};","outputs":1,"noerr":0,"x":290,"y":180,"wires":[["6ce832e8.02191c"]]},{"id":"6ce832e8.02191c","type":"debug","z":"cd2fe299.783688","name":"","active":false,"console":"false","complete":"false","x":550,"y":180,"wires":[]},{"id":"3986183e.0aea7","type":"function","z":"cd2fe299.783688","name":"objectTempの取り出し","func":"return {payload:msg.payload.d.objectTemp};","outputs":1,"noerr":0,"x":300,"y":140,"wires":[["385b70bf.f96fb"]]},{"id":"385b70bf.f96fb","type":"debug","z":"cd2fe299.783688","name":"","active":false,"console":"false","complete":"false","x":550,"y":140,"wires":[]},{"id":"54458336.5a6c0c","type":"function","z":"cd2fe299.783688","name":"magXの取り出し","func":"return {payload:msg.payload.d.magX};","outputs":1,"noerr":0,"x":290,"y":460,"wires":[["7786fd2f.62cac4"]]},{"id":"7786fd2f.62cac4","type":"debug","z":"cd2fe299.783688","name":"","active":false,"console":"false","complete":"false","x":550,"y":460,"wires":[]},{"id":"7b64f410.ac6b4c","type":"function","z":"cd2fe299.783688","name":"magYの取り出し","func":"return {payload:msg.payload.d.magY};","outputs":1,"noerr":0,"x":290,"y":500,"wires":[["5c39d403.bf06fc"]]},{"id":"5c39d403.bf06fc","type":"debug","z":"cd2fe299.783688","name":"","active":false,"console":"false","complete":"false","x":550,"y":500,"wires":[]},{"id":"e6de42a9.0908c","type":"function","z":"cd2fe299.783688","name":"magZの取り出し","func":"return {payload:msg.payload.d.magZ};","outputs":1,"noerr":0,"x":290,"y":540,"wires":[["8d213ed2.439ab8"]]},{"id":"8c72b119.b6e92","type":"function","z":"cd2fe299.783688","name":"gyroXの取り出し","func":"return {payload:msg.payload.d.gyroX};","outputs":1,"noerr":0,"x":290,"y":340,"wires":[["17ab6845.130b1"]]},{"id":"efa89579.5bf078","type":"function","z":"cd2fe299.783688","name":"gyroYの取り出し","func":"return {payload:msg.payload.d.gyroY};","outputs":1,"noerr":0,"x":290,"y":380,"wires":[["9af8e41d.b25008"]]},{"id":"b890d4f6.5070b8","type":"function","z":"cd2fe299.783688","name":"gyroZの取り出し","func":"return {payload:msg.payload.d.gyroZ};","outputs":1,"noerr":0,"x":290,"y":420,"wires":[["9d71753e.4da7b8"]]},{"id":"8d213ed2.439ab8","type":"debug","z":"cd2fe299.783688","name":"","active":false,"console":"false","complete":"false","x":550,"y":540,"wires":[]},{"id":"395a3f82.af6698","type":"debug","z":"cd2fe299.783688","name":"","active":true,"console":"false","complete":"false","x":550,"y":580,"wires":[]},{"id":"17ab6845.130b1","type":"debug","z":"cd2fe299.783688","name":"","active":false,"console":"false","complete":"false","x":550,"y":340,"wires":[]},{"id":"9af8e41d.b25008","type":"debug","z":"cd2fe299.783688","name":"","active":false,"console":"false","complete":"false","x":550,"y":380,"wires":[]},{"id":"9d71753e.4da7b8","type":"debug","z":"cd2fe299.783688","name":"","active":false,"console":"false","complete":"false","x":550,"y":420,"wires":[]},{"id":"b72b27af.93de08","type":"function","z":"cd2fe299.783688","name":"accelXの取り出し","func":"return {payload:msg.payload.d.accelX};","outputs":1,"noerr":0,"x":290,"y":220,"wires":[["91290eed.00e108"]]},{"id":"fb66d420.3939a8","type":"function","z":"cd2fe299.783688","name":"accelYの取り出し","func":"return {payload:msg.payload.d.accelY};","outputs":1,"noerr":0,"x":290,"y":260,"wires":[["d397e2b0.b7f968"]]},{"id":"5bf6ccc5.bb3164","type":"function","z":"cd2fe299.783688","name":"accelZの取り出し","func":"return {payload:msg.payload.d.accelZ};","outputs":1,"noerr":0,"x":290,"y":300,"wires":[["eb95e5dc.73e998"]]},{"id":"91290eed.00e108","type":"debug","z":"cd2fe299.783688","name":"","active":true,"console":"false","complete":"false","x":550,"y":220,"wires":[]},{"id":"d397e2b0.b7f968","type":"debug","z":"cd2fe299.783688","name":"","active":false,"console":"false","complete":"false","x":550,"y":260,"wires":[]},{"id":"eb95e5dc.73e998","type":"debug","z":"cd2fe299.783688","name":"","active":false,"console":"false","complete":"false","x":550,"y":300,"wires":[]},{"id":"72f2afb3.3106f8","type":"function","z":"cd2fe299.783688","name":"lightの取り出し","func":"return {payload:msg.payload.d.light};","outputs":1,"noerr":0,"x":280,"y":580,"wires":[["395a3f82.af6698"]]}]
- CC2541を使用している場合：
CC2541の各センサー値の取得
[{"id":"efecb9fb.a923","type":"ibmiot in","z":"d6f399d.2f1f6e8","authentication":"quickstart","apiKey":"","inputType":"evt","deviceId":"","applicationId":"","deviceType":"+","eventType":"+","commandType":"","format":"json","name":"IBM IoT","service":"quickstart","allDevices":"","allApplications":"","allDeviceTypes":true,"allEvents":true,"allCommands":"","allFormats":"","x":160,"y":160,"wires":[["a1d0a95d.5e375","c56c81c7.93d69","776b5a1f.da39bc","736747ee.fe43e","be4864c4.c836e8","59a5a99a.c4445","1e339c98.6881c3","a1e0caf5.4efb4","b56268ed.93602","ae22c60d.3de468","61a6cbb4.4cafdc","a78f029a.e3b51"]]},{"id":"cce17e24.1ffaf8","type":"debug","z":"d6f399d.2f1f6e8","name":"","active":false,"console":"false","complete":"false","x":610,"y":160,"wires":[]},{"id":"a1d0a95d.5e375","type":"function","z":"d6f399d.2f1f6e8","name":"ambientTempの取り出し","func":"return {payload:msg.payload.d.ambientTemp};","outputs":1,"noerr":0,"x":390,"y":160,"wires":[["cce17e24.1ffaf8"]]},{"id":"c56c81c7.93d69","type":"debug","z":"d6f399d.2f1f6e8","name":"","active":true,"console":"false","complete":"false","x":350,"y":120,"wires":[]},{"id":"776b5a1f.da39bc","type":"function","z":"d6f399d.2f1f6e8","name":"humidityの取り出し","func":"return {payload:msg.payload.d.humidity};","outputs":1,"noerr":0,"x":370,"y":240,"wires":[["dcf2ca89.6ea9b"]]},{"id":"dcf2ca89.6ea9b","type":"debug","z":"d6f399d.2f1f6e8","name":"","active":false,"console":"false","complete":"false","x":610,"y":240,"wires":[]},{"id":"736747ee.fe43e","type":"function","z":"d6f399d.2f1f6e8","name":"objectTempの取り出し","func":"return {payload:msg.payload.d.objectTemp};","outputs":1,"noerr":0,"x":380,"y":200,"wires":[["5a4361c6.14155"]]},{"id":"5a4361c6.14155","type":"debug","z":"d6f399d.2f1f6e8","name":"","active":false,"console":"false","complete":"false","x":610,"y":200,"wires":[]},{"id":"be4864c4.c836e8","type":"function","z":"d6f399d.2f1f6e8","name":"magXの取り出し","func":"return {payload:msg.payload.d.magX};","outputs":1,"noerr":0,"x":370,"y":280,"wires":[["7e09cfd7.05aa18"]]},{"id":"7e09cfd7.05aa18","type":"debug","z":"d6f399d.2f1f6e8","name":"","active":false,"console":"false","complete":"false","x":610,"y":280,"wires":[]},{"id":"59a5a99a.c4445","type":"function","z":"d6f399d.2f1f6e8","name":"magYの取り出し","func":"return {payload:msg.payload.d.magY};","outputs":1,"noerr":0,"x":370,"y":320,"wires":[["a4cadab1.893428"]]},{"id":"a4cadab1.893428","type":"debug","z":"d6f399d.2f1f6e8","name":"","active":false,"console":"false","complete":"false","x":610,"y":320,"wires":[]},{"id":"1e339c98.6881c3","type":"function","z":"d6f399d.2f1f6e8","name":"magZの取り出し","func":"return {payload:msg.payload.d.magZ};","outputs":1,"noerr":0,"x":370,"y":360,"wires":[["1b222dc4.7ce3ba"]]},{"id":"a1e0caf5.4efb4","type":"function","z":"d6f399d.2f1f6e8","name":"pressureの取り出し","func":"return {payload:msg.payload.d.pressure};","outputs":1,"noerr":0,"x":380,"y":400,"wires":[["ad561f34.8719c8"]]},{"id":"b56268ed.93602","type":"function","z":"d6f399d.2f1f6e8","name":"altitudeの取り出し","func":"return {payload:msg.payload.d.altitude};","outputs":1,"noerr":0,"x":370,"y":440,"wires":[["710ced68.3f34dc"]]},{"id":"ae22c60d.3de468","type":"function","z":"d6f399d.2f1f6e8","name":"gyroXの取り出し","func":"return {payload:msg.payload.d.gyroX};","outputs":1,"noerr":0,"x":370,"y":480,"wires":[["e98c1ebb.a2971"]]},{"id":"61a6cbb4.4cafdc","type":"function","z":"d6f399d.2f1f6e8","name":"gyroYの取り出し","func":"return {payload:msg.payload.d.gyroY};","outputs":1,"noerr":0,"x":370,"y":520,"wires":[["cc1dee06.0de39"]]},{"id":"a78f029a.e3b51","type":"function","z":"d6f399d.2f1f6e8","name":"gyroZの取り出し","func":"return {payload:msg.payload.d.gyroZ};","outputs":1,"noerr":0,"x":370,"y":560,"wires":[["fff06bf6.3b5e28"]]},{"id":"1b222dc4.7ce3ba","type":"debug","z":"d6f399d.2f1f6e8","name":"","active":false,"console":"false","complete":"false","x":610,"y":360,"wires":[]},{"id":"ad561f34.8719c8","type":"debug","z":"d6f399d.2f1f6e8","name":"","active":false,"console":"false","complete":"false","x":610,"y":400,"wires":[]},{"id":"710ced68.3f34dc","type":"debug","z":"d6f399d.2f1f6e8","name":"","active":false,"console":"false","complete":"false","x":610,"y":440,"wires":[]},{"id":"e98c1ebb.a2971","type":"debug","z":"d6f399d.2f1f6e8","name":"","active":true,"console":"false","complete":"false","x":610,"y":480,"wires":[]},{"id":"cc1dee06.0de39","type":"debug","z":"d6f399d.2f1f6e8","name":"","active":false,"console":"false","complete":"false","x":610,"y":520,"wires":[]},{"id":"fff06bf6.3b5e28","type":"debug","z":"d6f399d.2f1f6e8","name":"","active":false,"console":"false","complete":"false","x":610,"y":560,"wires":[]}]
