動作環境
Windows 7 Pro (32bit)
Microsoft Visual Studio 2017 Community
RelativeSource={RelativeSource Self}
という書き方にまだ慣れていない。
参考
実装

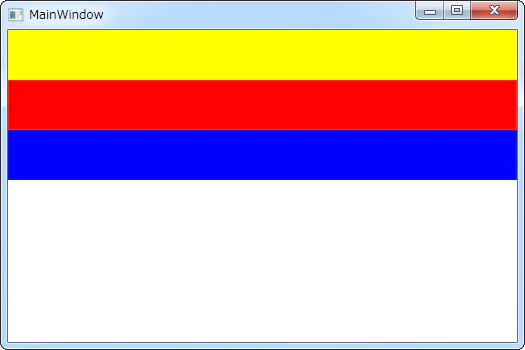

x:Nameに色を指定して、その文字列に基づいて色をつける実装をしてみた。
Implicit Key(x:Key未指定)でStyle指定。
MainWindow.xaml
<Window x:Class="_170615_t1700_relativeSource.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:local="clr-namespace:_170615_t1700_relativeSource"
mc:Ignorable="d"
Title="MainWindow" Height="350" Width="525">
<Window.Resources>
<Style TargetType="Rectangle">
<Setter Property="Fill"
Value="{Binding Name, RelativeSource={RelativeSource Self}}"/>
</Style>
</Window.Resources>
<Grid>
<StackPanel>
<Rectangle x:Name="Yellow" Height="50"/>
<Rectangle x:Name="Red" Height="50"/>
<Rectangle x:Name="Blue" Height="50"/>
</StackPanel>
</Grid>
</Window>
将来、どういう場面でRelativeSource={RelativeSource Self}
を必要とするかは今のところ不明。
